USED A. O. SMITH CORP TJV-120M 000

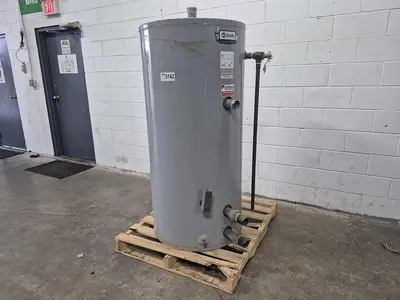

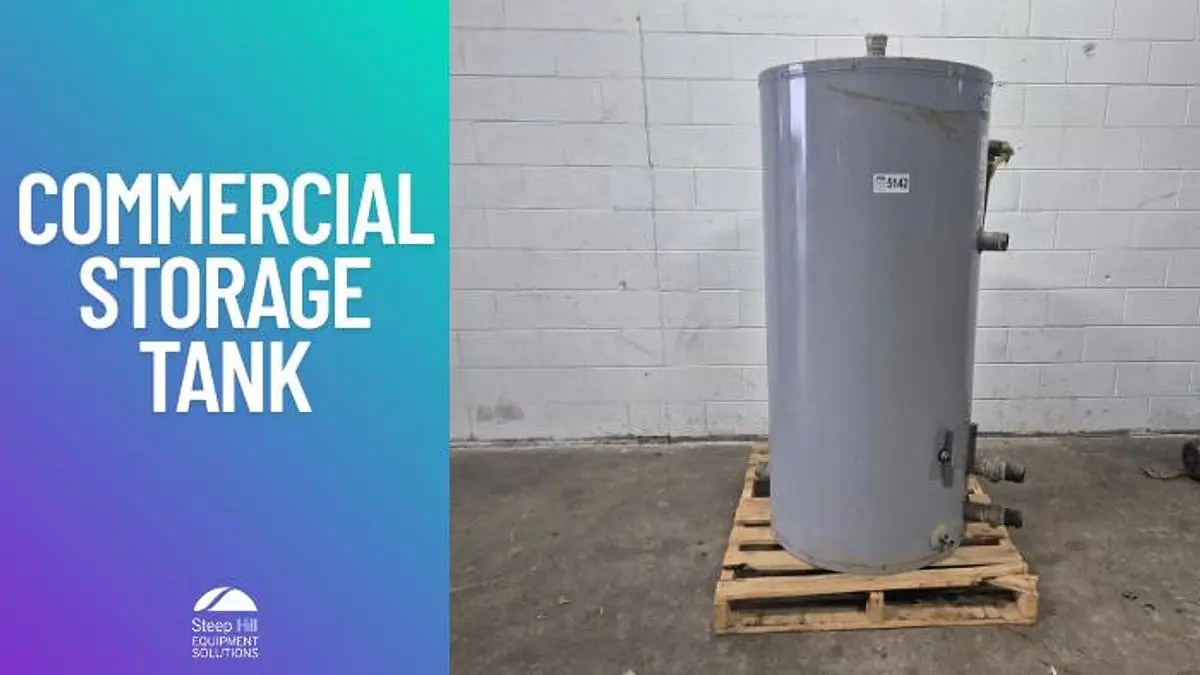

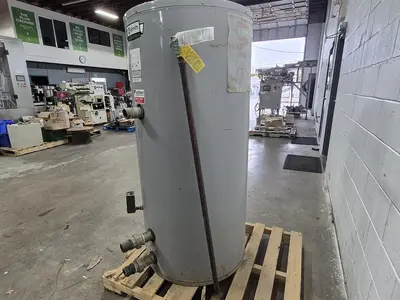

A.O. Smith Jacketed Vertical Commercial Storage Tank
The A.O. Smith TJV-120M is a commercial-grade storage tank used to hold and maintain a large reserve of potable (drinking) hot water. Because it does not have its own heating element, it must be paired with an external heat source to function.
Specs:

Capacity: 119 Gallons
Dimensions: 62 inches in length (height) and 29-3/8 inches in diameter
Working Pressure: Rated for a maximum of 160 psi
Maximum Temperature: Suitable for potable water storage up to 180°F
Construction: Heavy-gauge steel jacket with a baked enamel finish
Insulation: Features high-density foam insulation to reduce standby heat loss, meeting ASHRAE/IESNA 90.1 standards
Glass-Lined Tank: Uses an alkaline borosilicate composition fused to steel at 1600°F for corrosion protection
Anti-Corrosion: Equipped with magnesium anode rods to extend the life of the tank

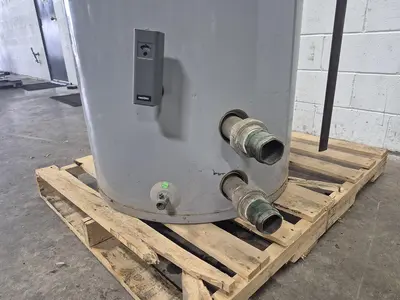

Openings: Includes threaded openings for a thermometer, relief valve, recirculation lines (2-inch), tankstat, and drain valve
Common Environments Used In: Restaurants & Hotels, Industrial Facilities and Large Buildings

Location Code: CC6
* Capacity: 119 Gallons
