| Swing | 21.65" | 549.91 mm |
| Machining Length | 21.65" | 549.91 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11.02" | 279.91 mm |
| Tailstock | Yes | Yes |

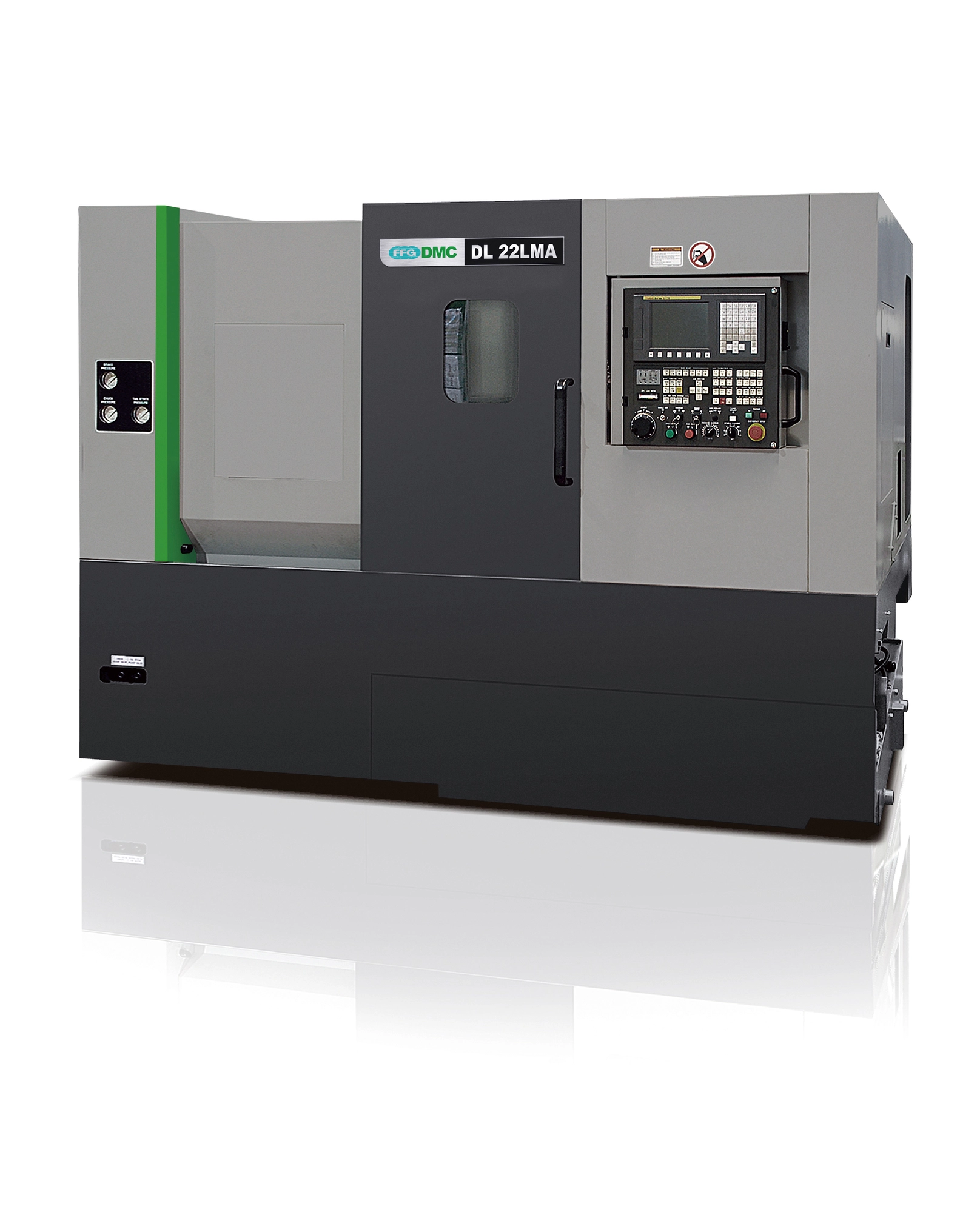

DL 22LMA, Fanuc 0i-TF, 10.4" LCD, Manual Guide I, 4000RPM, 11/15kw (20HP), 8" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6, X/Z Box Way, Manual Tailstock, Programmable Quill, Chip Conveyor, Bar Feeder Interface, Tool Presetter (Manual Pull Down Type), Parts Catcher, 4 Extra M-Codes, Coolant Flushing Gun, Air Gun, Oil Skimmer
