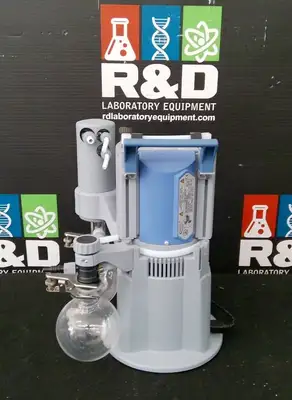

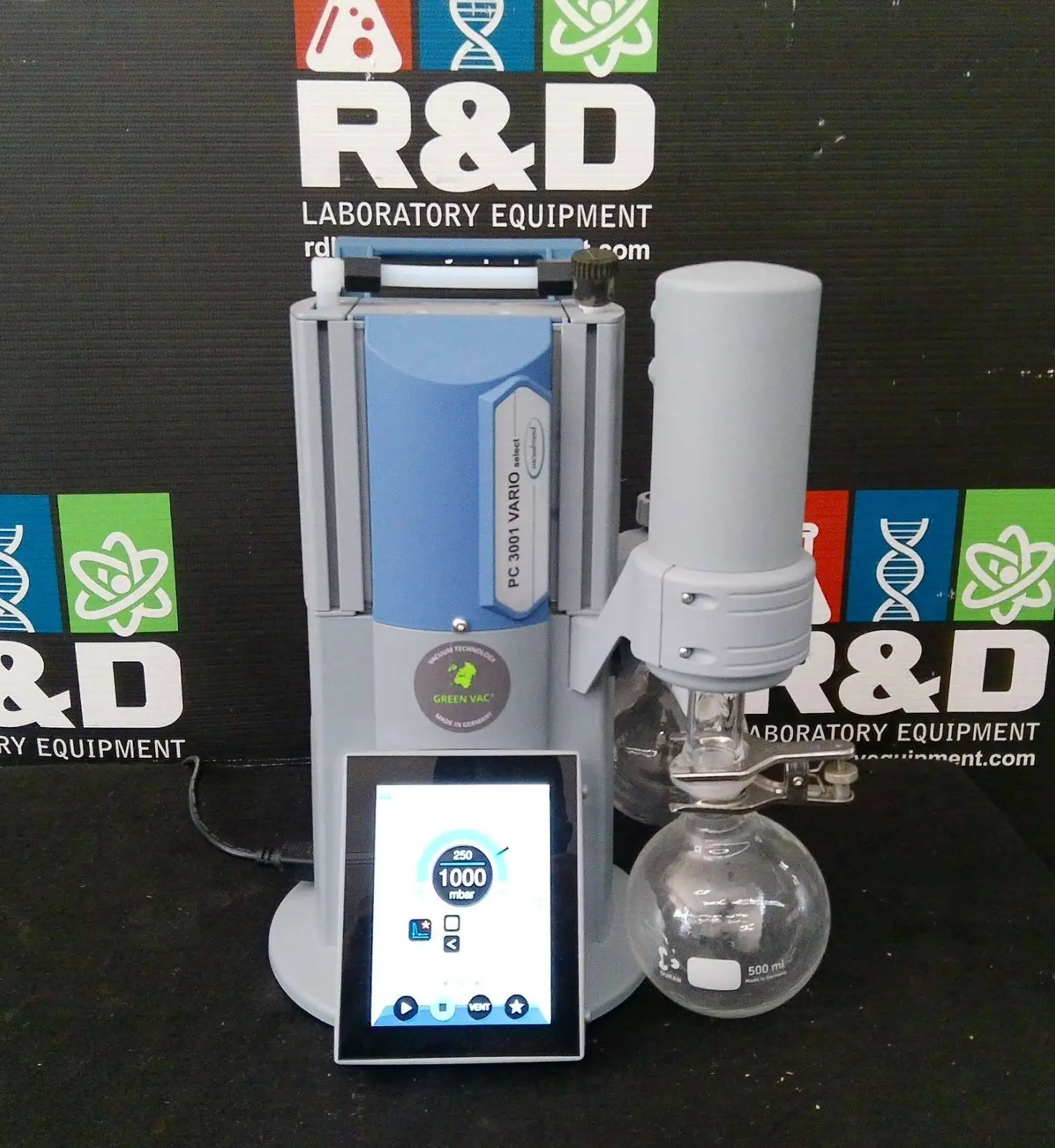

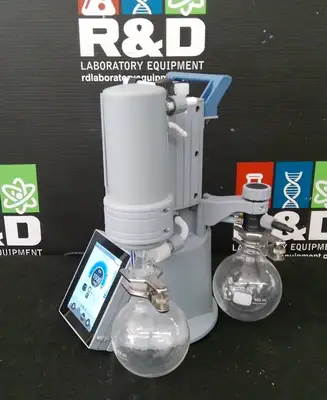

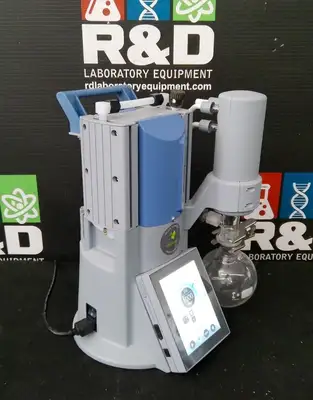

Vacuubrand PC3001 Vario Select Pumping System (2021)

Vacuubrand PC3001 Vario Select Pumping System (2021)

The Vacuubrand PC 3001 VARIO Pro Pumping System optimizes vacuum conditions automatically by precisely and continuously adjusting the diaphragm pump’s motor speed. The PC 3001 is ideal for vacuum applications with high boiling point solvents. The inlet separator, made of glass with a protective coating, prevents droplets and particles from entering the pump.
The Vacuubrand PC 3001 VARIO Pro Pumping System is designed to deliver precise vacuum control and exceptional pumping speed across a wide range of laboratory processes, from routine evaporation and distillation to highly sensitive applications in chemistry, biology, and materials science.
Features:
Variable speed pumping: Equipped with a powerful VARIO diaphragm pump, this system offers variable speed control to precisely adjust vacuum levels according to specific process requirements. This ensures gentle yet efficient evacuation of gases and vapors, minimizing sample degradation and maximizing process efficiency.
Integrated vacuum control: The advanced VARIO® control technology enables automatic adjustment of pumping speed to maintain a stable vacuum level, even in the presence of changing process conditions or vapor loads. This ensures consistent performance and reproducible results, making it ideal for applications that require precise vacuum control.
User-friendly interface: The intuitive touchscreen interface allows for easy monitoring and control of vacuum parameters, with customizable settings to suit individual preferences and process requirements. Real-time feedback and status indicators provide instant visibility into system performance, ensuring hassle-free operation and peace of mind.
Compact and quiet operation: The compact design and low-noise operation of the Vacuubrand PC 3001 VARIO Pro Pumping System make it suitable for use in both benchtop and crowded laboratory environments. Its robust construction and durable components ensure reliable performance and long-term durability, even under continuous operation.
Comprehensive safety features: Built-in safety features, including overload protection, overpressure shutdown, and automatic pump-down control, safeguard both the system and the user against potential hazards, ensuring safe and worry-free operation in any laboratory setting.

Specifications:

Max. Pressure
1.1 bar

Ultimate Vacuum
2 mbar

Max. Temperature
40°C

Min. Temperature
10°C

Max Flow Rate
2m³/h

Enclosure Rating
IP 20

Power
100-120/200-230V, 50/60Hz, 0.16W

Noise Level
42dBA

Temperature Storage
-10°C to 60°C

Weight
18 lbs. (8.2 kg)

Pump Type
Vario Select Vacuum System

Applications
Self-regulating vacuum control for complex evaporations

Dimensions
12″ W x 12.1″ D x 15.7″ H inches (30.3 x 30.6 x 40 cm)
