| Swing | 34" | 863.6 mm |
| Centers | 118.1" | 2,999.7 mm |
| Spindle Bore | 10" | 254 mm |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 25.1" | 637.54 mm |
| Dimensions | 241L x 87W x 60H | 241L x 87W x 60H |
| Weight | 24,200 Lbs | 24,200 Lbs |
Specifications (Subject to buyer verification):
Swing over bed: 34”
Swing over cross slide: 25.10”
Center Height: 17.71”
Spindle Nose Camlock: A1-15
Hole through spindle: 10”
Distance between centers: 118.1”

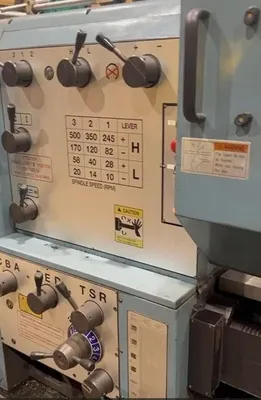

Spindle speed range (12): 10-500 RPM
Longitudinal feed range (70): 0.0043 - .249 IPR
Cross slide travel: 21.65”
Compound travel: 14.17”
Inch threading range (55): 0.25 – 30 TPI
Metric threading range (68): 1 – 120mm
Diametral pitch thread: 0.25-30 MP
Longitudinal feeds: 0.05-6.38 mm/rev
Cross feeds: 0.025-3.04 mm/rev
Width of bed: 22”
Tailstock spindle diameter: 4.90”
Tailstock spindle taper: #6 MT
Tailstock spindle travel: 9.84”
Approximate floor space: 241”L x 87”W x 60”H
Approximate weight: 24,200 Lbs
Equipped with (Subject to buyer verification):

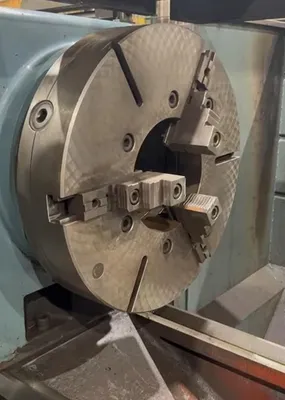

3- jaw chucks 32" OD
4 - Jaw Chucks (rear mounted) 32" OD
Follow and steady rest
Quick Change Tool post and tooling
Tailstock
Inch Metric Threading
Thread Dial Indicator
Feed on tool post slide
