| X Axis | 40.15" | 1,019.8 mm |
| Y Axis | 24.01" | 609.85 mm |
| Z Axis | 24.01" | 609.85 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 47.24" | 1,199.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MF Series CNC Control) | CNC (Fanuc Oi-MF Series CNC Control) |
| Dimensions | 110″ x 99″ x 120″ High Approx. | 110″ x 99″ x 120″ High Approx. |
| Weight | 16,071 lbs Approx. | 16,071 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

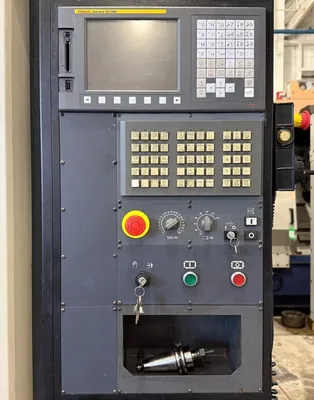

Fanuc Oi-MF Series CNC Control
Linear Ways Construction
PCMCIA Card Slot
USB Port
Rigid Tapping

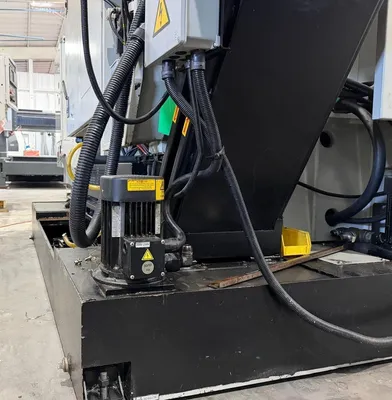

Coolant System

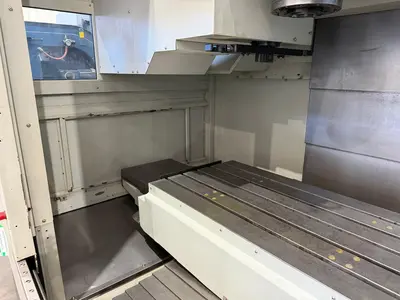

Table:
Length: 47.24″
Width: 23.62″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 1102 lbs
Travels:
X-Axis: 40.15″
Y-Axis: 24.01″
Z-Axis: 24.01″
Rapid Traverse Rates X & Y Axis: 1260 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″
Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.0″ – 4.92″
Max Tool Length: 11.02″
Tool Changing Time (Chip to Chip): 4.2 Seconds

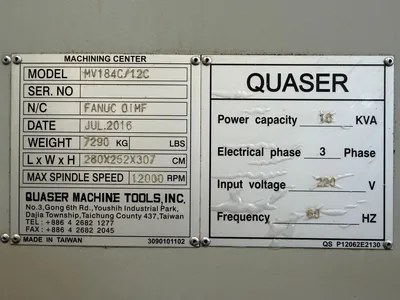

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 16 kva / 3-Phase
Overall Dimensions: 110″ x 99″ x 120″ High Approx.
Weight: 16,071 lbs Approx.
12000 RPM High Speed Spindle
30 Station Side Mounted Automatic Tool changer
Through Spindle Coolant

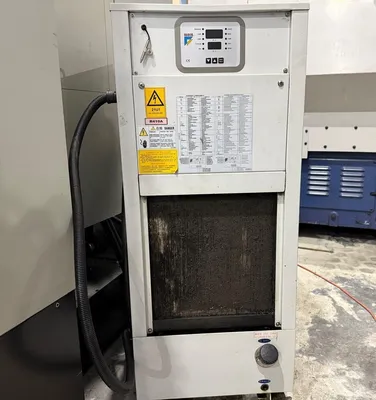

Spindle Chiller Unit
Chip Conveyor
