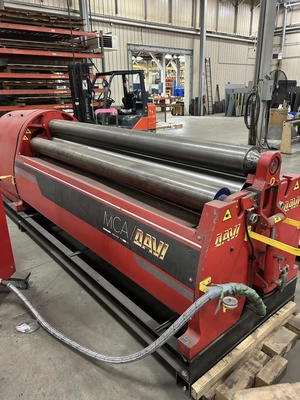

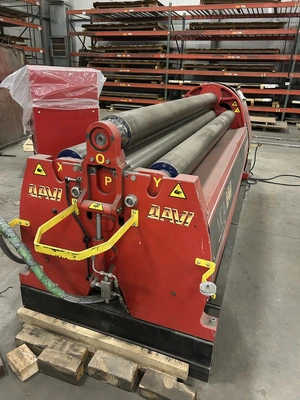

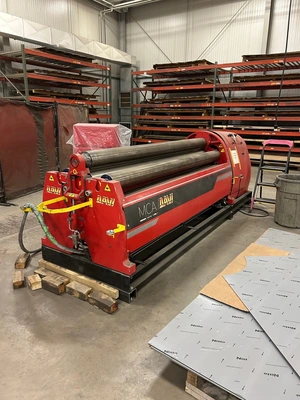

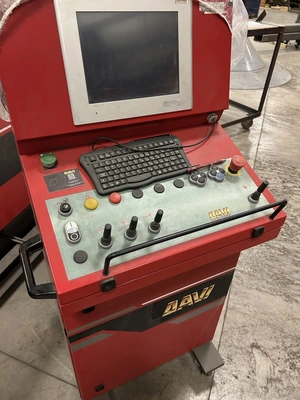

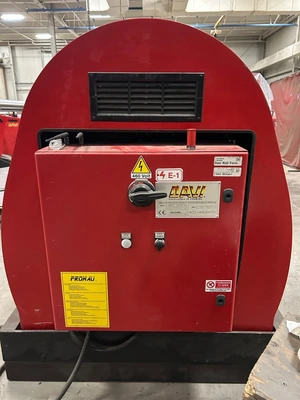

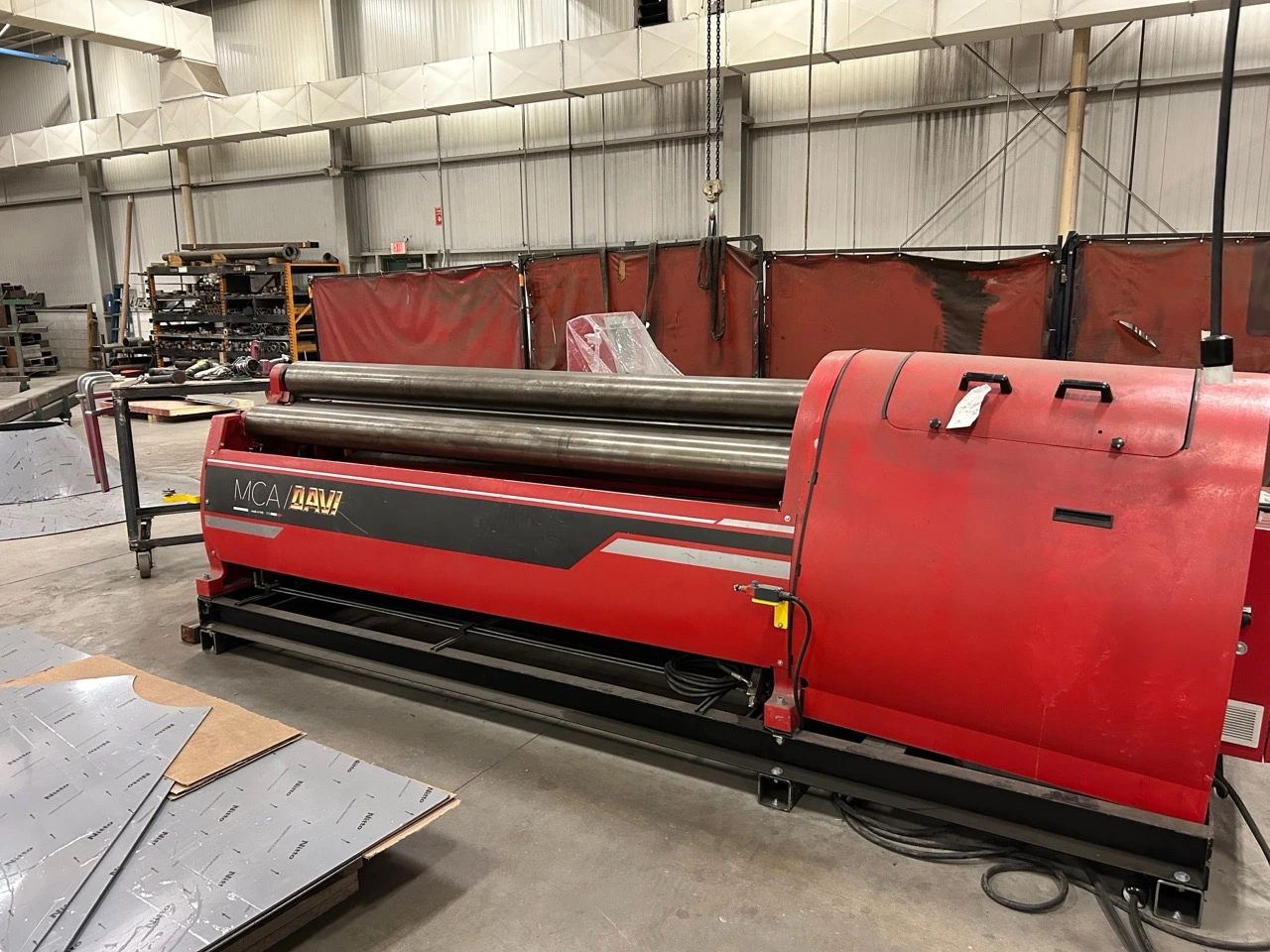

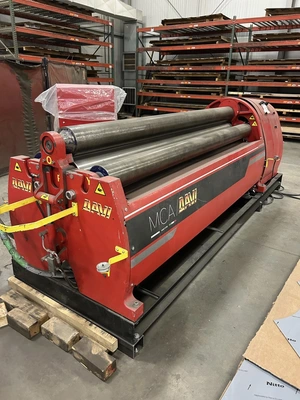

USED 2018 DAVI MCA 2522

Capacity: 0.4” x ‘

Length of Rolls: 100″
Max Thickness: 0.39″
# of Rolls: 4
Top Roll Diameter: 6.5″
Bottom Roll Diameter: 7.9″
Side Rolls Diameter: 6.3″
Rolling Speed: 19.5′ / Min
Machine Weight: 19,500 LBS
Equipped With:
Rolls crowning
Rolls guiding Friction-Free, Mill-Scale-Proof, Lubrication-less planetary
guides
Rolls position Linear transducer with an accuracy of 0.004″
Servo-Tronic©(DAVI patent)
Rolls rotation drive (DAVI Exclusive) Both clamping rolls are driven in rotation as standard feature
Transmission drive
Wiring system (DAVI Exclusive)
Rolls tilting for cone bending
