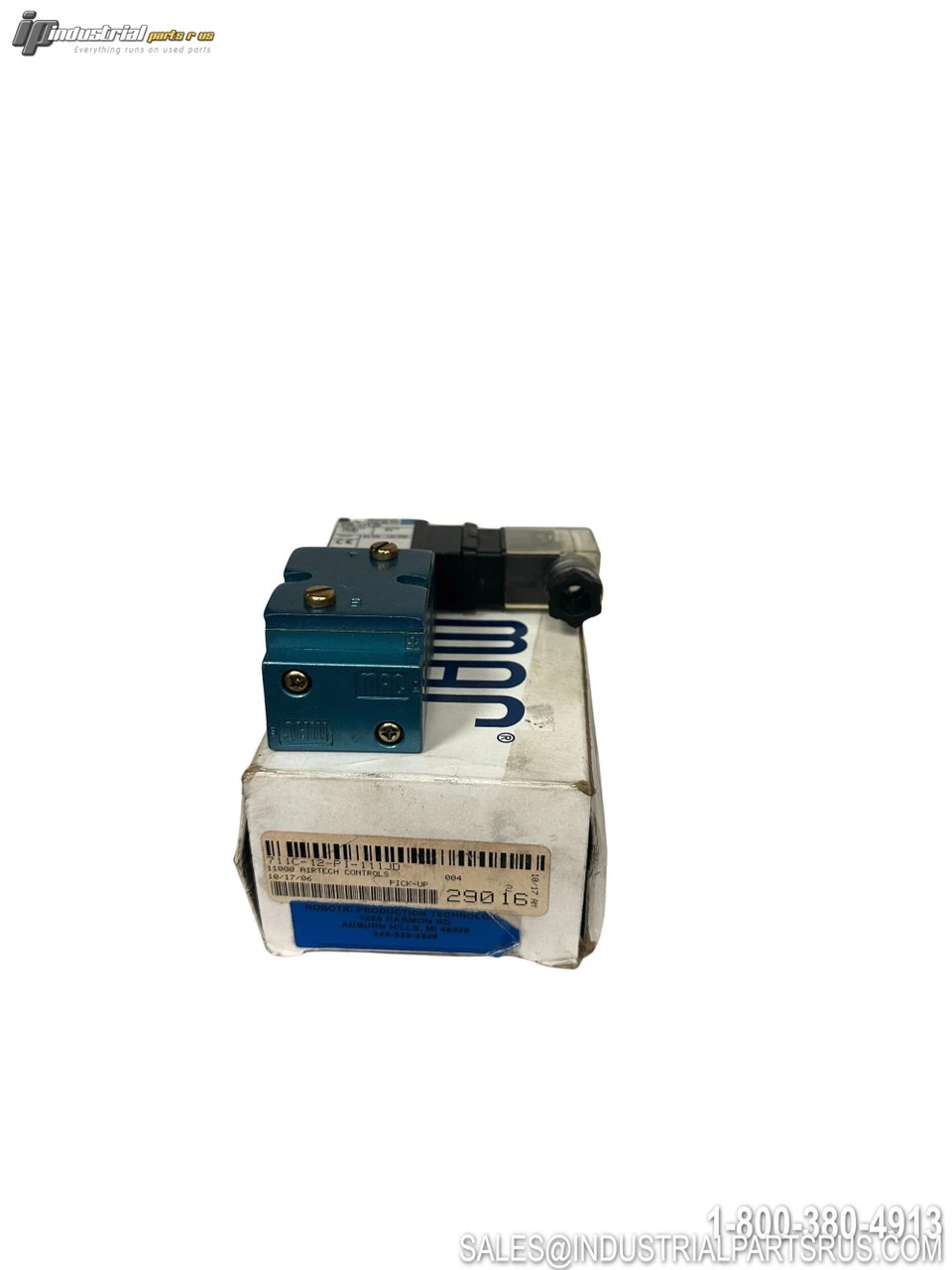

USED MAC 711C-12-PI-111JD

The MAC 711C-12-PI-111JD is a professional-grade pneumatic solenoid valve from MAC Valves' 700 series. This 4-way, 2-position, single operator valve features internal pilot air operation and is designed for reliable industrial automation applications. The valve includes a non-locking recessed manual operator and rectangular connector with integrated indicator light.
Specification
Value
Brand
MAC
Model/Part Number
711C-12-PI-111JD
Type
Solenoid Valve
Series
700
Valve Configuration
4-Way, 2-Position
Operator Type
Single Operator
Port Size
1/4 Inch NPTF
Pilot Air
Internal
Coil Voltage
120VAC
Frequency
50/60 Hz
Power Consumption
6.8W
Pressure Range
30-150 PSI
Flow Coefficient (Cv)
0.70
Manual Operator
Non-Locking Recessed
Electrical Connection
Rectangular Connector with Light
Connector Type
DIN 43650
Operation
Monostable (Spring Return)
Valve Type
Spool Valve
Mounting
Individual In-line Installation
Dimensions
97mm H x 42mm W x 117mm D
We warranty all items for 30 days from date of purchase.

SKU: AI0843
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Mac
Part Number: 711C-12-PI-111JD
Shelf: K-47
Model: 711C-12-PI-111JD
MPN: 711C-12-PI-111JD
Type: Solenoid Valve
