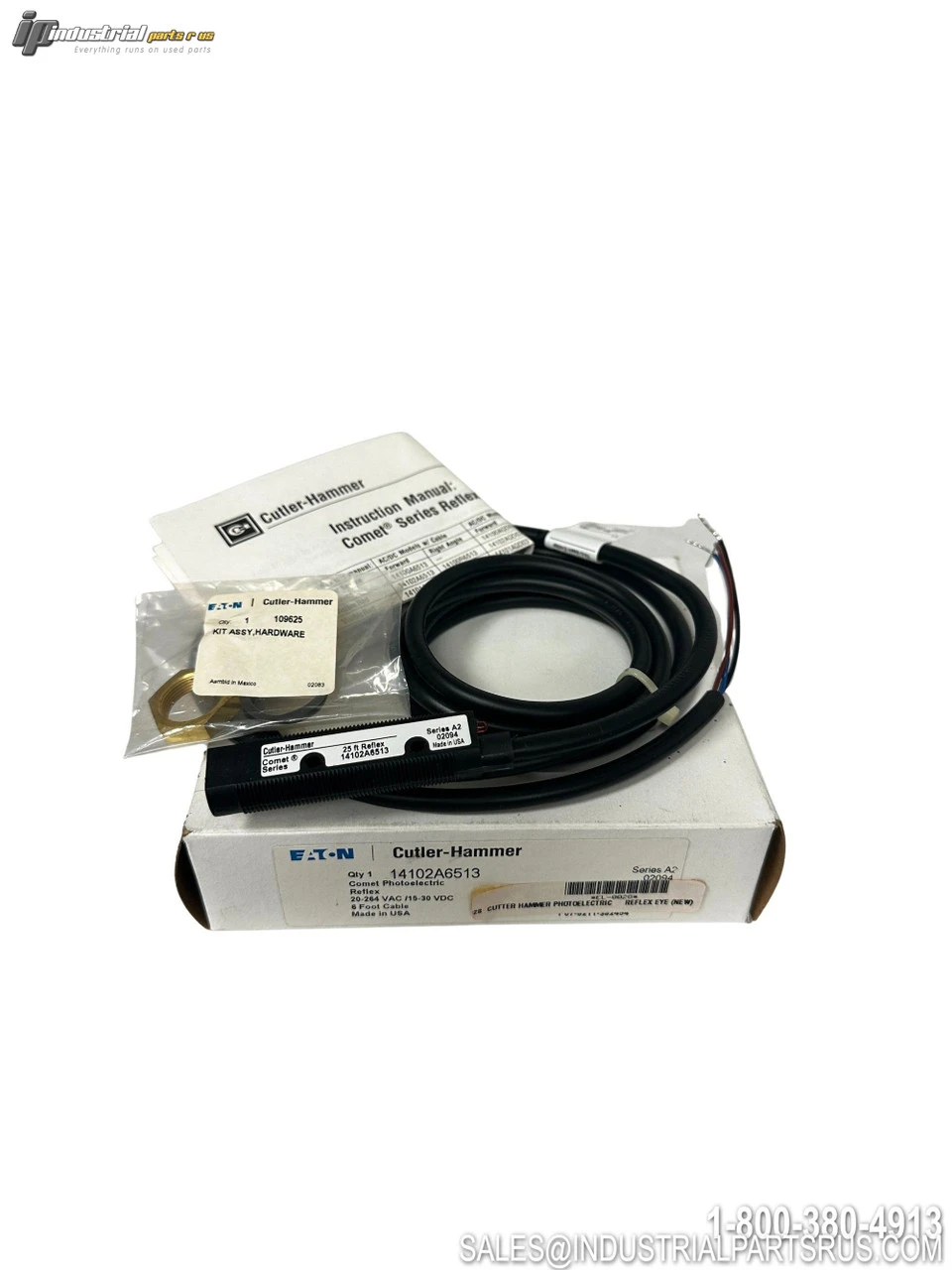

NEW CUTLER-HAMMER 14102A6513

The Cutler-Hammer 14102A6513 is a COMET series retroreflective photoelectric sensor designed for reliable object detection in industrial automation applications. This 18mm tubular sensor features selectable Light/Dark operation and provides versatile mounting options with its threaded body and flat sides.
Specification
Value
Brand
Cutler-Hammer
Model/Part Number
14102A6513
Series
COMET
Sensor Type
Retroreflective
Sensing Range
0.1 in to 80 ft / 25 ft
Input Voltage
20-264 VAC or 10-50 VDC
Output Type
NPN, PNP, or VMOS
Wiring
2, 3, or 4 Wire
Housing Diameter
18mm
Mounting Type
Threaded with flat sides
Housing Material
Structural polyurethane foam
Lens Material
Polycarbonate
Operating Temperature
-40°C to 70°C (-40°F to 158°F)
NEMA Rating
1, 2, 3, 4, 4X, 6, 12, 13
Certifications
UL, C-UL Listed, CE Approved
We warranty all items for 30 days from date of purchase.

SKU: AI0827
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: NPN
Sensor Type: Retroreflective
Manufacturer: Cutler-Hammer
Enclosure Type: NEMA 1, 2, 3, 4, 4X, 6, 12, 13
Part Number: 14102A6513
Shelf: K-40
Model: 14102A6513
MPN: 14102A6513
Type: Photoelectric Sensor
