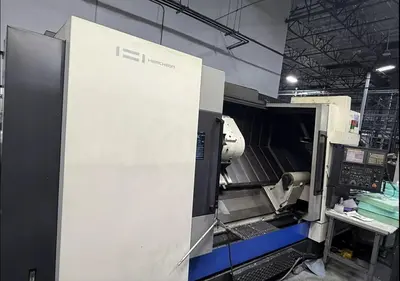

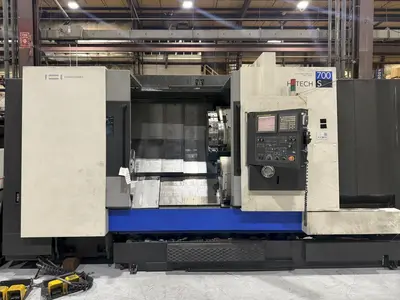

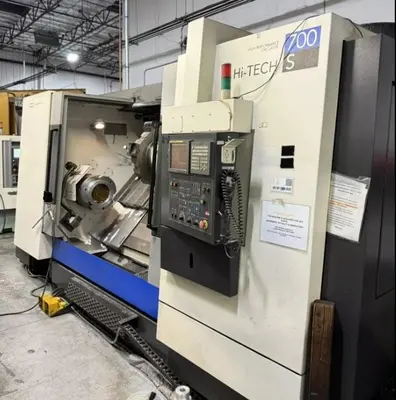

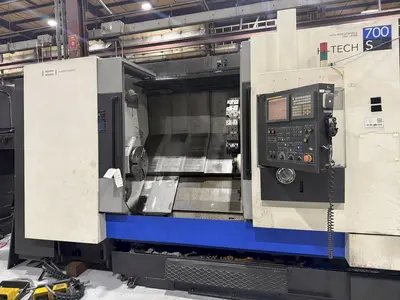

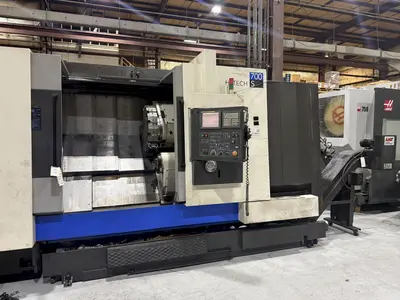

USED 2008 HWACHEON HI-TECH 700S

Fanuc 18i-TB CNC Control

Tool Presetter

Programmable Tailstock
The Hwacheon Hi-Tech 700s is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

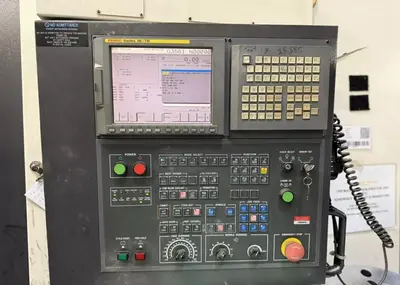

Control Type: Fanuc 18i-TB
# Axis: 2
Swing: 35.43
Turning Diameter: 27.56
Center Distance: 78.7

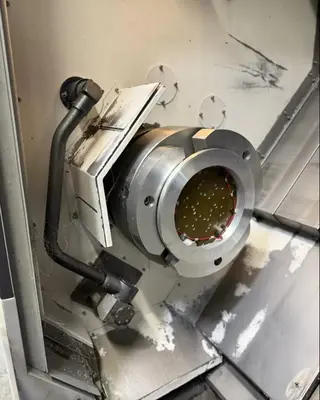

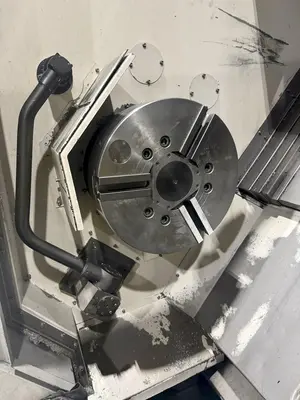

Chuck Size: 15"
Bar Capacity: 4.56"
X-Axis Travel: 15.16"
Z-Axis Travel: 81.5"
Spindle Nose: A2-11
Spindle Speed: 1,800 rpm
Main Motor: 40 hp

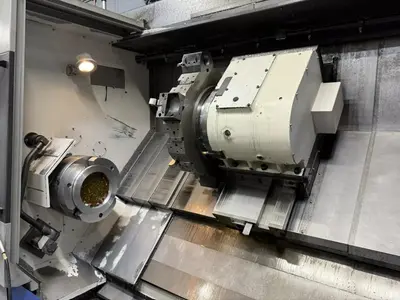

Turret Capacity: 12
Tailstock (Yes/No): yes
Live Tooling: no
Y Axis (Yes / No): no
Sub Spindle: no
Machine Dimensions: 199" x 92" x 100"
Machine Weight: 33,100 pounds

- Fanuc 18i-TB CNC Control

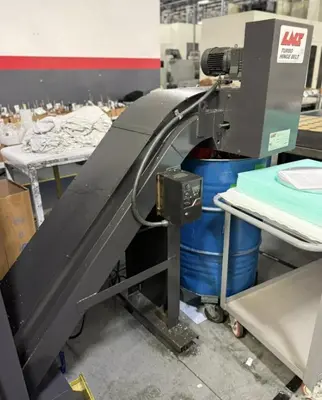

- Chip Conveyor
- Coolant Tank & Pump
- Tool Presetter

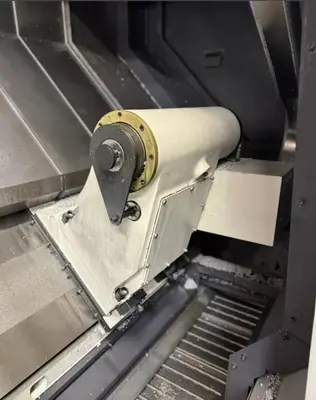

- Programmable Tailstock
