2017 Temptek 5-Ton Digital Scroll Chiller | R-410A | CFD-5A-41HFX
Overview
Description

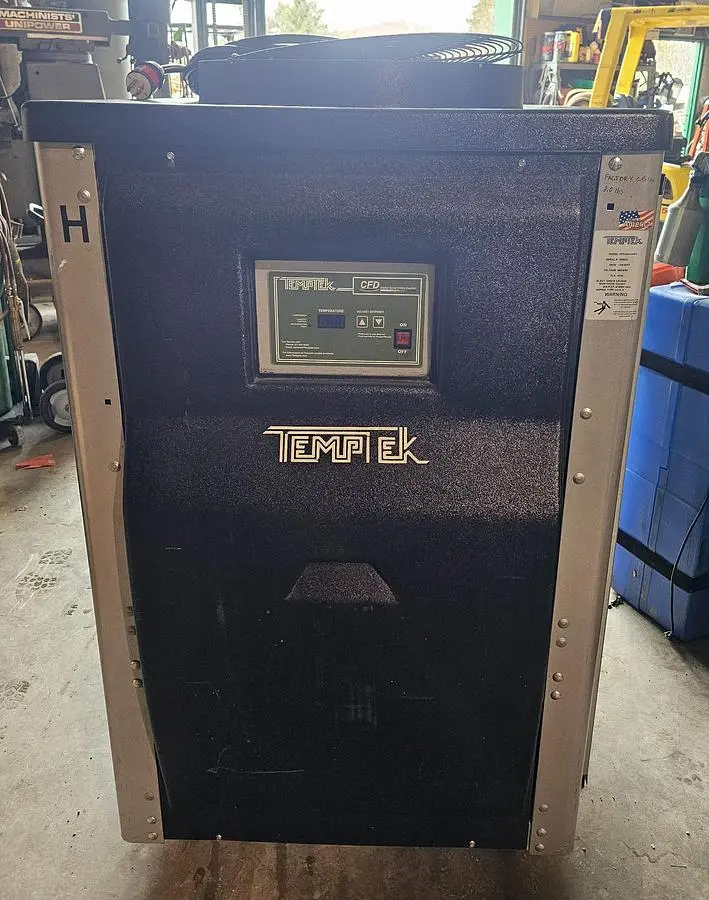

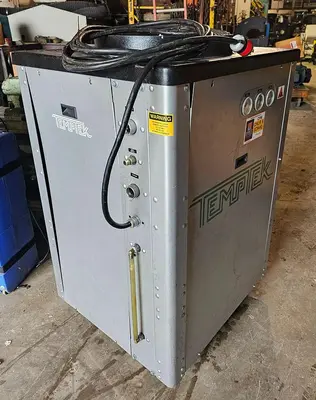

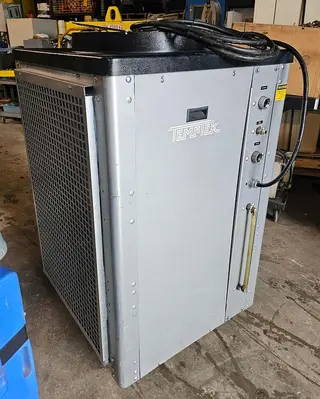

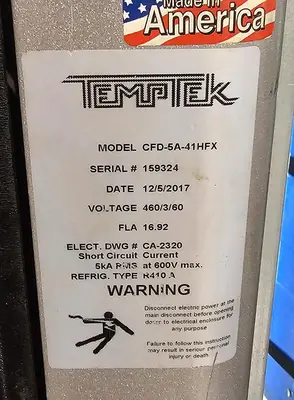

2017 Temptek 5-Ton Digital Scroll Chiller | R-410A | CFD-5A-41HFXAvailable for sale is a premium 2016 Temptek CFD-5A air-cooled portable chiller. This 5-ton unit (4.9 Ton / 58,800 BTU nominal) is a high-efficiency asset equipped with Copeland Scroll Digital™ technology. Unlike standard "on/off" chillers, the digital scroll allows the compressor to modulate capacity from 20% to 100%, providing exceptional energy savings and precise temperature stability for sensitive industrial processes.This self-contained, "plug-and-play" system includes an integrated 2 HP stainless steel process pump and a 25-gallon insulated reservoir, all housed in a compact, portable cabinet.Technical SpecificationsModel: CFD-5A-41HFXSerial Number: 159324Year of Manufacture: 2017Cooling Capacity: 4.9 Tons (58,800 BTU/hr)Refrigerant: R-410A (Environmentally friendly/Modern)Compressor: 5 HP Copeland Digital Scroll (Modulating)Process Pump: 2 HP Centrifugal (12 GPM @ 52 PSI)Electrical: 460V / 3-Phase / 60HzFLA: 17 AmpsReservoir: 25-Gallon Insulated TankProcess Connections: 1-1/4" NPT (To/From)Dimensions: 40" L x 34" W x 60" HWeight: ~800 lbsKey Features & BenefitsDigital Modulation: Automatically matches the cooling output to your actual load, reducing compressor wear and lowering electricity costs.Modern Refrigerant: R-410A ensures long-term serviceability and compliance without the high refill costs of legacy R22 units.Non-Ferrous Coolant Circuit: Features a stainless steel pump and insulated reservoir to prevent rust and maintain fluid purity.Advanced Microprocessor Control: Features a large digital display for easy monitoring of "To Process" temperatures and diagnostic status.Industrial Portability: Mounted on heavy-duty casters for easy movement between workstations.
Specifications
* Cooling Capacity: 4.9 Tons (58,800 BTU/hr)
* Refrigerant: R-410A (Environmentally friendly/Modern)
* Reservoir: 25-Gallon Insulated Tank
* FLA: 17 Amps
* Process Connections: 1-1/4" NPT (To/From)
* Weight: ~800 lbs
