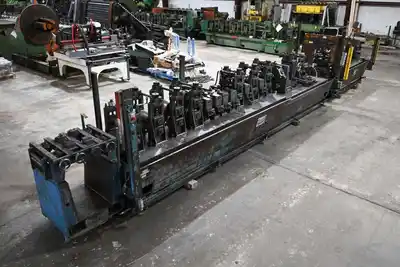

USED RAFTER RT-2000

SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Wall Thickness Range: .018″ (0.457 mm) – .095″ (2.413 mm)
Maximum Line Speed: 400 FPM
Power Supply: 480 Volt, 3 Phase, 60 Hertz
Line Direction: Left to Right
Material: Cold Rolled, Aluminum Coated, Mild Steel, Stainless Steel
Maximum Yield Strength: 40,000 PSI
ENTRY SYSTEM:
Kent 10,000 Double Uncoiler
– Model SKD10000ROT95-2837
– S/N 3085/WAL-UI
– Year: 1995
– Coil ID Range: 17.5″ – 20.5″
– Maximum Coil Width: 12″
– Coil OD: 72″
– Hydraulic Driven
– Hydraulic Unit
Shear & End Welder
– Maximum Strip Width: 9″
– on Sliding Track

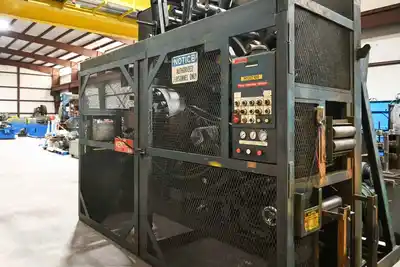

Kent 12″ Vertical Floop
– Model #R229E-RE
– S/N 9434-WAL-1
– Maximum Strip Width: 12″
– Drive Panel

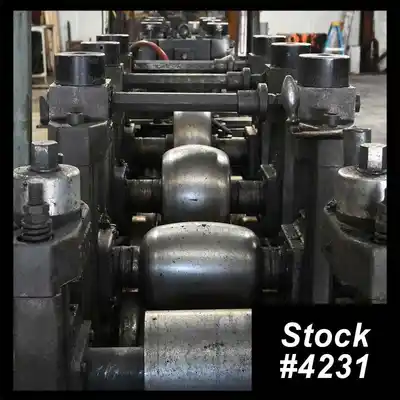

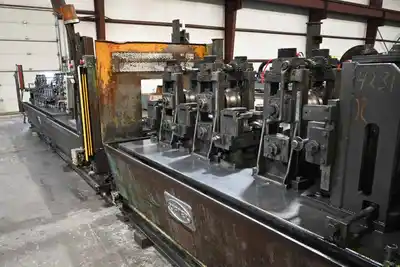

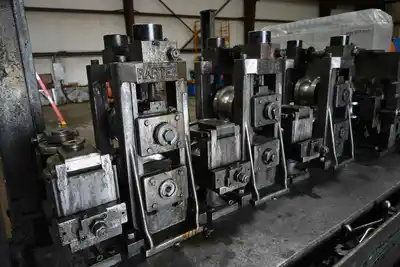

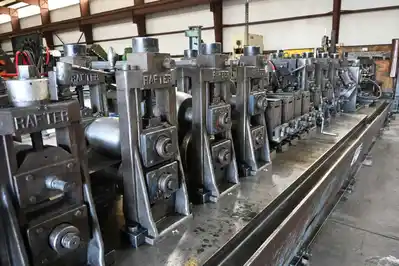

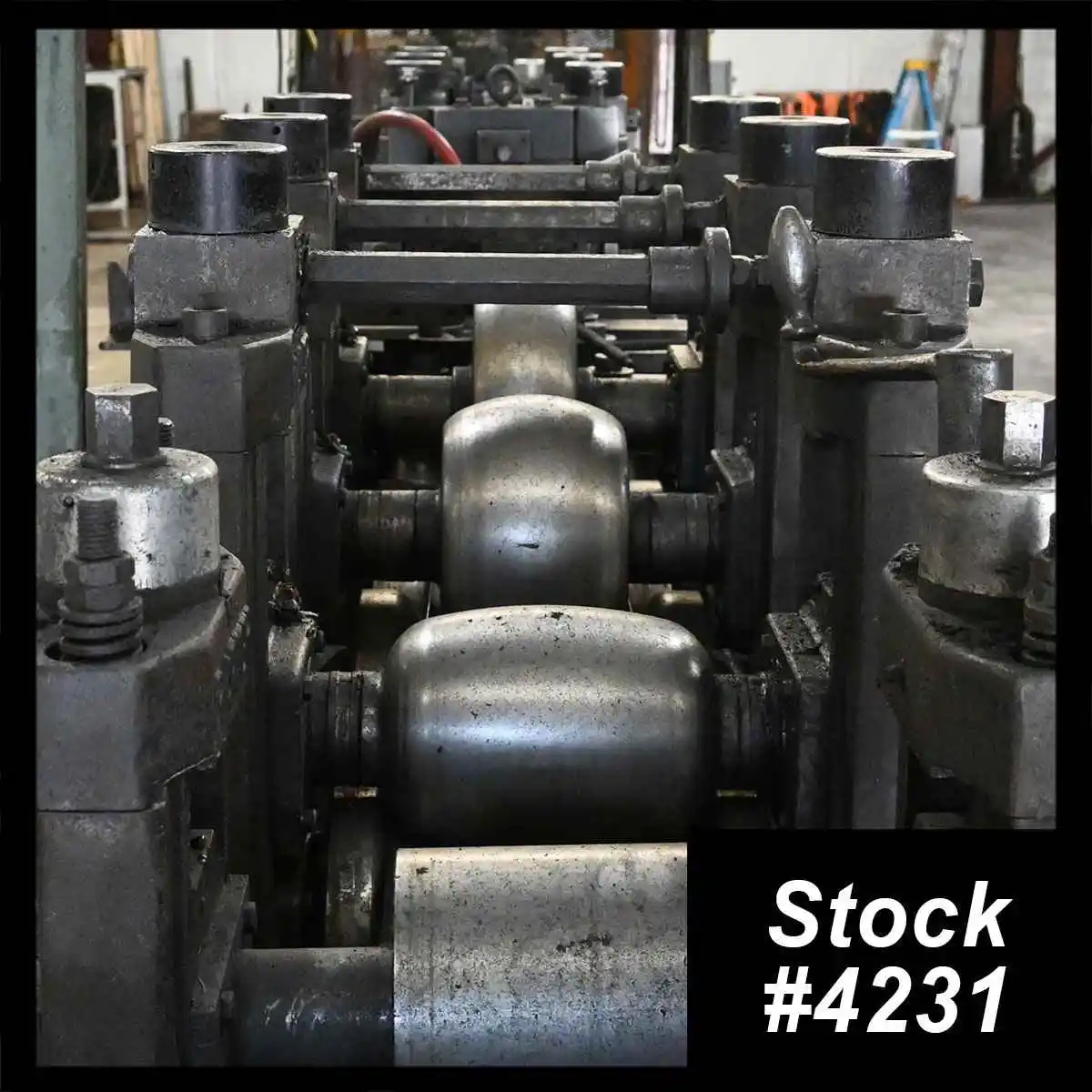

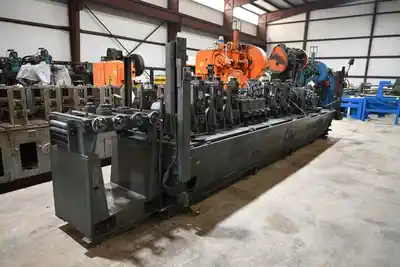

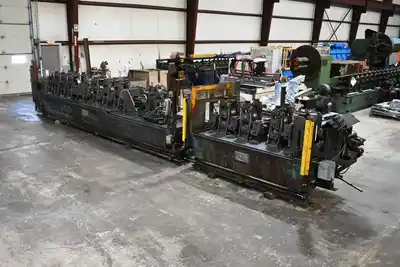

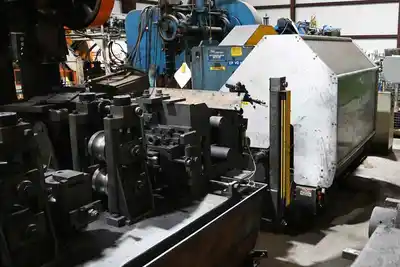

FORMING MILL:
Abbey Etna Entry Guide
3 Driven Breakdown Stands with single point adjustment and – 2″ Diameter Shafts
3 Driven Sizing Stands with single point adjustment and – 2″ Diameter Shafts
Gearbox Ratio 5:1 (3 Breakdown, 3 Fin)
6 Side Roll Stands – With Vertical Adjustment
WELDING SECTION:
3-Roll Weld Box

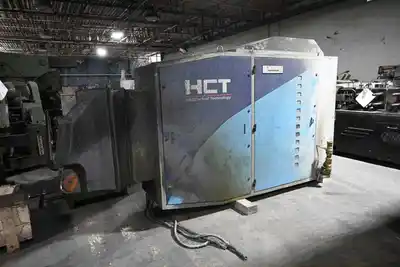

400 kW Thermatool High Frequency Welder
– Model HCT400
– Year 1997
– Electrical Cabinet
– Superchanger Heat Exchanger
Scarfing Unit

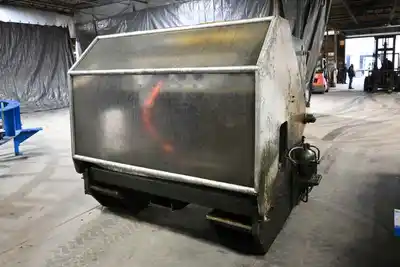

Remetalizer w/Hydrotron Wet Filter
3-Roll Ironing Stand – Parallel Top Shaft Adjustment
Squeeze Roll Coolant Piping
COOLING SECTION:
20′ Flood-Type Cooling System
SIZING MILL:
3 Driven Sizing Stands with 2″ Diameter Shafts and single point adjustment
3 Gearboxes with 5:1 Ratio
3 Side Roll Stands with Vertical Adjustment
2-Plane Turkshead

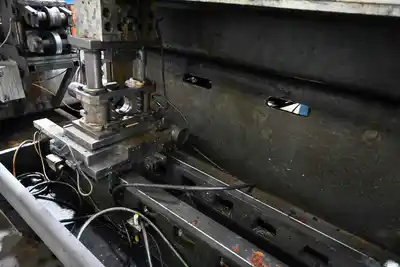

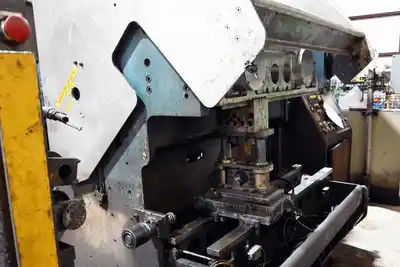

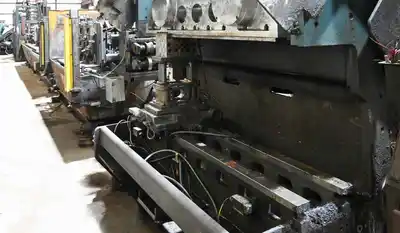

CUT-OFF SYSTEM:

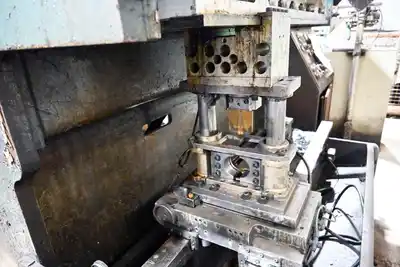

TRU-MOTION Cut-Off, Model TRU-M50, S/N 18, Year 2003
Maximum Diameter: 4.125″ (104.7 mm)
Maximum Wall Thickness: .08″ (2.03 mm)
Stroke: 5″
Die Set
Accelerator
Control Panel
Single Dump Table, Year 2003

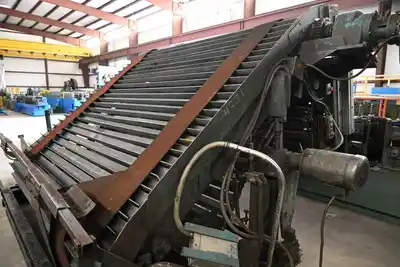

CHIP CONVEYOR:
Belt Width: 17″
Minimum Intake Height: 20″
Discharge Height: 44″
Length: 21′
BUCKEYE DEDIMPLER:
Model 30-91049, SN 0014
Electrical Panel
2″ Tooling on Machine

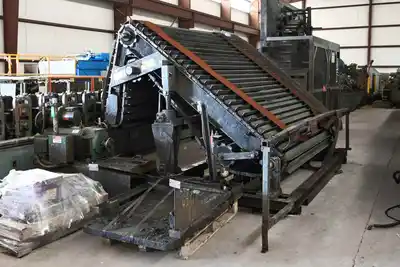

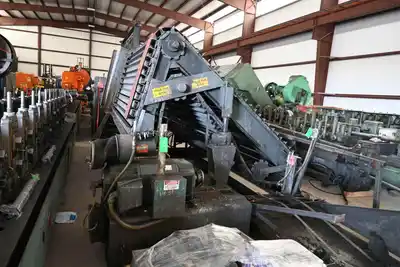

ELEVATOR CONVEYOR:
Adjustable Height
Control Panel
Walker Hydraulic Pump

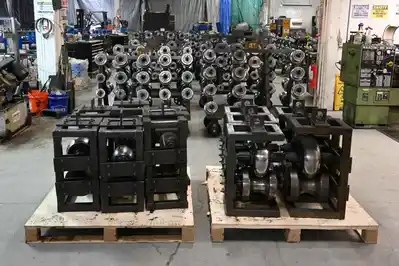

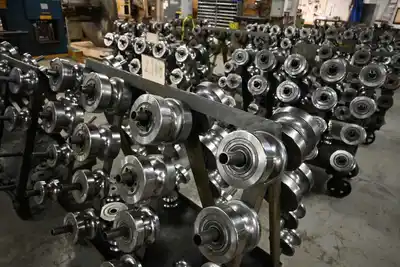

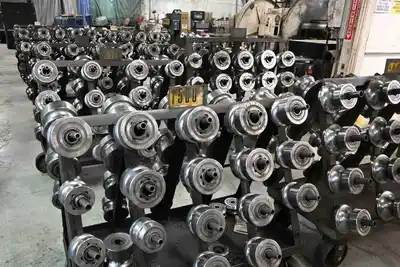

2.75″ (69.85 mm) Installed on Mill. Approximately 22 sizes of Tooling. Suggested that customer check for completeness.
1.475″ (37.4 mm)
1.5″ (38.1 mm)
1.625″ (41.2 mm)
1.725″ (43.8 mm)
1.75″ (44.4 mm)
1.85″ (46.9 mm)
1.875″ (47.6 mm)
1.975″ (50.1 mm)
2″ (50.8 mm)
2.1″ (53.3 mm)
2.125″ (53.9 mm)
2.225″ (56.5 mm)
2.25″ (57.1 mm)
2.35″ (59.6 mm)
2.37″ (60.1 mm)
2.475″ (62.8 mm)
2.5″ (63.5 mm)
2.6″ (66 mm)
2.7″ (69.2 mm)
2.75″ (69.8 mm)
2.85″ (72.3 mm)
3″ (76.2 mm)
CONTROL PANEL & DRIVE SYSTEM
60 HP DC Motors
Mill Control Panel
MISC: Mill Guarding, Mill Manuals
LOCATION: Universal Warehouse, Perrysburg, Ohio
