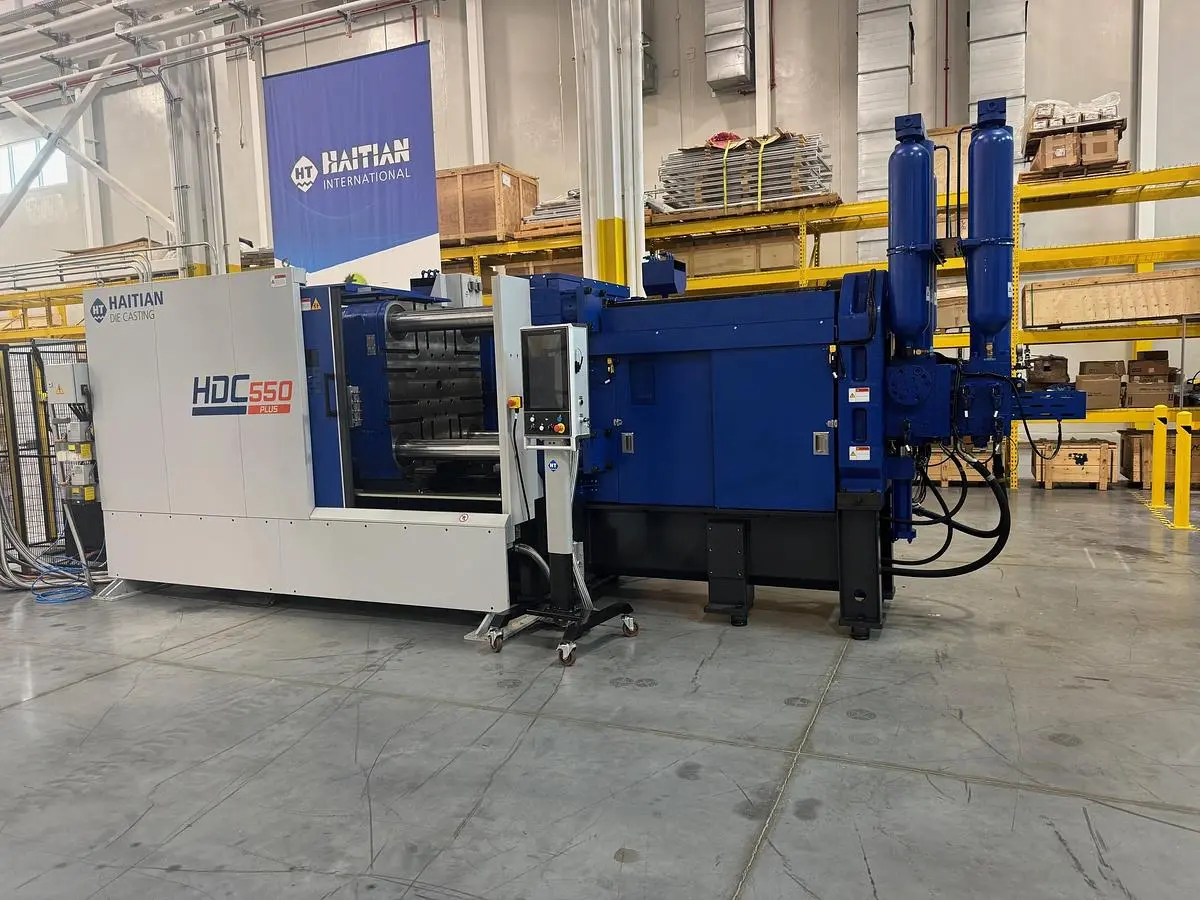

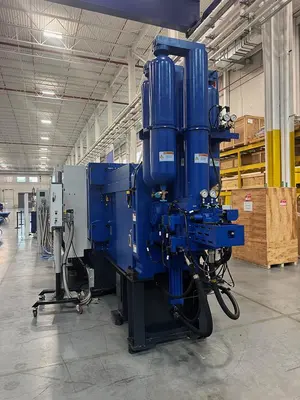

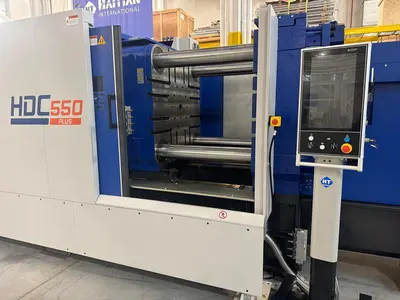

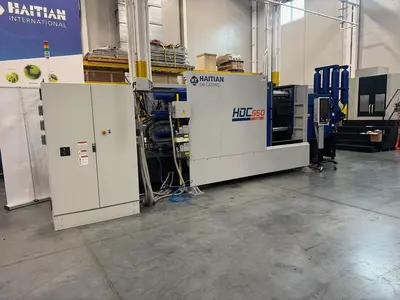

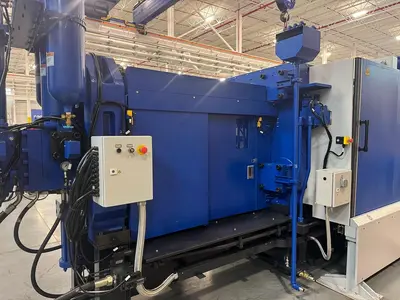

NEW 2023 HAITIAN HDC 550

2023 Show Room Machine. Never put into production. Only used for dry cycle and control demonstrations.

Clamping Force: 550 Metric Tons
Die Closing Stroke (mm): 580mm
Die Thickness (mm): 350mm min. - 850mm max
Platen Size (mm): 1,200mm x 1,200mm
Tiebar Spacing (HxV) mm: 755mm x 755mm
Tiebar Diameter (mm): 150mm
Injection Force: 580 kN
Plunger Stroke (mm): 600mm
Plunger Tip Diameter (mm): 70, 80, 90
Max Shot Weight: 9.47, 12.5, 15.8 lbs. (Aluminum)
Casting Pressure (MPa): 151, 115, 92
Casting Projected Area cm^2: 364, 478, 601
Max Casting Projected Area cm^2: 3175
Shot Position (mm): 0 - 270mm
Plunger Tip Protrusion (mm): 270
Shot Sleeve Flange Diameter (mm): 165mm
Shot Sleeve Flange Protrusion (mm): 270mm
Ejector Stroke (mm): 150mm
Ejector Force: 25 Tons
Control: KEBA
