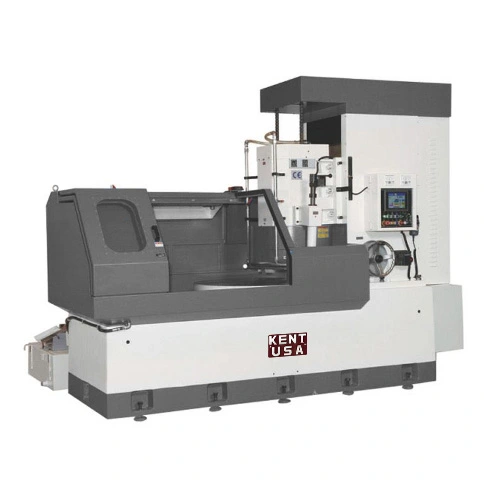

New Kent USA Rotary Grinder Model RGV-1200A
Overview
Description
Meehanite class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine
Spindle lateral design creates stability during heavy cutting.
Spindle motor: 50HP
Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding while maintaining high stiffness
Small work piece suction is accomplished by fine electrical magnetic chuck
AUTO DOWN FEED CONTROLLER BY COLOR TOUCH SCREEN MONITOR
Y-axis (vertical) Auto down feed and Z-axis (cross) feed by Mitsubishi servo motor
Grinding wheel
Wheel flange
Diamond dresser and base
Working lamp
Standard tools
Specifications
Rotary magnetic chuck’s diameter: 47.2″
Max grinding radius: —
Distance of table surface to wheel: 11.8″
Rotary magnetic chuck speed: 5-18 RPM
Rotary magnetic chuck horse power: 4.7 HP
Spindle motor: 50 HP
Spindle speed: 850 RPM
Auto Downfeed: 1.34 HP
Vertical Downfeed Revolution: X1 X5 X10 (MPG) / 0.1, 0.5, 1mm
Vertical Downfeed Graduation: X1 X5 X10 (MPG) / 0.001, 0.005, 0.01mm
Wheel Size (Dia. X Width X Bore): 3.5” x 3.2” x 1.2″ x 6.3” (8 pcs)
Net weight: 22,487 lbs
Gross weight: 24,250 lbs
Packing size: 40′ HQ Container
