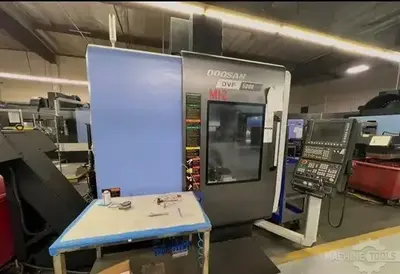

CNC Vertical Machining Center
| X | 24" | 609.6 mm |
| Y | 17" | 431.8 mm |
| Z | 15" | 381 mm |
| # Axis | 5 | 5 |
| Power | 42 hp | 31.3 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
Request a Quote
Add to Cart
X-Axis Travel: 24.6"
Y-Axis Travel: 17.7"
Z-Axis Travel: 15.7"
Spindle Speed: 18,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 42 HP
Tool Magazine Capacity: 120 ATC
Control: Fanuc 31i
Chip Removal: Chip Conveyor
Additional Axis: 5th Axis Trunnion Table
Rapid Rate X/Y/Z-Axis: 1575 IPM
Travel Distance B-Axis: +110°/-30°
Travel Distance C-Axis: 360°
Max Load: 882 Lbs
Table Size: 19.7" x 19.7"
Weight: 16534 Lbs
Renishaw Probing: Spindle Chiller
Wireless Intuitive Probing System (WIPS) - Renishaw
