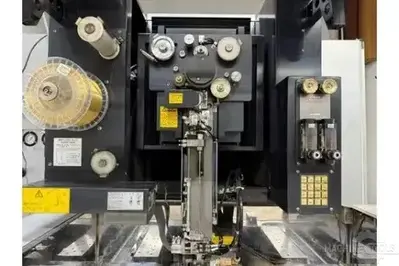

EDM Wire
| X | 23.62" | 599.95 mm |
| Y | 15.75" | 400.05 mm |
| Z | 11.81" | 299.97 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
Request a Quote
Add to Cart
X-Axis Travel: 11.81"
Y-Axis Travel: 11.81"
Z-Axis Travel: 11.81"
Control: Sodick LN2W
U/V Axis Travel: 3.15" x 4.73"
Degree Taper Cutting: +/- 20 Degrees
Inside Tank Dimensions: 44.68" x 35.03"
Wire Diameter: .006 - .012"
Max Workpiece Dimensions (Submerged): 31.1" x 21.65" x 9.84"
Max Workpiece Weight (Submerged): 1741 Lbs
Machine Dimensions: 94.48" x 115.35" x 86.02"
Machine Weight: 10648 Lbs
Dielectric System: Linear Motor Drives
Auto Wire Threading: Chiller
Glass Scale Feedback: Wire Chopper
