USED PARKER BOILER HT1920

OVERVIEW

Parker Industrial Boiler Thermal Liquid Heater — Model HT1920, Sales Order 966013. High-temperature industrial thermal liquid heating system rated at 1,920,000 BTU/HR maximum input and 960,000 BTU/HR minimum input on natural gas. Safety valve and trim maximum pressure 125 PSI. Complete skid-mounted thermal fluid heating system with expansion tank, thermal fluid receiver/storage tank, circulation pumps, gas train, insulated piping, Square D electrical panel with main disconnect, and all associated system components. ETL Listed, conforms to UL Standard 508, Certified CAN/CSA C22.2 No. 14. Manufactured by Parker Boiler Co., Los Angeles, California — one of the largest and most successful manufacturers of packaged boilers in the USA.
Parker Thermal Liquid Heating systems use the forced circulation of a special heat transfer fluid (thermal oil) as the heating medium — delivering high-temperature process heat without the high pressures associated with steam or hot water systems. Thermal fluid pressure depends on circulating pressure, typically less than 50 PSI regardless of operating temperature. Ideal for chemical plants, plastic molding, cooking/food processing, distillation, pipe coating, laundries/dye houses, wood veneer manufacturing, particle board pressing, soil remediation, and any process requiring precise high-temperature heat transfer.

EQUIPMENT SPECIFICATIONS

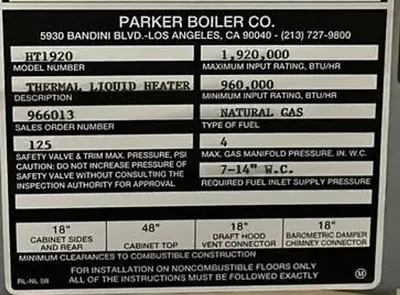

Heater Model Information:

Manufacturer: Parker Boiler Co.
Manufacturing Location: 5930 Bandini Blvd., Los Angeles, CA 90040
Product Line: Thermal Liquid Heater — Industrial High Temperature
Model Number: HT1920
Description: Thermal Liquid Heater
Sales Order Number: 966013
Fuel Type: Natural Gas
ETL Listed: Yes — conforms to UL STD 508
Certified: CAN/CSA C22.2 No. 14


Performance Ratings:

Maximum Input Rating: 1,920,000 BTU/HR
Minimum Input Rating: 960,000 BTU/HR
Turndown Ratio: 2:1
Safety Valve & Trim Max Pressure: 125 PSI
System Operating Pressure: Typically less than 50 PSI (thermal fluid)


Gas Train Specifications:

Fuel Type: Natural Gas
Max Gas Manifold Pressure: 4" W.C.
Required Fuel Inlet Supply Pressure: 7–14" W.C.
Gas pressure regulation and safety shut-off valves installed

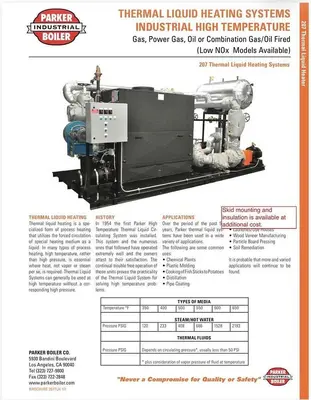

Thermal Fluid System Capabilities (per Parker specifications):

Temperature Range: Up to 650°F thermal fluid service
Steam/Hot Water equivalent pressures at temperature:
350°F = 120 PSIG
400°F = 233 PSIG
500°F = 408 PSIG
550°F = 666 PSIG
600°F = 1,528 PSIG
650°F = 2,193 PSIG
Thermal fluid operating pressure: Depends on circulating pressure, typically less than 50 PSI

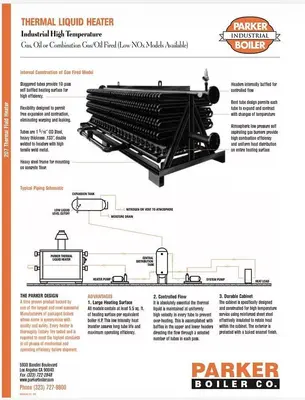

Heater Construction (per Parker HT Series design):

Tube: 1-5/16" OD steel, 0.133" wall thickness, double welded to headers
Staggered tube 10-pass self-baffled heating surface for high efficiency
Bent tube design — free expansion and contraction, no warping or leaking
Headers internally baffled for controlled flow
Atmospheric low-pressure self-aspirating gas burners
Heavy steel frame for concrete floor mounting
Reinforced sheet steel cabinet, high-temperature insulation, baked enamel finish


KEY FEATURES & BENEFITS

Parker Boiler Quality Manufacturing:

Parker Boiler Co. — Los Angeles, CA
One of the largest US packaged boiler manufacturers
Factory fire-tested before shipment
ETL Listed — UL STD 508 compliance
Certified CAN/CSA C22.2 No. 14
Heavy-duty industrial construction
Baked enamel exterior finish


High-Temperature Process Heating Without High Pressure:

Delivers process heat up to 650°F
Thermal fluid system operates at low pressure (typically under 50 PSI)
Eliminates high-pressure steam hazards at equivalent temperatures
Precise temperature control across wide range
Consistent, uniform heat distribution
No steam generation — no boiler operator license required in many jurisdictions


High-Capacity Natural Gas Firing:

1,920,000 BTU/HR maximum input
960,000 BTU/HR minimum input
2:1 turndown ratio
Natural gas fuel
4" W.C. max manifold pressure
7–14" W.C. supply pressure required
Complete gas train installed


10-Pass Self-Baffled Heating Surface:

Staggered tube design — 10-pass heat transfer
High-efficiency heat absorption
At least 5.5 SQFT of heating surface per equivalent boiler HP
Long tube life through low-intensity heat transfer
Maximum operating efficiency
No overheating through controlled flow design


Complete Skid-Mounted System:

Full thermal fluid heating plant on skid
Expansion tank included
Horizontal thermal fluid receiver/storage tank
Circulation pump(s) — multiple motors installed
Gas train with regulators and safety valves
Insulated piping throughout
Square D electrical panel
Main disconnect switch
All interconnecting piping and valves


Broad Industrial Application Range:

Chemical plants
Plastic molding
Food processing (cooking, fish sticks, potatoes)
Distillation systems
Pipe coating operations
Laundries and dye houses
Wood veneer manufacturing
Particle board pressing
Soil remediation
Any high-temperature process heating application


SYSTEM COMPONENTS

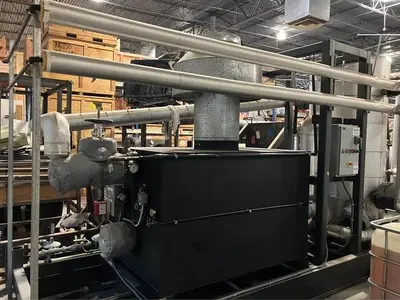

Main Thermal Liquid Heater:

Parker Boiler Model HT1920
Sales Order 966013
1,920,000 BTU/HR max input
125 PSI safety valve and trim max pressure
Natural gas fired
ETL Listed, UL STD 508
Complete with all trim and controls

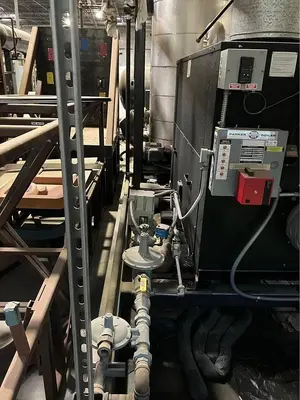

Burner & Gas Train:

Natural gas atmospheric self-aspirating burners
Gas pressure regulator assembly
Safety shut-off valves
Max manifold pressure 4" W.C.
Required supply pressure 7–14" W.C.
Complete gas train with instrumentation

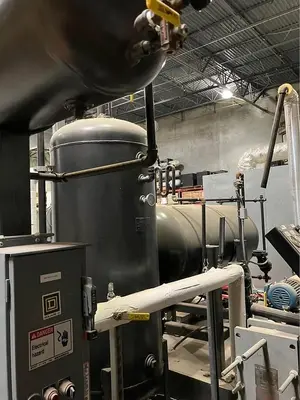

Thermal Fluid Circulation System:

Expansion tank (horizontal, skid-mounted)
Thermal fluid receiver/storage tank (large horizontal vessel)

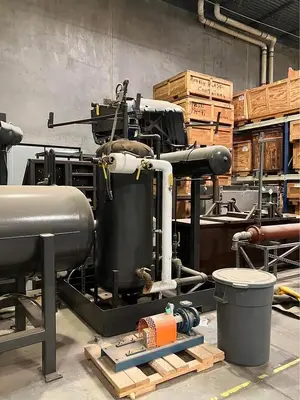

Vertical thermal fluid surge/separator tank

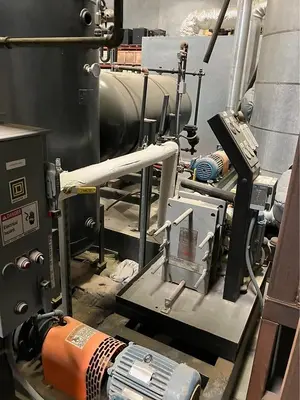

Circulation pump — orange motor drive
Secondary/system pump — blue motor drive
All interconnecting thermal fluid piping (insulated)
Isolation and gate valves throughout


Electrical System:

Square D electrical panel
Main disconnect switch (Square D)
Control panel with pilot lights and indicators
Parker-Lite flame indicator
Level safe indicator
Limit safe indicator
Control power indicator
Pilot on indicator
All wiring and conduit installed

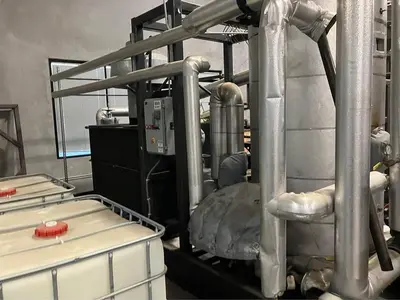

Insulation & Piping:

Full insulation jacketing on all hot piping
Insulated thermal fluid piping throughout system
Insulated expansion loop connections
Professional piping installation


Safety Systems:

Safety valve and trim (125 PSI max)
Low liquid level cutoff
Flame safeguard system
Gas pressure monitoring
High temperature limit controls
Emergency shutdown capability


SPECIFICATIONS SUMMARY

Manufacturer: Parker Boiler Co., Los Angeles, CA
Model: HT1920
Description: Thermal Liquid Heater
Sales Order: 966013
Fuel: Natural Gas
Max Input: 1,920,000 BTU/HR
Min Input: 960,000 BTU/HR
Turndown: 2:1
Safety Valve Max Pressure: 125 PSI
Thermal Fluid Operating Pressure: Typically less than 50 PSI
Max Gas Manifold Pressure: 4" W.C.
Required Supply Pressure: 7–14" W.C.
Max Operating Temperature: Up to 650°F (thermal fluid)
Tube Construction: 1-5/16" OD, 0.133" wall, double welded
Heat Transfer: 10-pass staggered tube self-baffled design
Mounting: Skid-mounted
Listing: ETL Listed — UL STD 508 / CAN/CSA C22.2 No. 14
Condition: Used


ADDITIONAL INFORMATION

Condition: Used
Manufacturer: Parker Boiler Co.
Manufacturing Location: Los Angeles, California, USA
Model: HT1920
Sales Order: 966013
Type: Thermal Liquid Heater — Industrial High Temperature
Fuel: Natural Gas
Max Input: 1,920,000 BTU/HR
Min Input: 960,000 BTU/HR
Safety Valve & Trim Max Pressure: 125 PSI
Max Gas Manifold Pressure: 4" W.C.
Required Fuel Inlet Supply Pressure: 7–14" W.C.
Certifications: ETL Listed (UL STD 508), CAN/CSA C22.2 No. 14
Tube: 1-5/16" OD steel, 0.133" wall, double welded to headers
Design: 10-pass staggered tube self-baffled, bent tube expansion design
System Includes: Expansion tank, thermal fluid receiver/storage tank, vertical surge tank, circulation pumps (x2), gas train, insulated piping, Square D electrical panel, main disconnect, all controls and instrumentation
Mounting: Skid-mounted complete system
Application: High-temperature process heat transfer without high-pressure steam

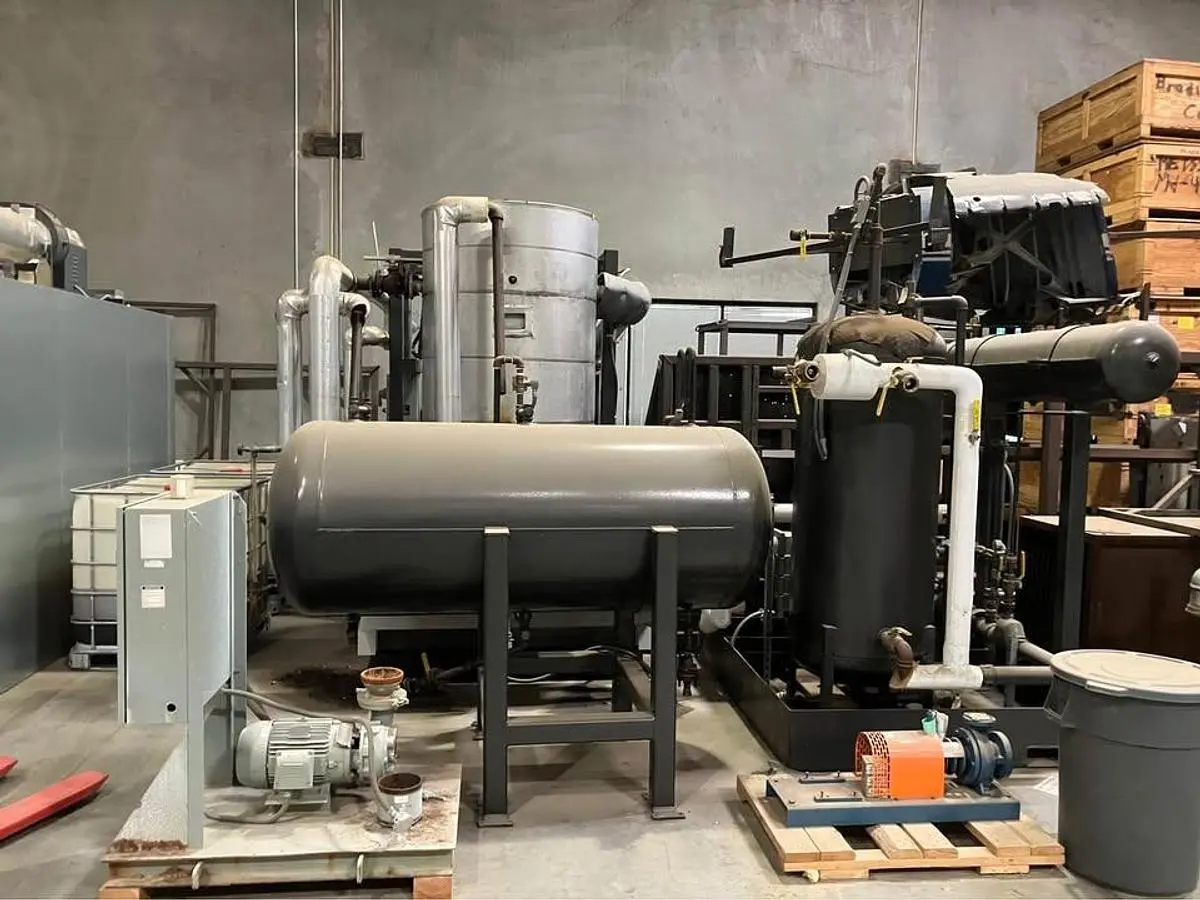

WHAT'S INCLUDED:

Parker HT1920 thermal liquid heater — complete with all trim and controls
Expansion tank
Horizontal thermal fluid receiver/storage tank
Vertical thermal fluid surge/separator tank
Circulation pump with orange motor drive
Secondary system pump with blue motor drive
Complete insulated thermal fluid piping system
Gas train with pressure regulators and safety shut-off valves
Square D electrical panel with main disconnect
All associated valves, instrumentation, and controls


INSTALLATION NOTES:

Natural gas supply required — 7 to 14" W.C. inlet pressure
Skid-mounted for straightforward installation
Professional rigging recommended
Non-combustible floor installation required per Parker specifications
Clearances: 18" cabinet sides and rear, 48" cabinet top, 18" draft hood vent connector, 18" barometric damper chimney connector
