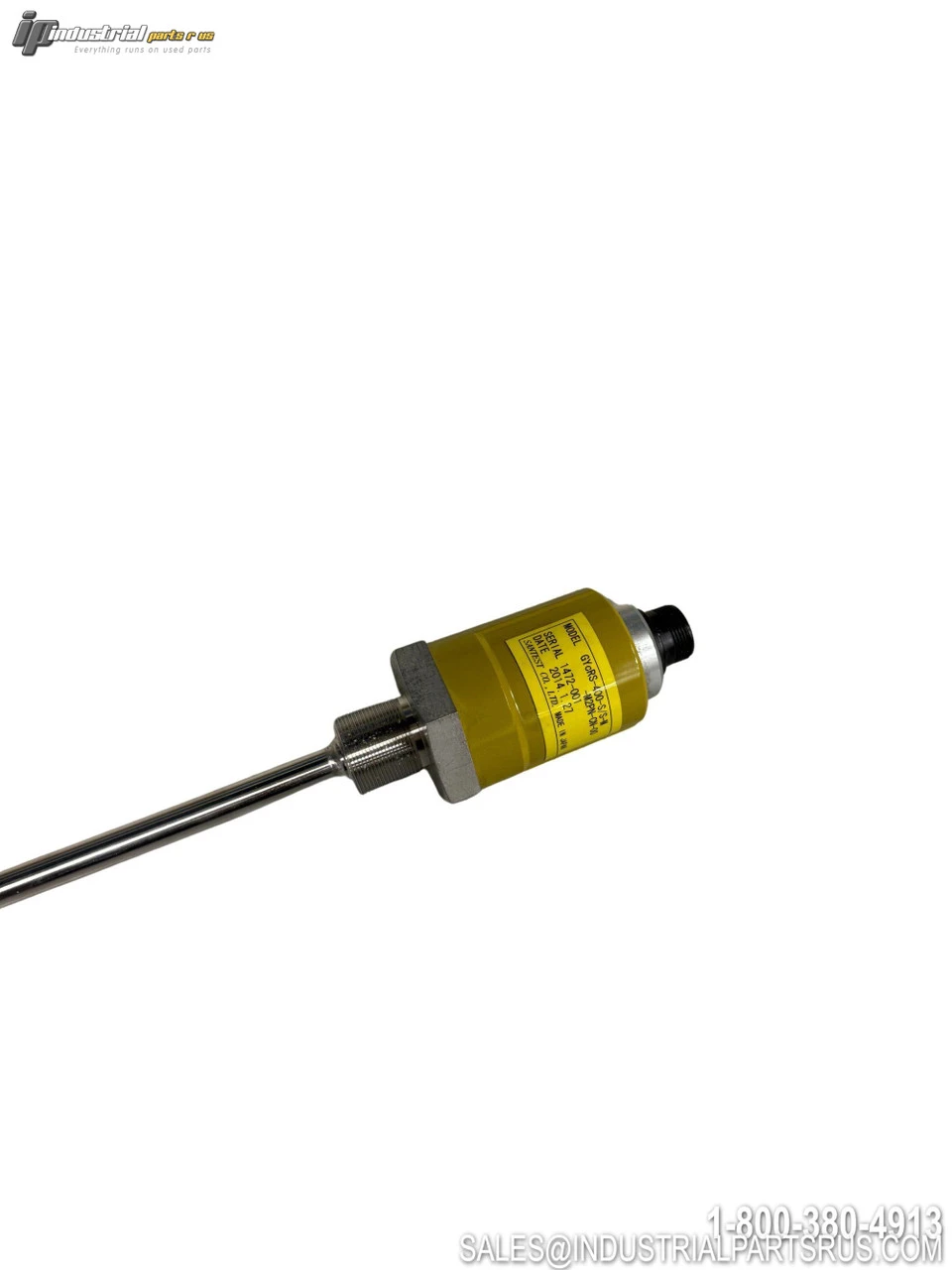

NEW SANTEST GYCRS-400-S/S-M-M2PN-CN-00
Overview
Description
The Santest GYCRS-400-S/S-M-M2PN-CN-00 is a compact magnetostrictive linear displacement sensor from Santest's GYcRS series. This probe-type sensor employs magnetostrictive phenomena to provide non-contact, absolute position measurement with high accuracy and reliability.
Specification
Value
Brand
Santest
Model/Part Number
GYCRS-400-S/S-M-M2PN-CN-00
Product Type
Linear Sensor
Series
GYcRS High Performance
Sensing Technology
Magnetostrictive
Stroke Length
400mm
Construction
Stainless Steel
Communication Standard
RS-422 Differential
Magnet Type
No. 2PN
Output Type
Depends on External Controller
Resolution
Up to 1μm (with compatible controller)
Application
Position sensing, level measurement, displacement measurement
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 6.00 LBS | 6.00 LBS |
|---|
SKU: AI0659
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 56.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Depends on External Controller
Manufacturer: Santest
Part Number: GYCRS-400-S/S-M-M2PN-CN-00
Shelf: K-60
Model: GYCRS-400-S/S-M-M2PN-CN-00
MPN: GYCRS-400-S/S-M-M2PN-CN-00
Type: Linear Sensor
