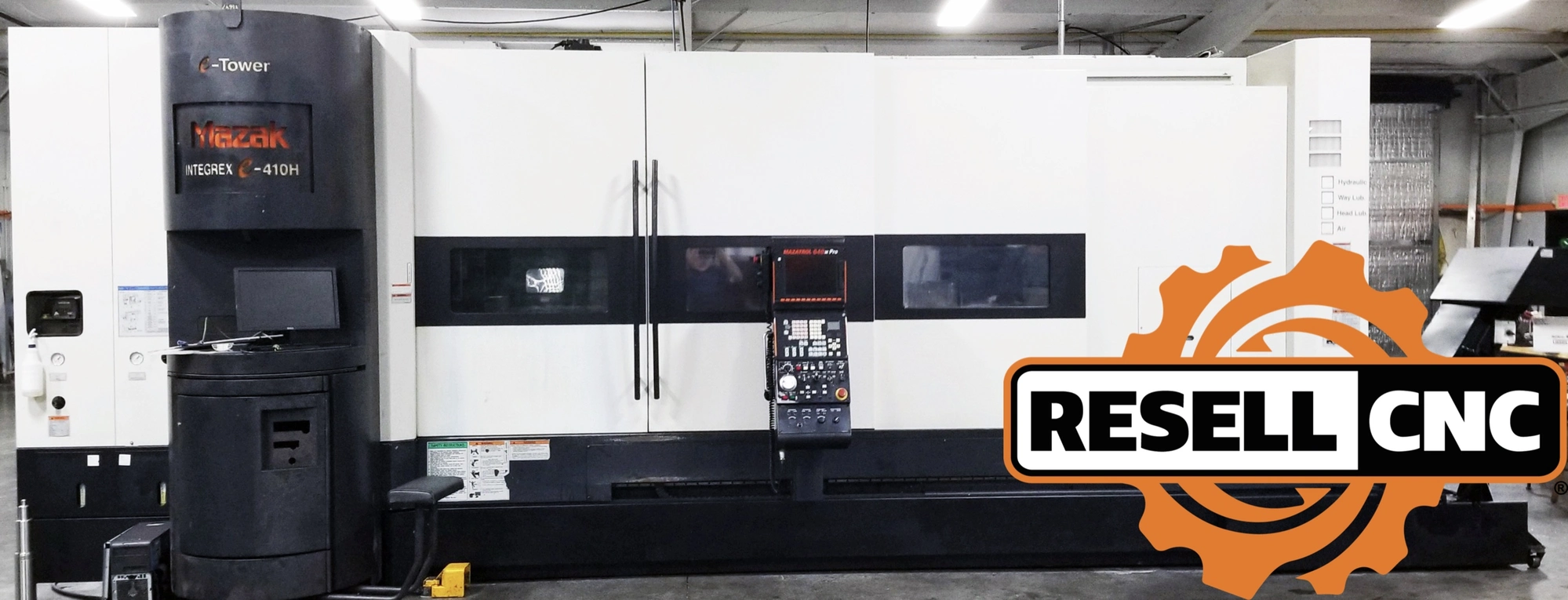

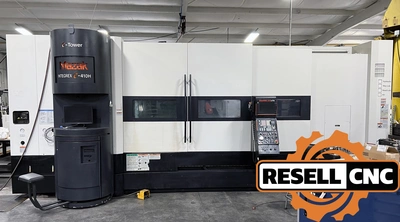

USED 2006 Mazak Integrex E-410H

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 3.5" Floppy Drive Unit

Network Interface

Additional Machine Specs: Y-Axis Travel: 16.14:

PCMCIA

Programmable Steady Rest

Coolant Through Milling Head

Preparation for 1000 PSI Super Flow Through Coolant

C-Axis 0.0001 Degree Increment Contouring

80 Capto-Tool Magazine

B-Axis 0.0001 Deg/Contouring

B-Axis Index 5 Degree

Chip Conveyor Side Disposal

Multi-Tap Transformer

SMW Steady Rest

Laser Measurement System for Rotary Tool Length Check

Radius Compensation

Interface Set

High-Precision Boring Tornado Cycle

Absolute Positioning System

Re-Threading Function

Thread Start Point Compensation

LNS/Autoblok Steady Rest Package

Bar Capacity: 3.0
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Through-Hole Chuck B-210A0815X
Chuck Size: 10.0
Chuck Type: Hydraulic
Control Make Model: Mazatrol 640M Pro
Control Options: Floppy Drive, Manual Pulse Generator / Pendant
Distance Between Centers: 120.0
Live Milling Hp: 30
Live Milling Max Rpm: 12,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer, Tool Eye
Max Cutting Turning Diameter: 24.01
Max Swing Over Bed: 24.01
Max Swing Over Saddle: 24.01
Max Turning Cutting Length: 120.0
Programmable Tailstock: true
Rapid Traverse: 1969/1575
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.46
Spindle Motor: 35
Spindle Nose: A2-8
Spindle Speed: 4000.0
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true
Tool Positions: 80.0
Total Spindles: 1
Twin Turret: false
X Travel: 28.97
Y Axis: true
Z Travel: 122.55
