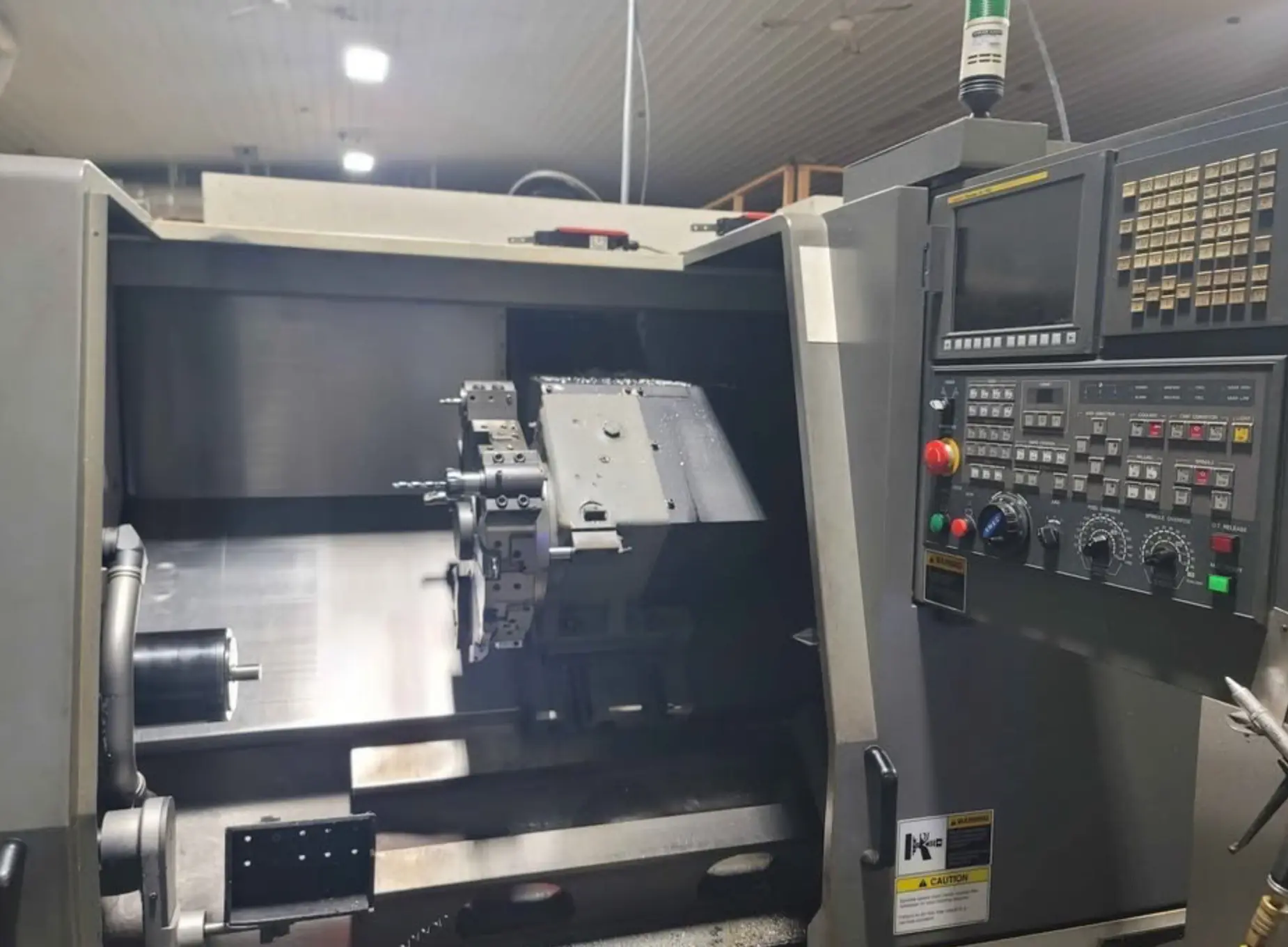

CNC Lathe, used condition. Features: 25.6" swing, 41.3" machining length, 2-axis, 12" chuck, 3.58" bar capacity, 30 hp, 2,500 RPM, includes Fanuc Oi-TD CNC, tailstock, chucks, and tool presetter.
| Swing | 25.6" | 650.24 mm |
| Machining Length | 41.3" | 1,049 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.58" | 90.932 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 15.7" | 398.78 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Chuck Size: 12″
Bar Capacity: 3.5″
X-Axis Travel: 9.06″
Z-Axis Travel: 43.30″
Rapid Traverse (X/Z): 709 ipm / 945 ipm
Max Turning Diameter: 15.75″
Swing Over Bed: 25.59″
Swing Over Cross Slide: 18.90″
Maximum Turning Length: 41.34″
Spindle Speed: 2,500 RPM
Spindle Motor: 30 HP / 25 HP (cont./peak)
Spindle Nose: A2-8
Spindle Bore: 4.13″
Draw Tube ID: 3.58″
Guideways: Box way
Bed Type: 45° slant bed
Repeatability (X/Z): ±0.00012″ / ±0.00039″
Tool Stations: 12 (OD & ID capable)
Control Fanuc Oi-TD CNC, tailstock, 3″ thru spindle, tailstock, 10″ & 12″ Samschully chucks, S30 collet closer & pads, hard & soft jaws, spindle liners, parts catcher, chip conveyor, tool presetter, various tools and an Iemca barfeeder.
