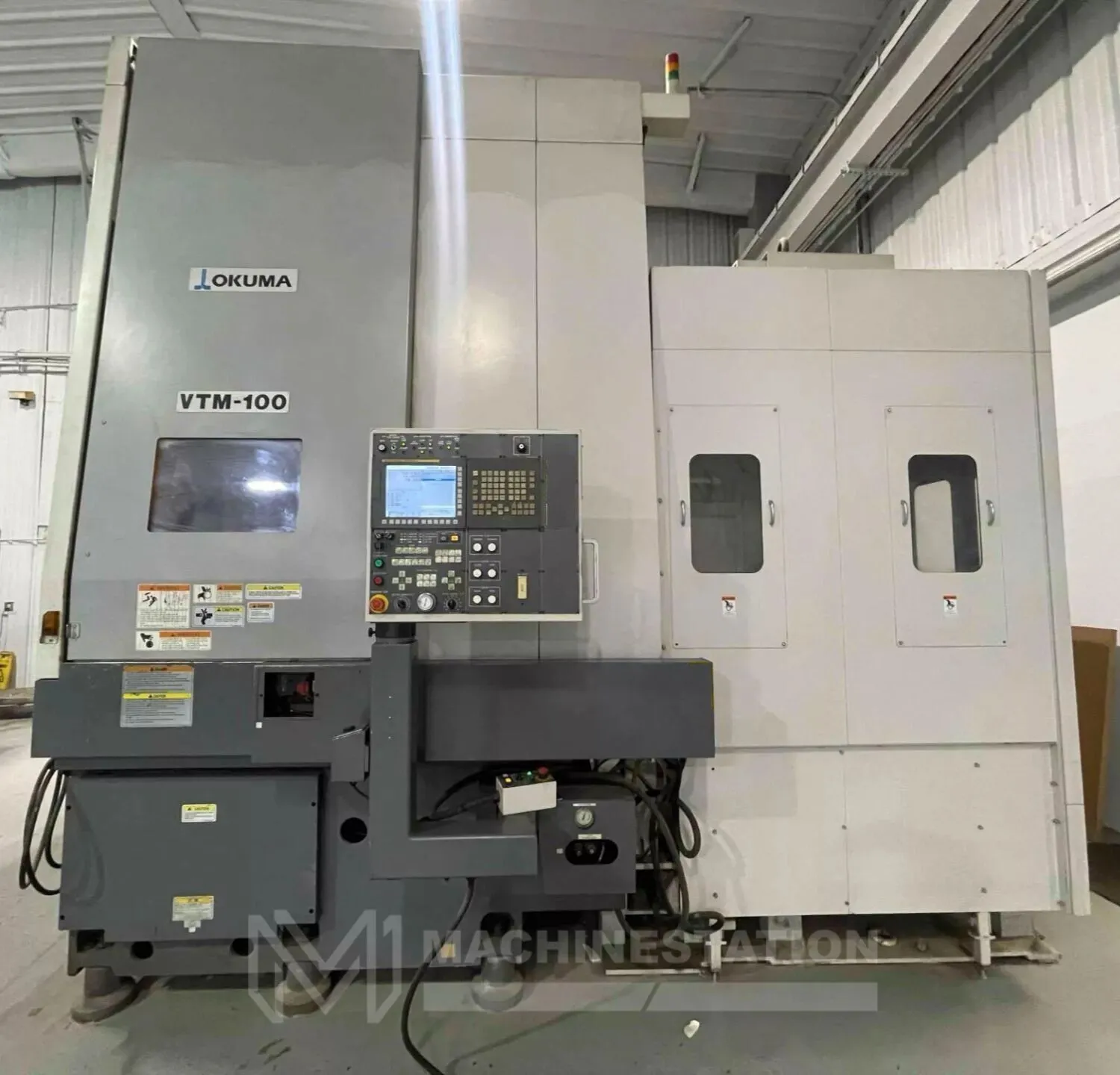

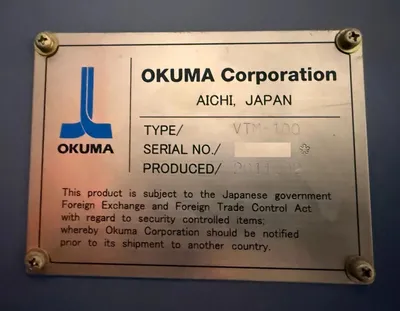

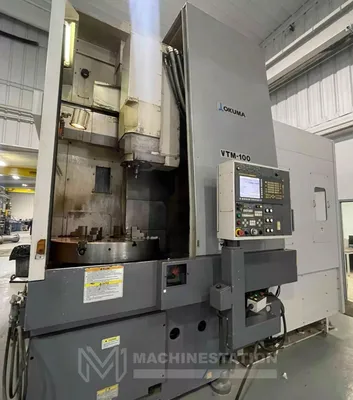

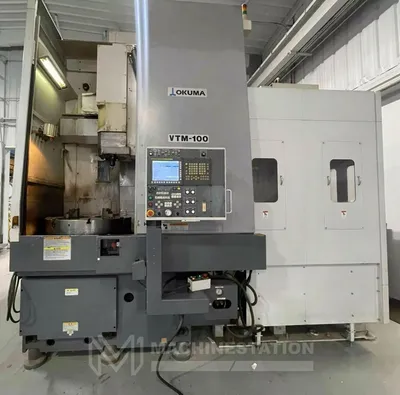

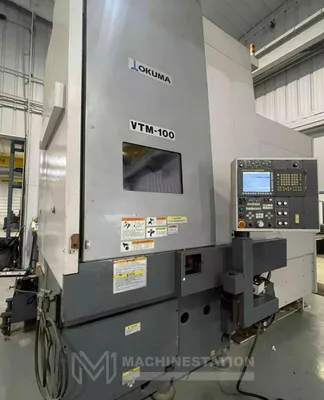

USED 2011 OKUMA VTM-100

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

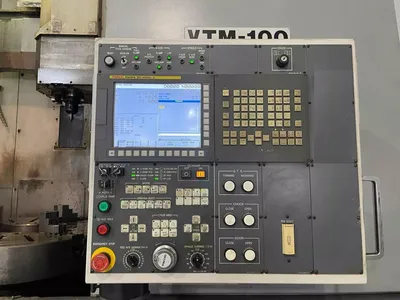

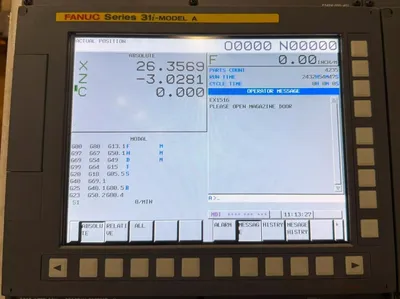

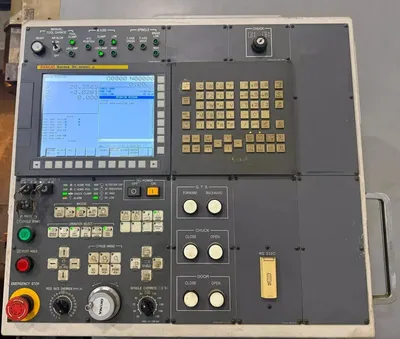

Fanuc 31i-MA Series CNC Control
PCMCIA Card Slot
RS232 Port
Coolant Tank

Capacity:
Max Machining Diameter: 39.37″
Max Machining Height: 33.07″
Max Swing Diameter: 39.37″
Max Workpiece Load: 2,640 lbs

Travel:
X Axis Travel: 25.59″
Z Axis Travel: 30.07″
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 10 – 1,250 RPM
Spindle Motor: 40 HP

Turret (Tool Spindle):
Turret Type: ATC Single Tool
Tool Size: 1.0″, 1.25″
Boring Bar Diameter: ø1.5″, ø2.0″

Milling Tool Spindle:
Max Spindle Speed: 10 – 4,500 RPM
Speed Ranges: 2 Auto Ranges
Taper: 50

Auotmatic Tool Changer:
Capacity: 60 Tools
Max Tool Diameter: 6.70″ – 9.84″
Max Tool Length: 19.69″
Max Tool Weight: 66 lbs

General:
Power Source: AC 220/480 V, Three Phase, 60 Hz
Overall Diemensions: 169″ x 126″ x 169″ High
Weight : 29,700 lbs Approx.

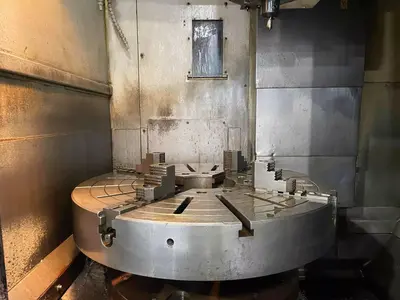

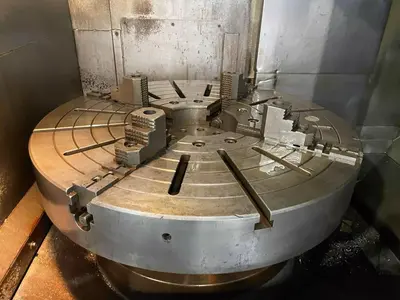

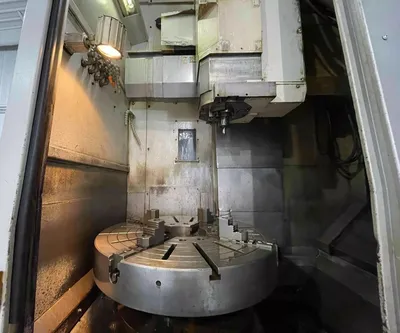

39.37″ 4-Jaw Chuck
C Axis Live Tool

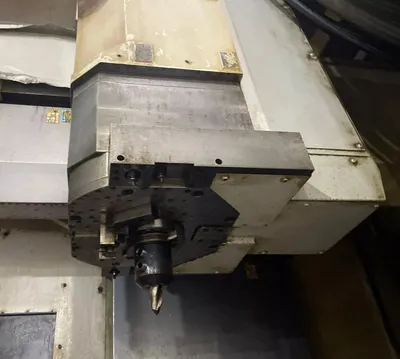

50 Taper Milling Spindle

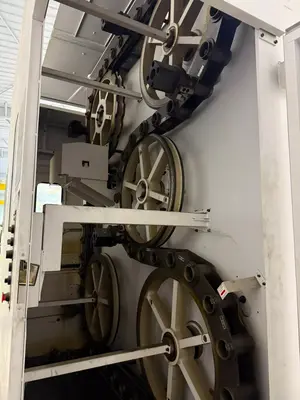

60 Station Automatic Tool Changer
A2-11 Spindle Nose
4.33″ Spindle Bore

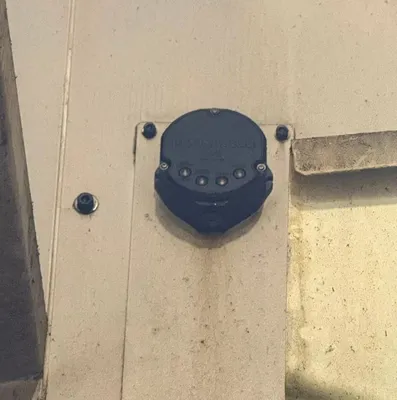

Renishaw Receiver Installed
Tool Probe

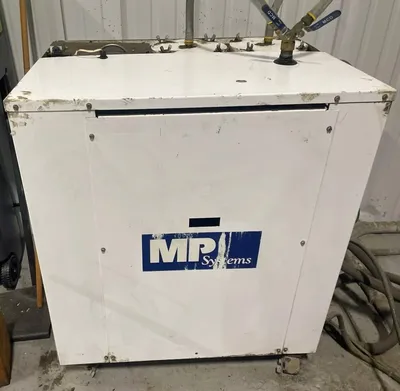

Through Spindle Coolant

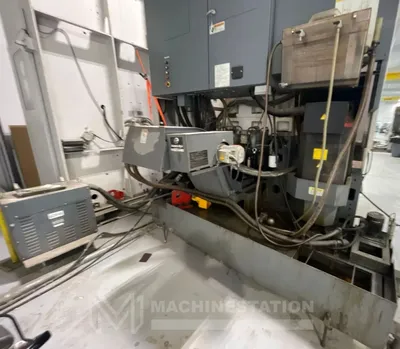

Chip Conveyor
Foot Swiches
