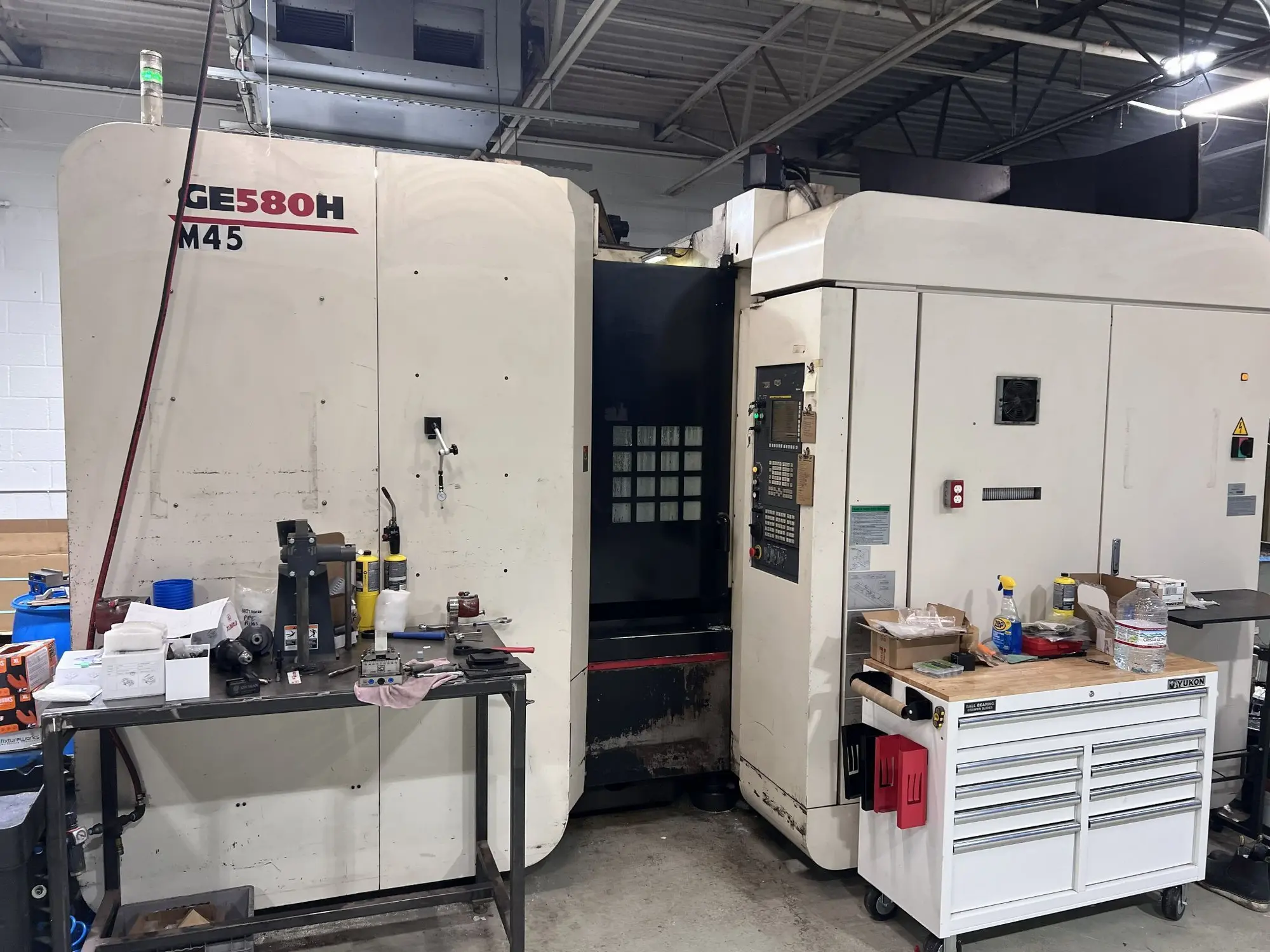

USED 2016 ENSHU GE580H

ENSHU GE580H Horizontal Machining Center, 2016 model, available used. Features include 31.5" X/Y travels, 32.7" Z travel, 40-tool ATC, 10,000 RPM, and #50 taper. Ideal for precision manufacturing needs.

SPECIFICATIONS:

AXIS TRAVEL STANDARD EQUIPMENT
X Axis 31.5" • Fanuc 31iMB control
Y Axis 31.5" • Fanuc 54 HP spindle drive
Z Axis 32.7" • Fanuc axis servo drives
Table top to spindle centerline 3.93"~35.4"
• 500 mm pallets (19.7" x 19.7")
• Rotary automatic pallet changer
• BIG-PLUS® / CAT 5O spindle taper
• 40-tool automatic tool changer
• Ceramic spindle bearings
Table centerline to spindle face 5.9" ~ 37.4"

FEEDRATES
Rapid traverse (X/Y/Z) 2,362 IPM
Cutting feedrate 0 ~ 1,968 IPM
Feed motors, AC Servo 7.4 HP (X/Y/Z)

SPINDLE
Spindle taper CAT50
Spindle bearing diameter 4.33"
Spindle power/type 54 HP/integral Full power developed at
Low Range 500 RPM
High Range 2,500 RPM

• Full 4th axis (360,000 position)
• High volume rolling filter chip conveyor
• Spindle air curtain
• Spindle oil chiller
• Coolant thru-spindle (256 PSI)
• Spindle flood coolant
• Bed flush coolant
• Ceiling shower coolant
• Refrigerated & temperature controlled ballscrews

Spindle ramp-up time 3.8 seconds • Spindle speed override
Rigid tapping (max. rpm) 3,000 RPM • Feedrate/rapid traverse override

Lubrication type Oil air

ACCURACY
Positioning, full stroke (X/Y/Z) 0.000080”
Repeatability +/- 0.000040”

AUTOMATIC TOOL CHANGER
Magazine capacity 40 (78, 130)
Maximum tool diameter 4.7"
with adjacent pockets empty 9.4”
Maximum tool length 17.7" Maximum tool weight
Full speed 33 lbs.
Reduced Speed (programmable) 55 lbs.
Tool change time (tool-tool) 2.1 seconds
Tool change time (chip-chip) 4.8 seconds

AUTOMATIC PALLET CHANGER
Pallet size 19.7” x 19.7"
Capacity per pallet/total 1,763 lbs./3,526 lbs.
Minimum index Full 4th axis (360,000 positions)
Pallet index time (90° index) 2.0 seconds
Pallet change time 10.0 seconds

• LED work light
• Three-stage stack light
• Totally enclosed splash guard with manual operated doors
• Door interlock
• Inch/metric switchable capability
• 2MB total program memory
• Automatic corner override
• Tool offset memory type C
• 200 tool offsets
• Custom macro “B”
• Additional macro variables
• Additional registrable programs
• High speed skip

JAPAN

MACHINE ELECTRICS
AC 200/220V ± 10%, 3 Phase, 60Hz 66 KVA

MACHINE DIMENSIONS & WEIGHTS
L x W x H 232" x 129" x 123"
(length includes chip conveyor)
Weight 36,200 lbs.

Note: specifications and equipment supplied subject to
change without notice

• Full 4th axis (360,000 position)
• High volume rolling filter chip conveyor
• Spindle air curtain
• Spindle oil chiller
• Coolant thru-spindle (256 PSI)
• Spindle flood coolant
• Bed flush coolant
• Ceiling shower coolant
• Refrigerated & temperature controlled ballscrews
