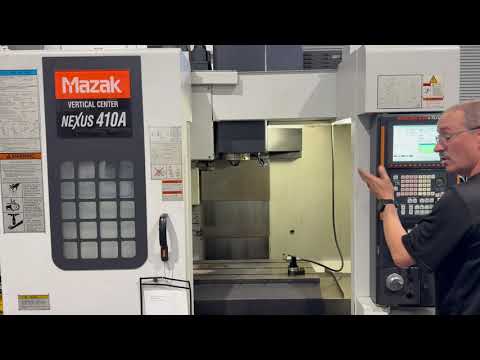

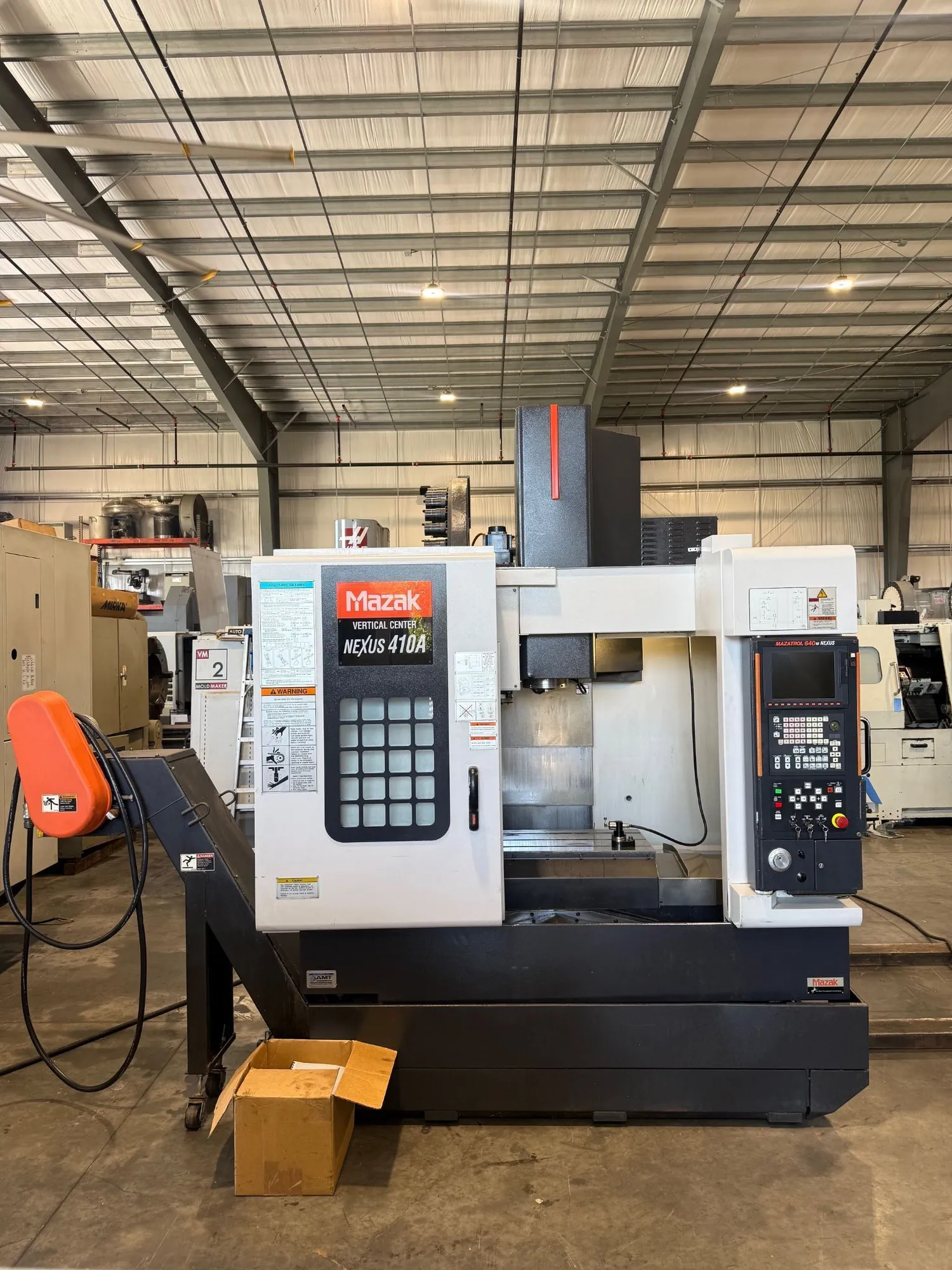

MAZAK VCN 410A CNC Vertical Machining Center 2005’ #8178
| X axis | 22" | 558.8 mm |
| Y axis | 16" | 406.4 mm |
| Z axis | 20" | 508 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | Cat-40 | Cat-40 |
| Table-W | 16.1" | 408.94 mm |
| Table-L | 35.4" | 899.16 mm |
| # Axis | 3 | 3 |
| Dimensions | 103” x 95” x 102”H | 103” x 95” x 102”H |
MAZAK VCN 410A CNC Vertical Machining Center 2005’ #8178
Reference # 8178
Model # VCN 410A
Serial # 178488
Year of manufacture- 5/2005’
Table size- 16.14” x 36”
Max table weight- 1,102 Lbs.
X axis travel- 22.04”
Y axis travel- 16.14”
Z axis travel- 20.08”
Spindle taper- CAT-40
Spindle speeds- 12,000 R.P.M.
Spindle nose to table- 5.9” / 26”
Rapids on X,Y,Z 1,417 I.P.M.
Cutting feeds- 987 I.P.M.
Tool changer- 30 Capacity
MAZATROL 640M NEXUS CNC Control
Machine hours-Power on time-5,268, Cutting time- 8,059
Control options- EIA, Spiral, EIA 3D comp, Rotation, Geometric, Scaling, Ext-Data I/O, Shape Comp, Thread, Inverse Time, Auto TLM, Comparison Stop,G54.1, Sync Tap, G00Slope Const, Variable 600 sets, Navigation, EIA Helical Tap cycle, Mazatrol Helical, Mazatrol CO-OR Shift, Mazatrol planet tap
Chip conveyor
Coolant tank & Pump
Machine manuals
Machine is wired for 208 volt / 3 phase / 60 H.Z.
