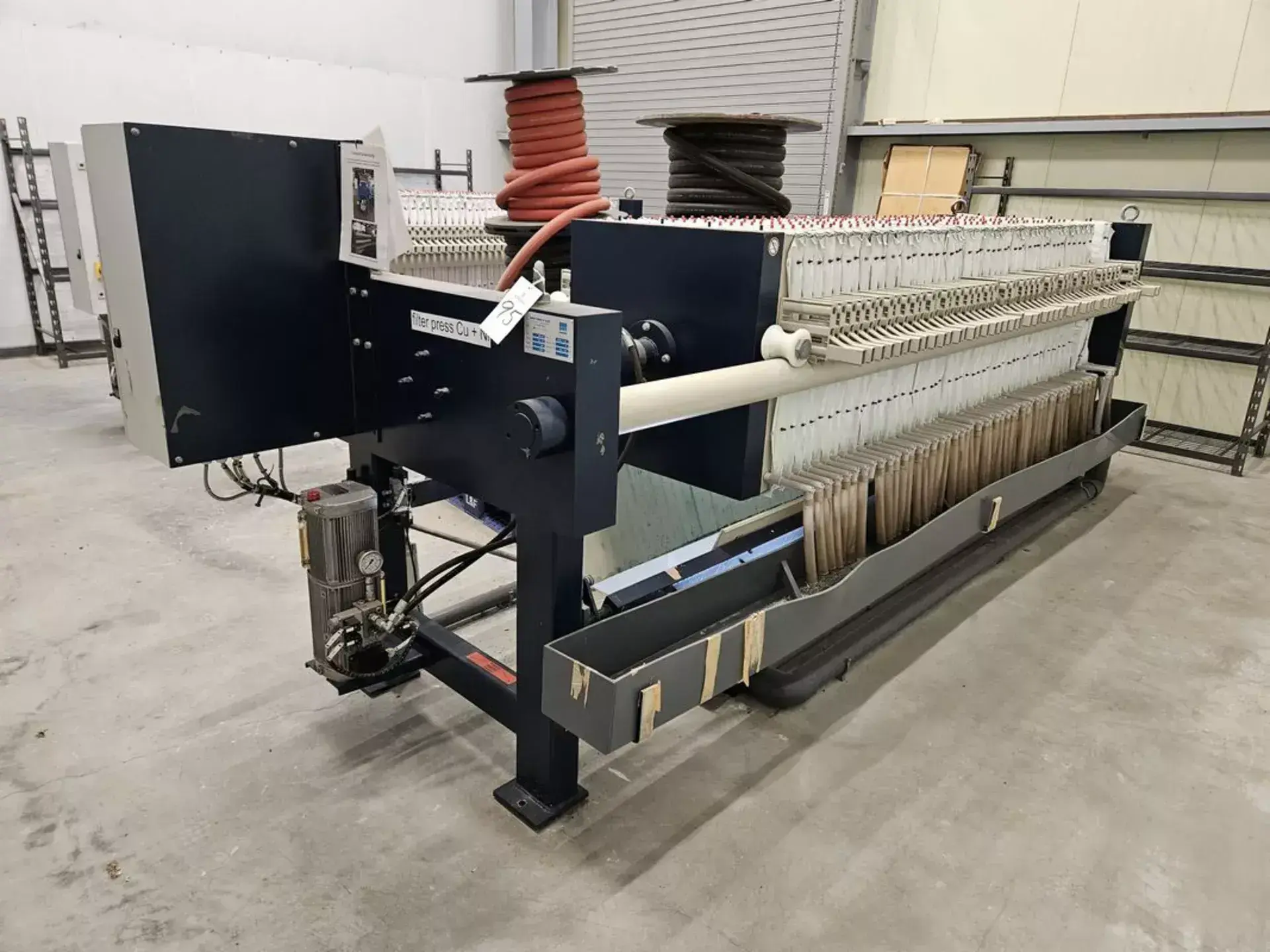

USED 2017 SIMEX SPK80 45/50

800MM (31.5”) SPK 80 SIMEX GMBH “45/50” FILTER PRESS - 48 Plates - Hydraulics - 2017

800MM (31.5”) SPK80 SIMEX GMBH “45/50” HYDRAULIC FILTER PRESS
New 2017, Serial No 80977, Type SPK 80, Model 45/50

EQUIPPED WITH:
(48) 800MM x 800 MM Plates
Hydraulic System
Control Cabinet

CATALOG SPECIFICATIONS:
Plate Dimensions, L x W 800MM x 800MM
Plate Dimensions, L x W 31.5” x 31.5”
Number of Chambers 49
Number of Plates On Machine 48
Filtration Area 51M2 167F2
Chamber Volume 576 LITERS 152 GALLONS
System Pressure, Maximum 15 bar
Closing Pressure, Maximum 350/400 bar
Overall Length 4385MM 173”
Overall Width 990MM 39”
Weight Approximately 5100KG 11250 LBS

NOTE: Replacement Price Is Approximately $49000.00

F.O.B. OUR WAREHOUSE
