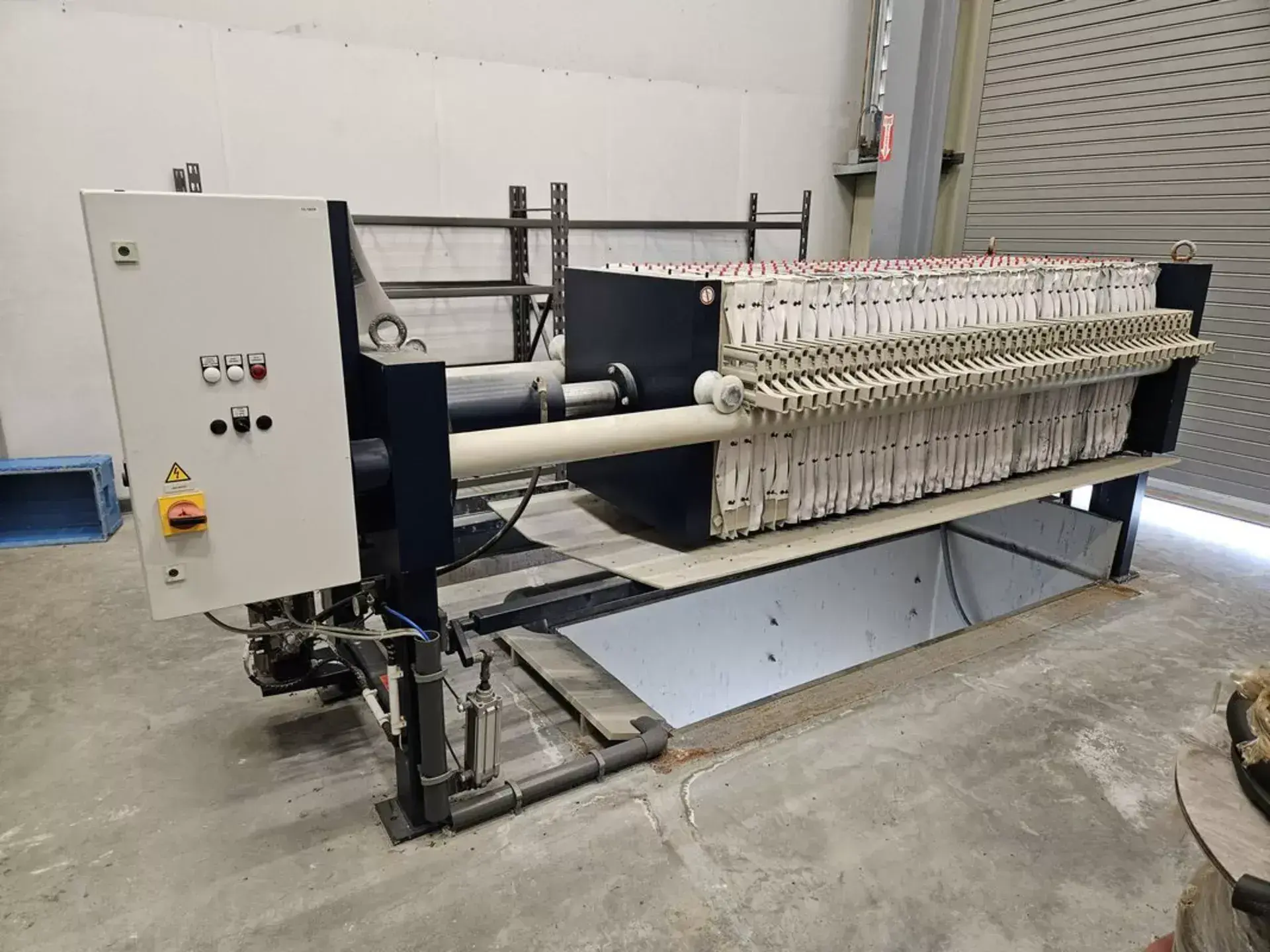

USED 2017 SIMEX SPK80 35/40

800MM (31.5”) SPK 80 SIMEX GMBH “35/40” HYDRAULIC FILTER PRESS - 42 Plates - Hydraulics - 2017

800MM (31.5”) SPK80 SIMEX GMBH “35/40” HYDRAULIC FILTER PRESS
New 2017, Serial No 80978, Type SPK 80, Model 35/40

EQUIPPED WITH:
(42) 800MM x 800 MM Plates
Hydraulic System
Control Cabinet

CATALOG SPECIFICATIONS:
Plate Dimensions, L x W 800MM x 800MM
Plate Dimensions, L x W 31.5” x 31.5”
Number of Chambers 39
Number of Plates On Machine 42
Filtration Area 41M2 134F2
Chamber Volume 459 LITERS 121 GALLONS
System Pressure, Maximum 16 bar
Closing Pressure, Maximum 350/400 bar
Overall Length 3865MM 152”
Overall Width 990MM 39”
Weight Approximately 4500KG 10000 LBS

NOTE: Replacement Price Is Approximately $46,000.00.

F.O.B. OUR WAREHOUSE
