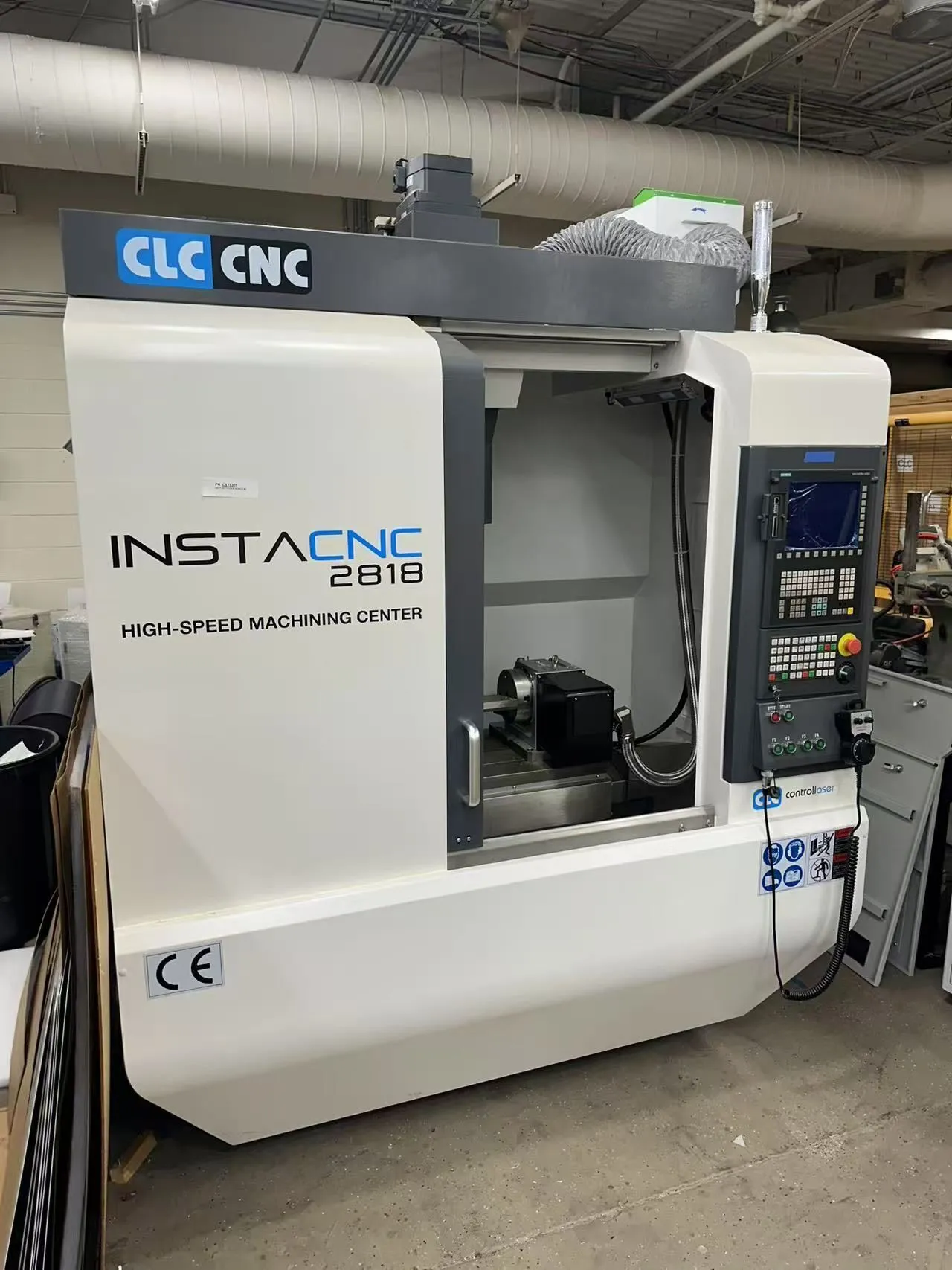

The InstaCNC® stands out as a highly versatile alternative to conventional machining centers, boasting superior speed, precision, efficiency, and productivity.
Equipped with integrated high-speed drilling and tapping functions, it excels in precise milling, drilling, and thread tapping operations.
Moreover, it effectively handles hard metal mold machining—a task typically reserved for horizontal CNC machines.
Noteworthy features of this model include its high G-force value and exceptional rigidity.

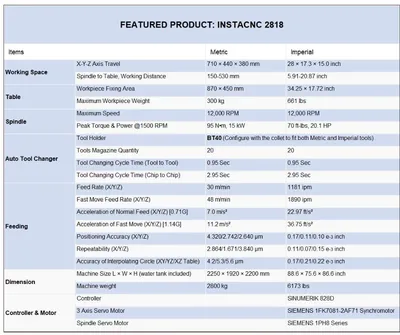

| X | 28" | 711.2 mm |
| Y | 17.3" | 439.42 mm |
| Z | 15" | 381 mm |
| Power | 20.1 hp | 15 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 20 | 20 |
| Table-W | 34.25" | 869.95 mm |
| Table-L | 17.72" | 450.09 mm |
| # Axis | 3 | 3 |
| Dimensions | 88.6 X 75.6 X 86.6 inch | 88.6 X 75.6 X 86.6 inch |
| Weight | 6173 lbs | 6173 lbs |
