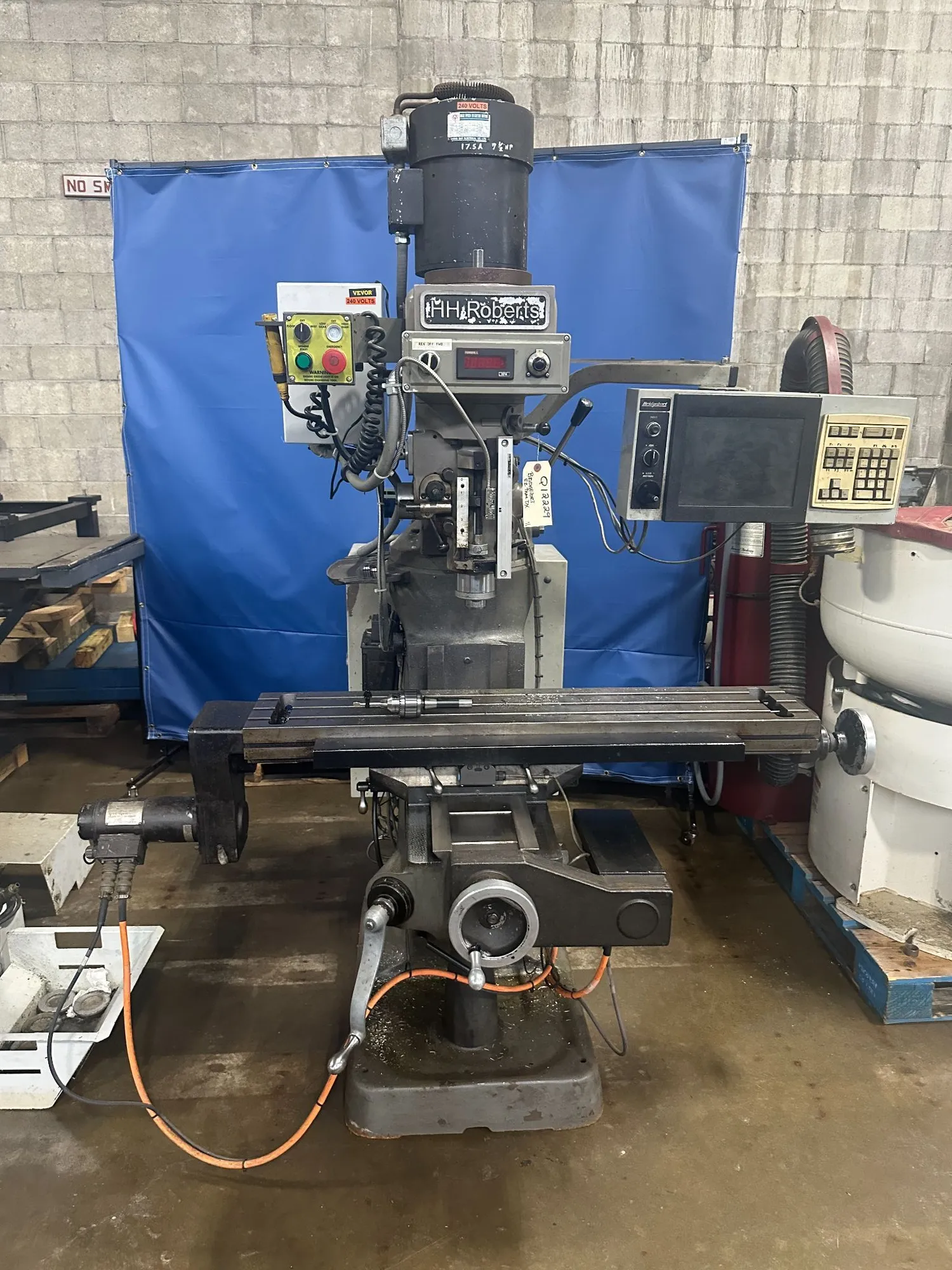

9" x 48" BRIDGEPORT EZ TRAK DX CNC VERTICAL KNEE MILL, 2-Axis CNC Controlled, 9" x 48" Table, 3 HP Motor, 4200 Max Spindle RPM.
| Table-L | 48" | 1,219.2 mm |
| Table-W | 9" | 228.6 mm |
| Max Weight of Workpiece | 750 lb | 340.2 kg |
| X-Axis (Longit. Table Travel Power Feed) | 36" | 914.4 mm |
| Y-Axis (Cross Saddle Travel) | 12" | 304.8 mm |
| W-Axis (Vertical Knee Travel) | 16" | 406.4 mm |
| Z-Axis (Vertical Quill Travel) | 5" | 127 mm |
| Spindle Taper | R8 | R8 |
| Spindle Speeds | 60 - 4,200 RPM | 4,200 RPM |
| Spindle Power | 2 hp | 1.5 kW |
| Electrics | 240/3/60 | 240/3/60 |
| Dimensions | 70" x 77" x 87" | 70" x 77" x 87" |
| Weight | 3,000 lbs | 3,000 lbs |
Bridgeport EZ Trak CNC Control- X& Y Axis CNC Controlled Digital Readout on Quill, 3HP HH Roberts Head, VFD Controlled Spindle 4200 Max RPM, Drawbar, Automatic Lubrication System.
