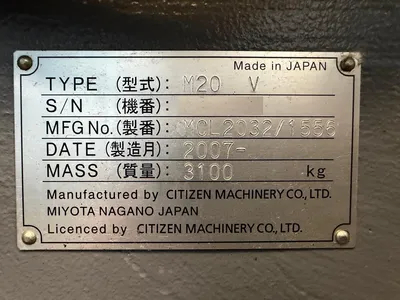

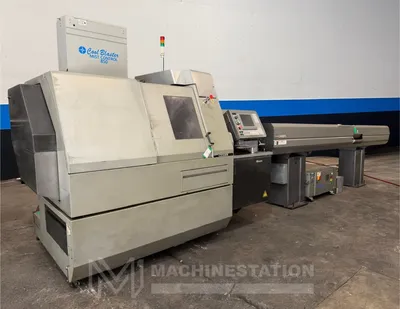

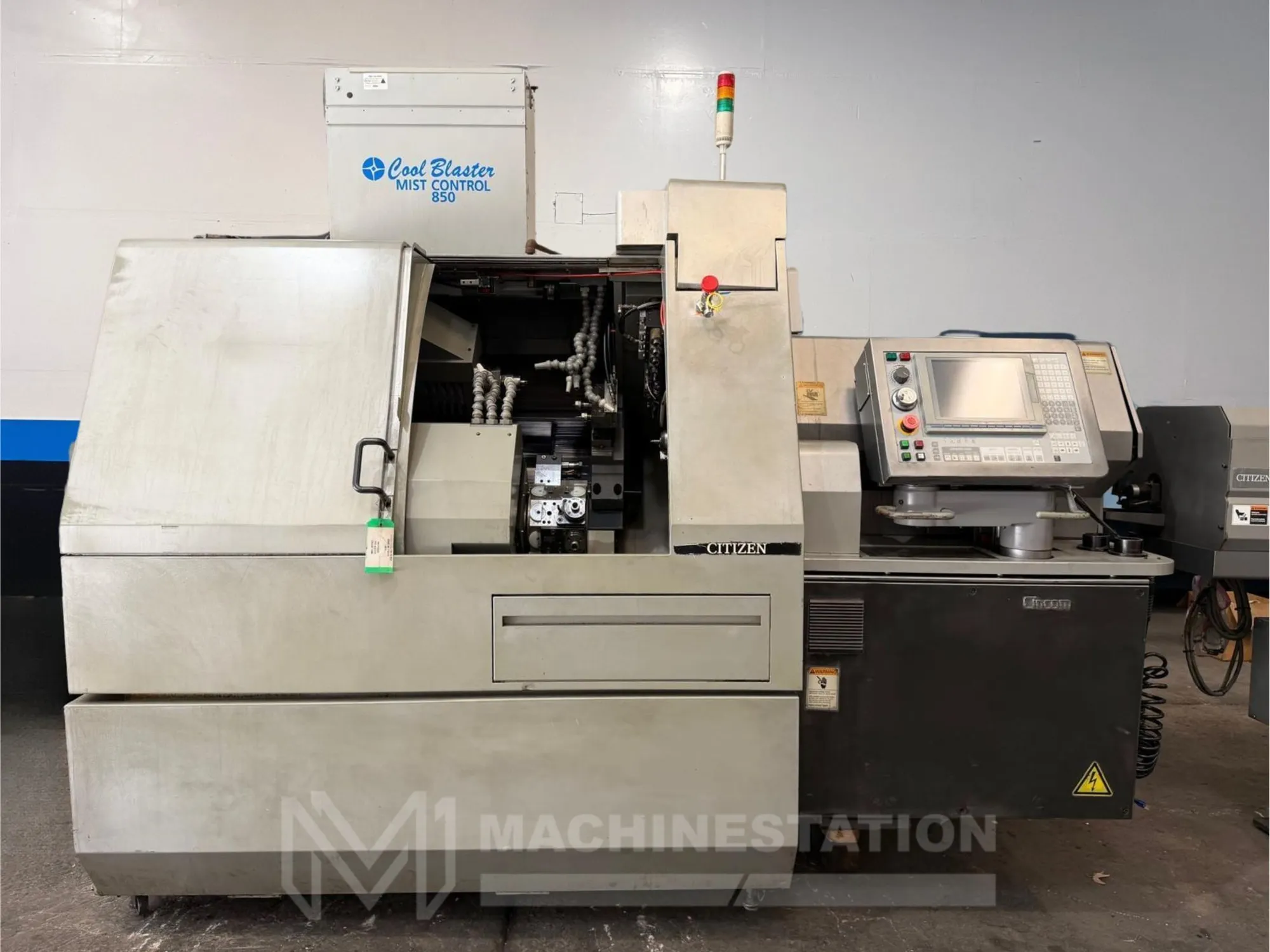

USED 2007 CITIZEN M20V
Overview
Specifications
| Spindle Hole Dia | 0.79" | 20.066 mm |
|---|---|---|
| Power | 5 hp | 3.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 7 | 7 |
| Control | CNC (Citizen Cincom CNC Control) | CNC (Citizen Cincom CNC Control) |
| Dimensions | 110″ X 50″ X 72″ High without Bar Feeder | 110″ X 50″ X 72″ High without Bar Feeder |
| Weight | 6,830 lbs. Approx. | 6,830 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Citizen Cincom CNC Control
Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3
MPG Control
Main & Back Spindle Synchronization
Automatic Lubrication System
Coolant System
Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 12.59″ (320 mm)
Max Bar Capacity: 0.79″ (20 mm)
Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 200 – 10000 RPM
Back Spindle Motor: 5 HP
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 8000 RPM
Back Spindle Motor: 3 HP
Turret & Gang Tooling:
Turret Tools: 10 Station (20 Positions)

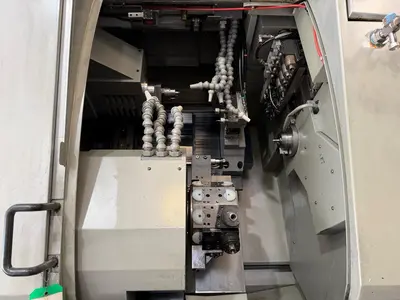

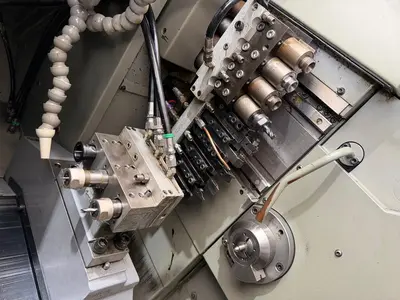

Gang Tools: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (+ Rear Facing Tools On Turret)
Rotary Tool Speed: 200 - 5000 RPM
Rotary Tool Motor: 2 HP
General:
Power Source: AC 220v / 3-Phase /60 Hz
Overall Dimensions: 110″ X 50″ X 72″ High without Bar Feeder
Weight: 6,830 lbs. Approx.
Equipped With

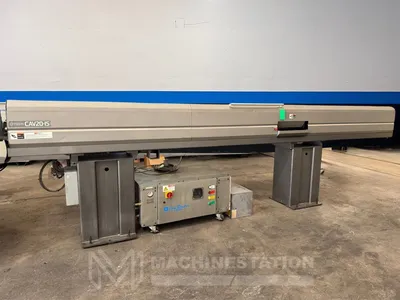

Comes with Citizen CAV20-IS Bar Feeder

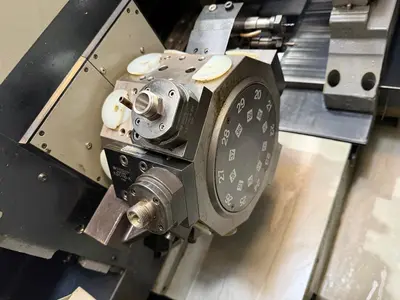

10 Station (20 Positions) Live Tool Automatic Turret

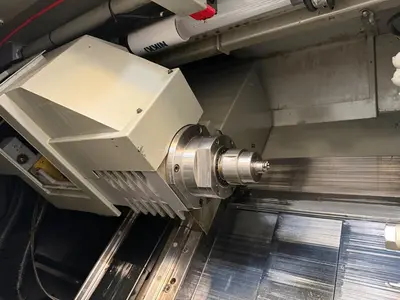

Back Spindle
C & Y Axis Capable
Live Tools Capable
Long Parts Capable

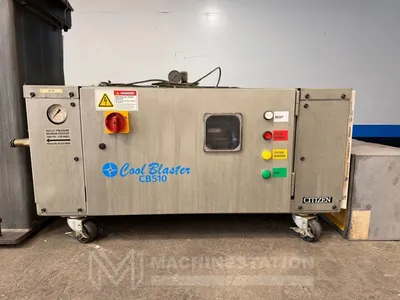

Cool Blaster CB510 Unit
Cool Blaster Mist Control 850 Unit
