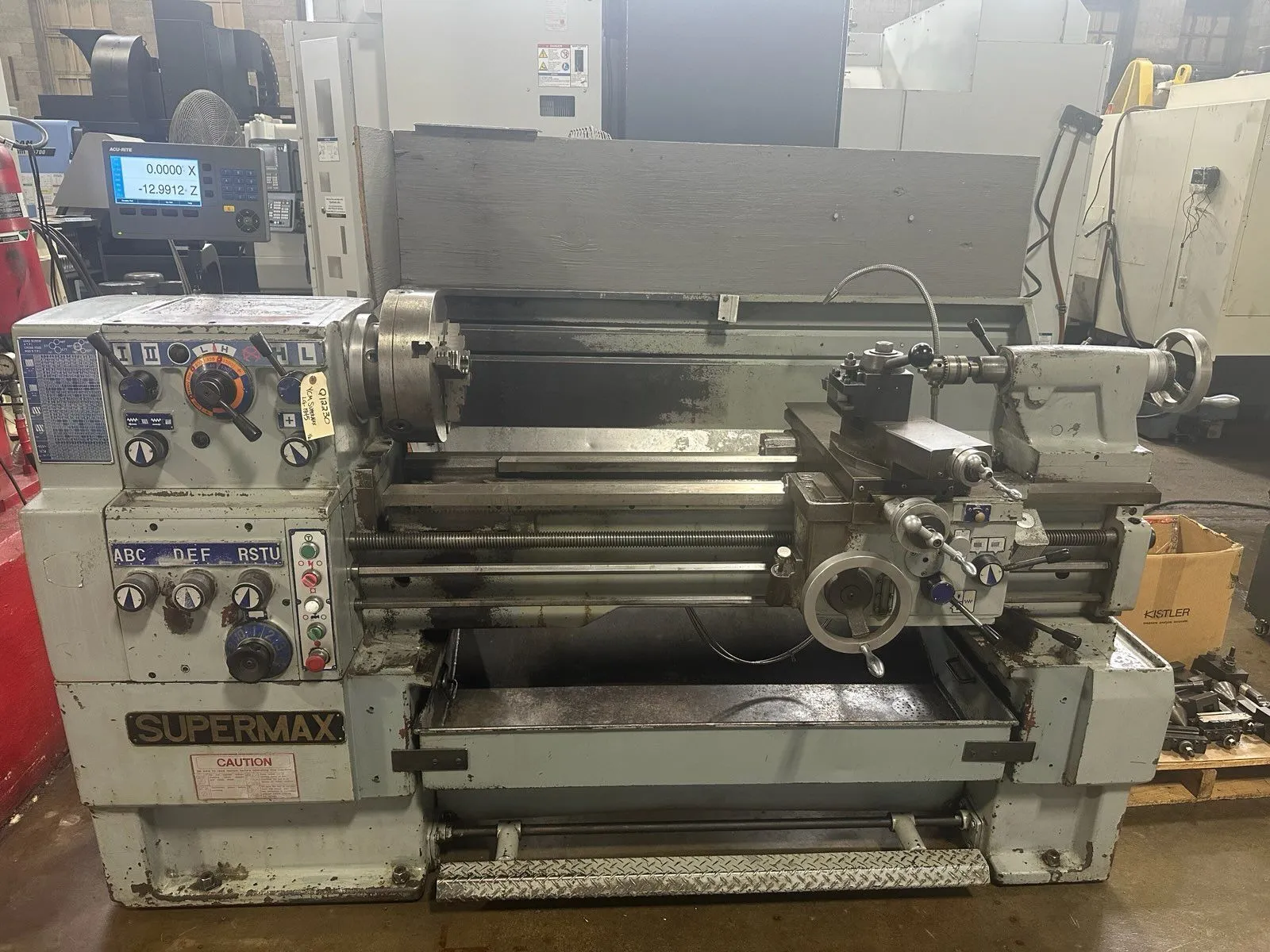

18" x 45" YCM SUPERMAX ENGINE LATHE, Model LG-1845, 18" Swing Over Bed, 11.3" Swing Over Cross Slide, 25.1875" Swing in Gap, 45" Centers, 12" 3-Jaw Chucks, 2.25" Spindle Bore, Tailstock, Inch/Metric Threading, New 1989.
| Max Swing Over Bed | 18" | 457.2 mm |
| Max Swing Over Cross Slide | 11-5/16" | 287.34 mm |
| Max Swing in Gap | 25-3/16" | 639.76 mm |
| Distance Between Centers | 45" | 1,143 mm |
| Bed Width | 11-13/16" | 300.04 mm |
| Bed Height | 13-3/8" | 339.72 mm |
| Cross Slide Travel | 10-7/16" | 265.11 mm |
| Spindle Nose | A1-6 | A1-6 |
| Spindle Bore | 2.25" | 57.15 mm |
| # of Spindle Speeds | 12 | 12 |
| Spindle Speeds Range | 30 - 2,000 RPM | 2,000 RPM |
| # of Threads - Inch | 60 | 60 |
| Inch Threads | 2 - 112 TPI | 2 - 112 TPI |
| # of Threads - Metric | 60 | 60 |
| Metric Threads | 0.2 - 14 mm Pitch | |
| Cross Feeds Range | 0.0007 - 0.01935 in/rev. | 0.5 mm/rev |
| Longitudinal Feeds Range | 0.0014 - 0.0387 in/rev. | 1 mm/rev |
| Tailstock Spindle Travel | 5-7/8" | 149.22 mm |
| Taper of Tailstock Center | No. 4 Morse | No. 4 Morse |
| Tailstock Spindle Diameter | 2-3/8" | 60.325 mm |
| Main Motor Power | 7.5 hp | 5.6 kW |
| Coolant Pump Motor | 1/8 hp | 0.1 kW |
| Dimensions | 96" x 43" x 49" | 96" x 43" x 49" |
| Weight | 4,762 lbs | 4,762 lbs |
2-Axis Accurite DRO, 12" 3-Jaw Chuck & 12" 4-Jaw Chuck, Geared Spindle, Compound Cross Slide w/ 2-Sided Tool Post, Tailstock, Chip Pan, Built In Coolant Pump, Toolholders and Chuck Jaws Included.
