NEW EMSIL VTL-60X63

2015 EMSIL Model VTL 60/63 CNC, Double Column, Vertical Turning Lathe, FANUC 31i
This EMSIL VTL-60/63 vertical turret lathe, manufactured in 2016, is designed for heavy-duty machining with substantial capacity. It features a maximum workpiece diameter of 6300 mm and a maximum machining height of 4600 mm, accommodating very large components. The lathe can handle workpieces weighing up to 150,000 kg, making it suitable for demanding industrial applications.

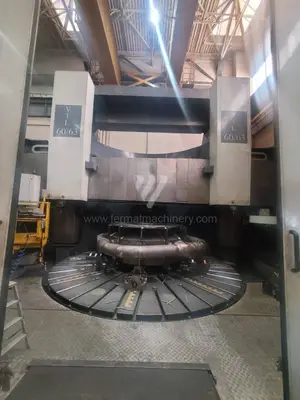

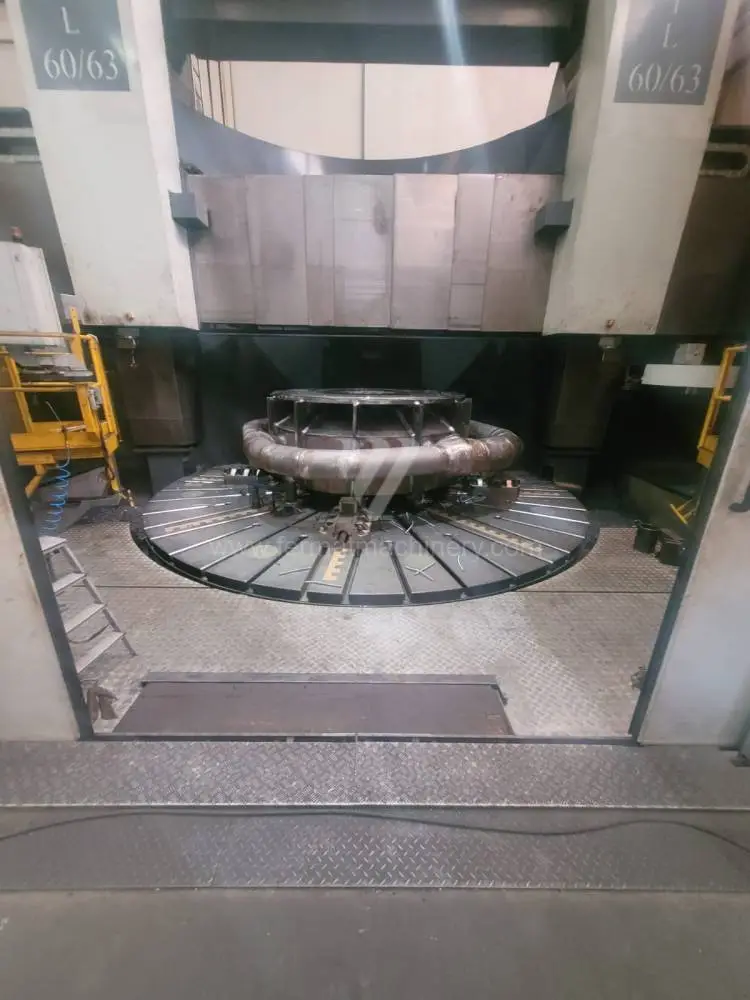

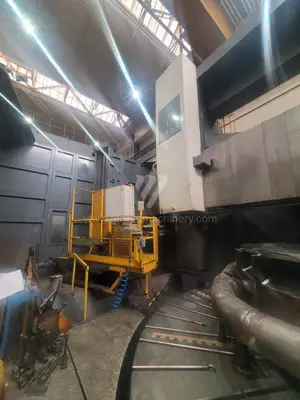

The machine is equipped with a large circular worktable with slots, providing a stable and versatile platform for various machining tasks. Two vertical columns with attached machining heads allow for precise and flexible operations. The faceplate diameter is slightly smaller at 6000 mm, with a turning speed of 30 rpm and a main motor power of 125 kW. The lathe also includes a C axis capable of 0-360° per minute rotation.

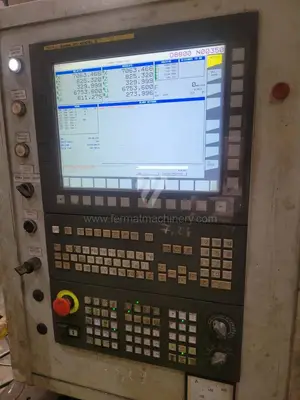

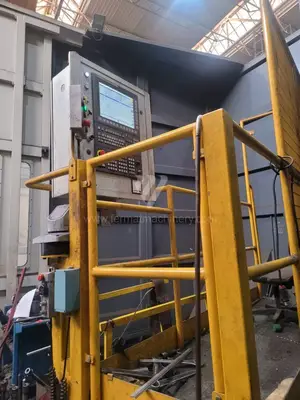

Additionally, the turning RAM provides vertical (Z2) and horizontal (X2) travels of 2400 mm and 7200 mm respectively, with rapid feed rates also up to 6000 mm/min. The CNC system is a FANUC 31i, complemented by Heidenhain linear scales for precise positioning.
The lathe includes a faceplate with 8 jaws and is enclosed fully except for the roof, featuring sliding doors with windows for visibility and a chain-type chip conveyor to manage machining debris. The machine's exterior is painted in RAL-7011 and RAL-7035 colors. The overall condition appears clean and well-maintained, with no visible damage or rust on the exterior surfaces.
EMSIL vertical turning lathes (VTLs) are high-capacity, CNC-driven industrial machines designed for machining large, heavy, and rotationally symmetric parts. Popular models include the VTL-60/63 and VTL 45/50, which feature heavy-duty welded or cast iron construction, live milling capabilities, and Fanuc or Siemens controls. These machines are used for turning, milling, and drilling large components in heavy equipment manufacturing

Control system Fanuc Fanuc 31i
Hours 2,730 hrs
Max. diameter of workpiece 6300 mm 248"
Clamping diameter of rotary table 6000 mm 236.2"
Max. load of table 150000 kg 165 Tons
Max. workpiece height 4600 mm 181"
Cross Rail Vertical Travel 3500 mm 137.8"
Feed of Cross Rail 1000 mm/min
Motor Power 18.5 kw 25 HP
Vertical Ram travel (Z1) 2400 mm 94.49"
Horizontal Ram Travel (X1) 7200 mm 283.5"
Ram size 310x310 mm 12.2" x 12.2"
Turning Speed Range 30
Driven Tools YES
Live Milling Power 40 HP
Live Milling Speed 3,000 RPM
Tool magazine
Axis C 0-360* °
Main motor power 125 kW 167HP

Machine in excellent condition, under power, can be inspected and tested anytime.

Typical Specifications & Capabilities
Structure: Designed with high-rigidity welded construction to withstand heavy cutting forces.
Functionality: Capable of turning, milling, and drilling, featuring live tooling and C-axis positioning.
Capacity: Designed for very large diameter parts, often used for components weighing up to 40 tons.
Control Systems: Primarily equipped with CNC controls such as Fanuc 31i or Siemens Sinumerik 840D SL.
Applications: Ideal for industries such as energy, aerospace, and heavy equipment manufacturing.
