NEW 2015 SCHIESS 18'/6000 Series VBM
Overview
Description
2015 SCHIESS 18'/Model 6000 VBM, Double Column Vertical Turning Lathe, 2 Rams, Fagor 8055

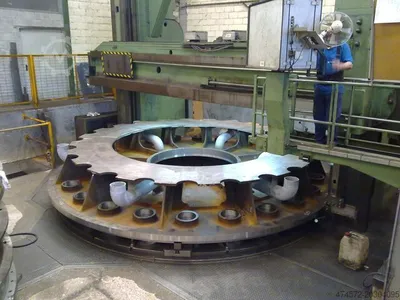

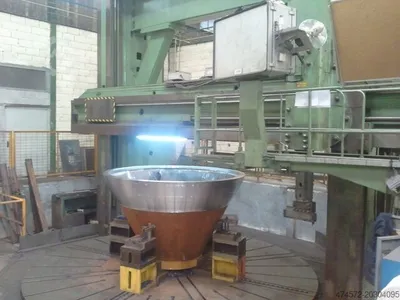

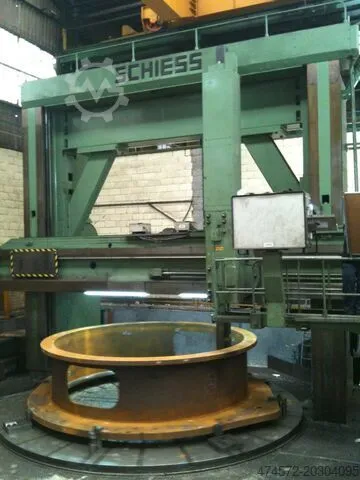

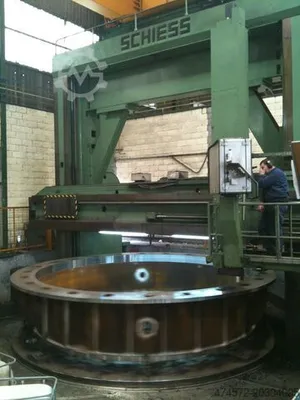

SCHIESS 18’ VBM vertical lathe—a robust machine featuring the oversized capacities typical of its era. Manufactured in Germany and retrofitted in 2015, this lathe is ideal for machining large, heavy workpieces. It is suitable for a wide range of industries, including metallurgy, general machining workshops, mechanical component production, heavy structural fabrication, and energy generation.
Specifications
| Table Dia | 216.5" | 5,499.1 mm |
|---|---|---|
| Swing | 236.2" | 5,999.5 mm |
| Work Ht-U/R | 173.2" | 4,399.3 mm |
| Power | 134 hp | 99.9 kW |
| RPM | 25 RPM | 25 RPM |
| Control | CNC (FAGOR 8055) | CNC (FAGOR 8055) |
| Weight | 220 Tons | 220 Tons |
Model: 18’ VBM
Chuck Diameter: 5,500 mm
Maximum Turning Diameter: 6,000 mm (distance between columns)
Maximum Workpiece Height: 4,400 mm
Movable Crossrail: 3,000 mm travel
RAM (Z-axis): 1,500 mm travel
Maximum Weight on Chuck: 100 tons
Rotation Speeds: Range I: 1-8 rpm
Range II: 5-25 rpm
Workpiece Weight: 80 Tons
Machine Weight: 220 Tons
• CNC Control: FAGOR 8055 (2015)
Machine Condition: In operation and can be inspected under power.
