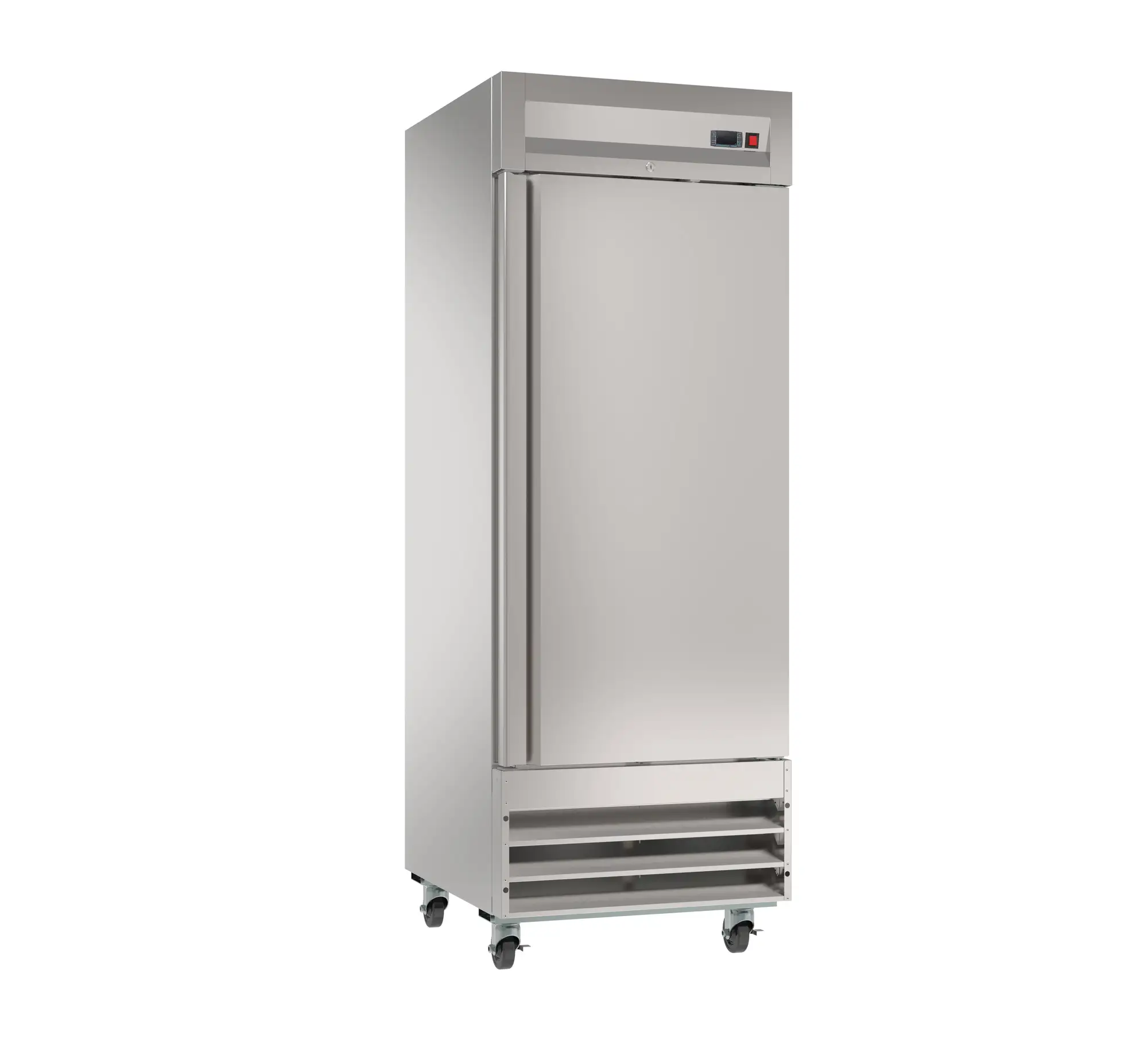

The Compass SD29F single door reach-in freezer delivers reliable, commercial-grade freezing performance in a compact one-section design. Engineered for restaurants, convenience stores, and foodservice operations, this 29-inch wide freezer combines powerful refrigeration with energy-efficient R290 hydrocarbon refrigerant technology. With its stainless steel construction, electronic controls, and self-contained bottom-mount refrigeration system, the SD29F provides dependable frozen food storage while maintaining optimal temperature consistency.
Powerful Refrigeration System
-10°F to 0°F Temperature Range - Maintains proper frozen food storage temperatures
1/2 HP Compressor - Bottom-mount self-contained refrigeration for reliable performance
R290 Hydrocarbon Refrigerant - Eco-friendly refrigerant with superior environmental performance
Electronic Control System - Solid-state thermostat with easy programming and self-diagnostics
Quiet Operation - Designed for low noise levels, ideal for customer-facing areas
Professional Door System
Self-Closing Swing Door - Right-hinged stainless steel door with automatic closing
Integrated Lock - Security lock with keys included for product protection
Heavy-Duty Construction - Built for high-volume commercial use
LED Interior Lighting - Energy-efficient LED illumination for easy product visibility
Durable Construction
Stainless Steel Exterior - Corrosion-resistant finish for easy cleaning and professional appearance
Aluminum Interior & Floor - Lightweight, corrosion-resistant interior construction
Three Adjustable Shelves - PVC coated heavy-duty shelves for flexible storage configuration
Removable Rear Cover - Easy access to condenser for cleaning and service
Mobility & Installation
4" Swivel Casters - Heavy-duty casters with brakes for easy positioning and stability
7.4-Foot Power Cord - NEMA 5-15P plug for standard electrical connections
115V Single Phase - Standard voltage for easy installation
7.1 Amp Draw - Energy-efficient operation
Ideal Applications
This versatile single door reach-in freezer is perfectly suited for:
Quick Service Restaurants - Frozen ingredient storage
Convenience Stores - Ice cream, frozen foods, and beverages
Cafeterias - Bulk frozen food storage
Bakeries - Frozen dough and dessert storage
Catering Operations - Prepared frozen meal storage
Bars & Lounges - Ice and frozen beverage storage
Performance Specifications
Model: Compass SD19F
Configuration: Single door reach-in freezer
Overall Dimensions: 29"W x 32-1/4"D x 82-1/2"H
Temperature Range: -10°F to 0°F
Compressor: 1/2 HP, bottom-mount, self-contained
Refrigerant: R290 Hydrocarbon (eco-friendly)
Door Type: Right-hinged, self-closing with lock
Shelves: Three PVC coated adjustable heavy-duty shelves
Interior Material: Aluminum interior and floor
Exterior Material: Stainless steel
Lighting: LED interior lighting
Mobility: 4" swivel casters with brakes
Electrical: 115V/60Hz/1-phase, 7.1 amps
Power Cord: 7.4 feet with NEMA 5-15P plug
Certifications: cETLus, ETL-Sanitation
Warranty: 2-year parts and labor; 5-year compressor
Why Choose the Compass SD29F?
The Compass SD29F reach-in freezer combines reliable performance with modern refrigeration technology. The eco-friendly R290 hydrocarbon refrigerant provides excellent cooling performance while reducing environmental impact. The electronic control system with solid-state thermostat offers easy programming and self-diagnostic capabilities, ensuring consistent temperature maintenance throughout the storage compartment.
Built with a stainless steel exterior and aluminum interior, this freezer delivers both durability and easy maintenance. The self-closing door with integrated lock provides security and helps maintain proper temperatures by automatically closing after use. The three PVC coated adjustable shelves allow for flexible storage configuration to accommodate various product sizes and storage needs.
The bottom-mount refrigeration system provides quiet operation, making this freezer ideal for installation in customer-facing areas. The removable rear cover allows for easy access to the condenser coil for routine cleaning and maintenance. With its compact 29-inch width and mobile caster design, the SD29F can fit into tight spaces while remaining easy to reposition as needed.
Maximize your frozen storage capacity with the reliability and performance that only Compass commercial refrigeration can deliver.
