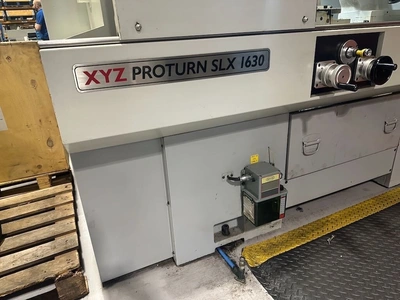

USED 2014 XYZ Proturn SLX 1630
Overview
Description

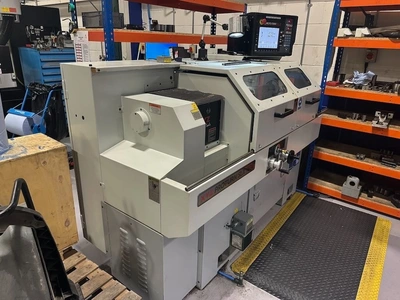

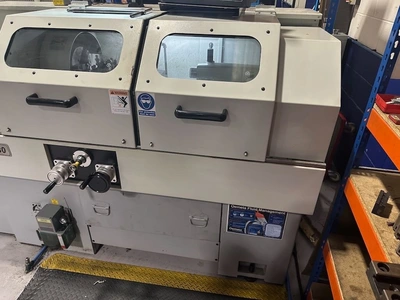

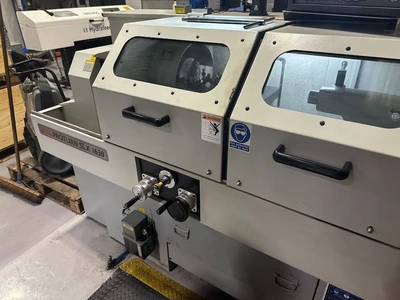

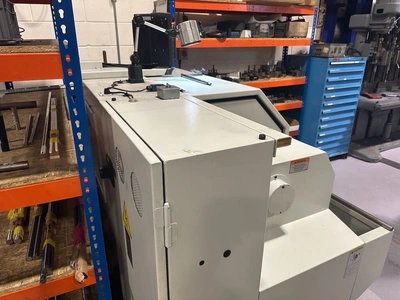

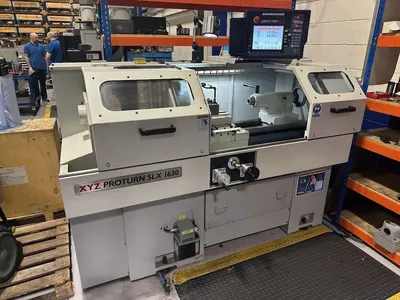

This XYZ Proturn SLX 1630 versatile 2-axis CNC / conversational lathe is in good working order and can be viewed under power. It's designed for both one-off and small batch production. Equipped with the ProtoTRAK SLX control, the machine offers simple programming, high accuracy and excellent reliability for general engineering applications.
Specifications
| Swing | 15.7" | 398.78 mm |
|---|---|---|
| Machining Length | 30" | 762 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 2.13" | 54.102 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 11.81" | 299.97 mm |
| Tailstock | Yes | Yes |
| Control | CNC (SLX) | CNC (SLX) |
| Dimensions | 82x39x71 inches | 82x39x71 inches |
| Weight | 1550kg | 1550kg |
The XYZ Proturn SLX 1630 is a versatile 2-axis CNC / conversational lathe designed for both one-off and small batch production. Equipped with the ProtoTRAK SLX control, the machine offers simple programming, high accuracy and excellent reliability for general engineering applications.
Specifications
Specification Details

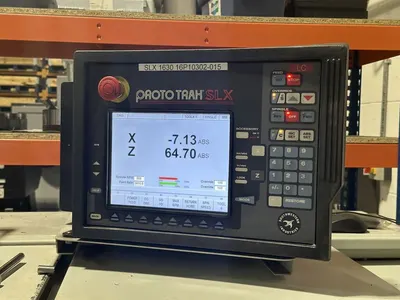

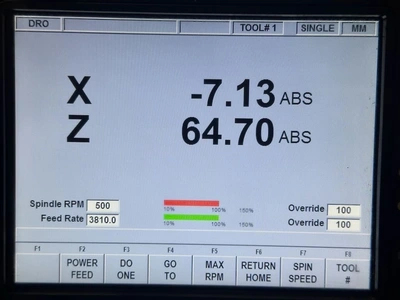

Control ProtoTRAK SLX CNC conversational control
Swing over bed 400 mm (15.7")
Swing over cross slide ≈216 mm (8.5")
Distance between centres 760 mm (30")
Maximum turning diameter ≈300 mm
Spindle bore 54 mm
Spindle nose D1-6 Camlock
Spindle speed range 150 – 2500 rpm
Spindle motor 5.75 kW (7.5 hp)
X-axis travel ≈216 mm
Z-axis travel 760 mm
Tailstock taper MT4
Tailstock quill travel 127 mm
Tool size capacity 20 mm square tooling
Machine dimensions
Specification Value
Length ≈2080 mm
Width ≈1000 mm
Height ≈1800 mm
Weight ≈1500–1550 kg
Standard equipment
ProtoTRAK SLX CNC conversational control

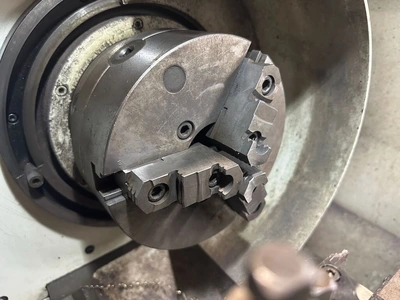

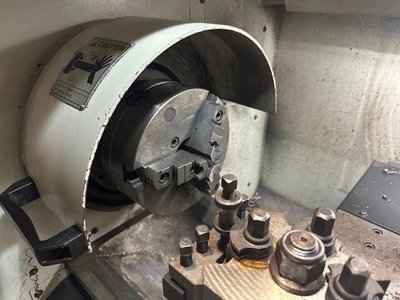

3-jaw chuck

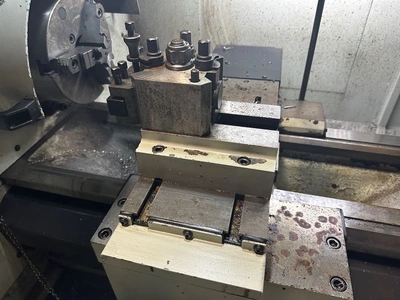

Quick-change toolpost with tool holders
Coolant system
Automatic lubrication
Tailstock

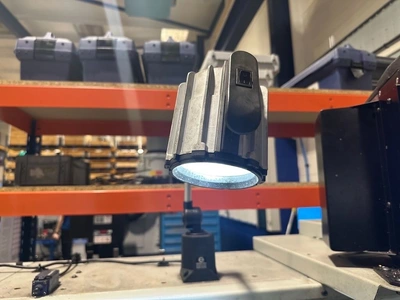

Worklight and chuck guard
Accessories included:

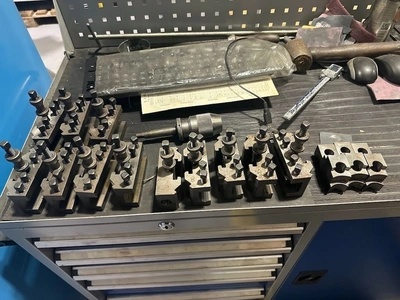

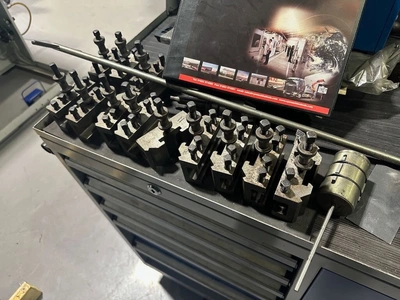

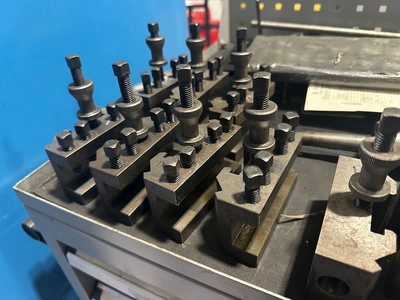

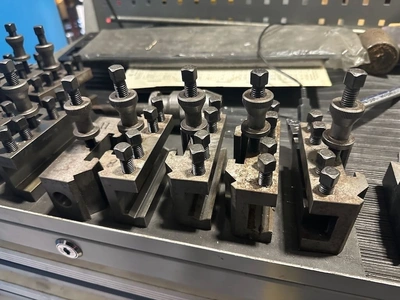

13 x Quickchange Tool Holders,

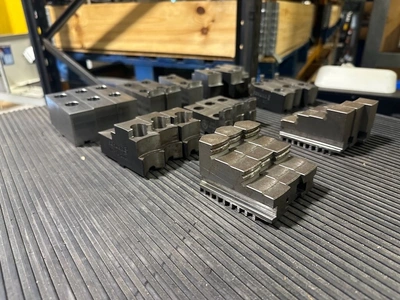

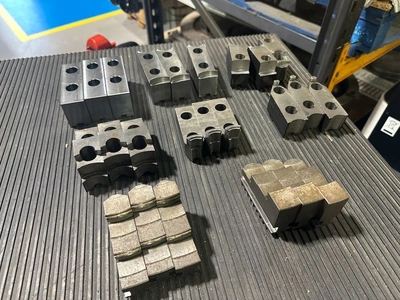

Hard Internal and External Jaws, Selection of soft jaws,

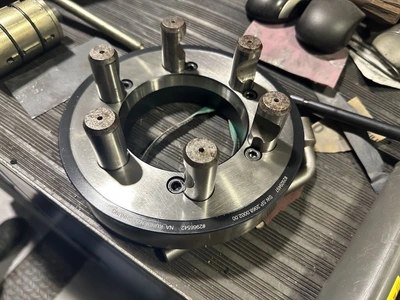

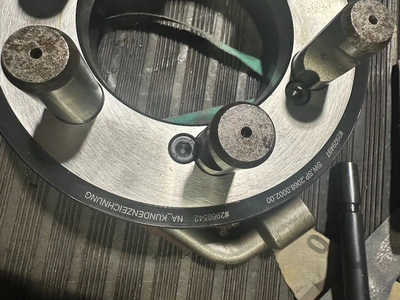

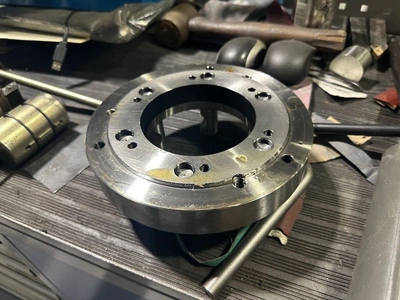

Collect Chuck Back Plate adapter,
Manuals,
Tool Box with Touch Up Paint.
