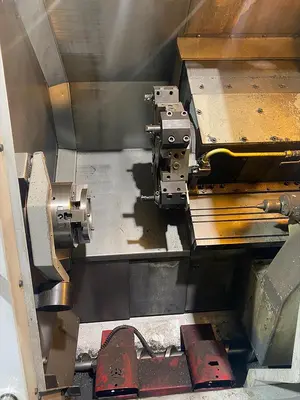

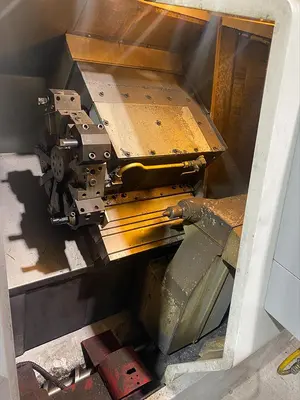

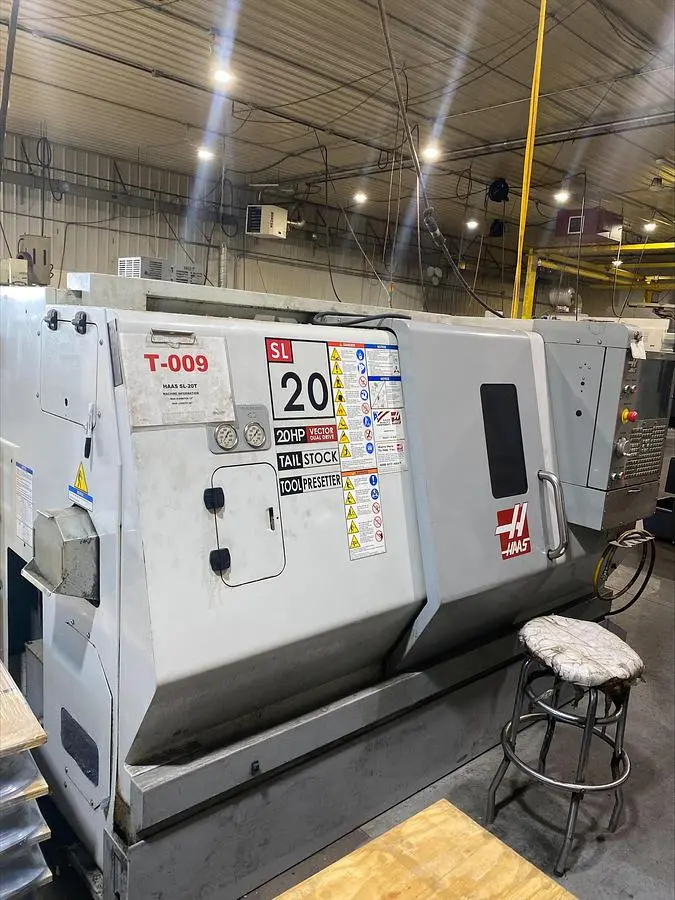

USED 2009 HAAS SL20T

2009 Haas SL20T CNC Lathe

Capacity and Travels
Swing Over Bed: 23.0 inches (584.2 mm).
Max Turning Diameter: 10.3 inches (261.6 mm).
Max Turning Length: 20.0 to 24.0 inches.
Max Bar Capacity: 2.0 inches (50.8 mm).
X-Axis Travel: 8.45 inches (214.6 mm).
Z-Axis Travel: 20.0 inches (508 mm).

Spindle Specifications
Spindle Speed: Maximum 4,000 RPM.
Spindle Motor: 20 hp (14.9 kW) vector drive.
Spindle Nose: A2-6.
Spindle Bore: 3.0 inches.
Draw Tube Bore: 2.06 inches.

Turret and Feed Rates
Turret Capacity: 10 station bolt-on turret.
Turret Index Time: 1 second.
Rapid Traverse (X/Z): 710 IPM to 1,000 IPM.

General Dimensions and Power
Machine Weight: Approximately 9,000 lbs (4,082 kg).
Dimensions: Approximately 127" L x 74" W x 74" H.
Electrical Requirements: 208/230 Volt, 3-Phase.

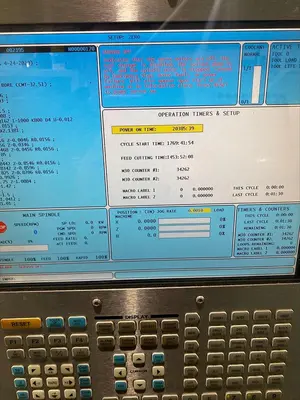

CNC Control: Haas 32-bit CNC Control.
Important: All machinery specifications must be independently verified by buyer.
