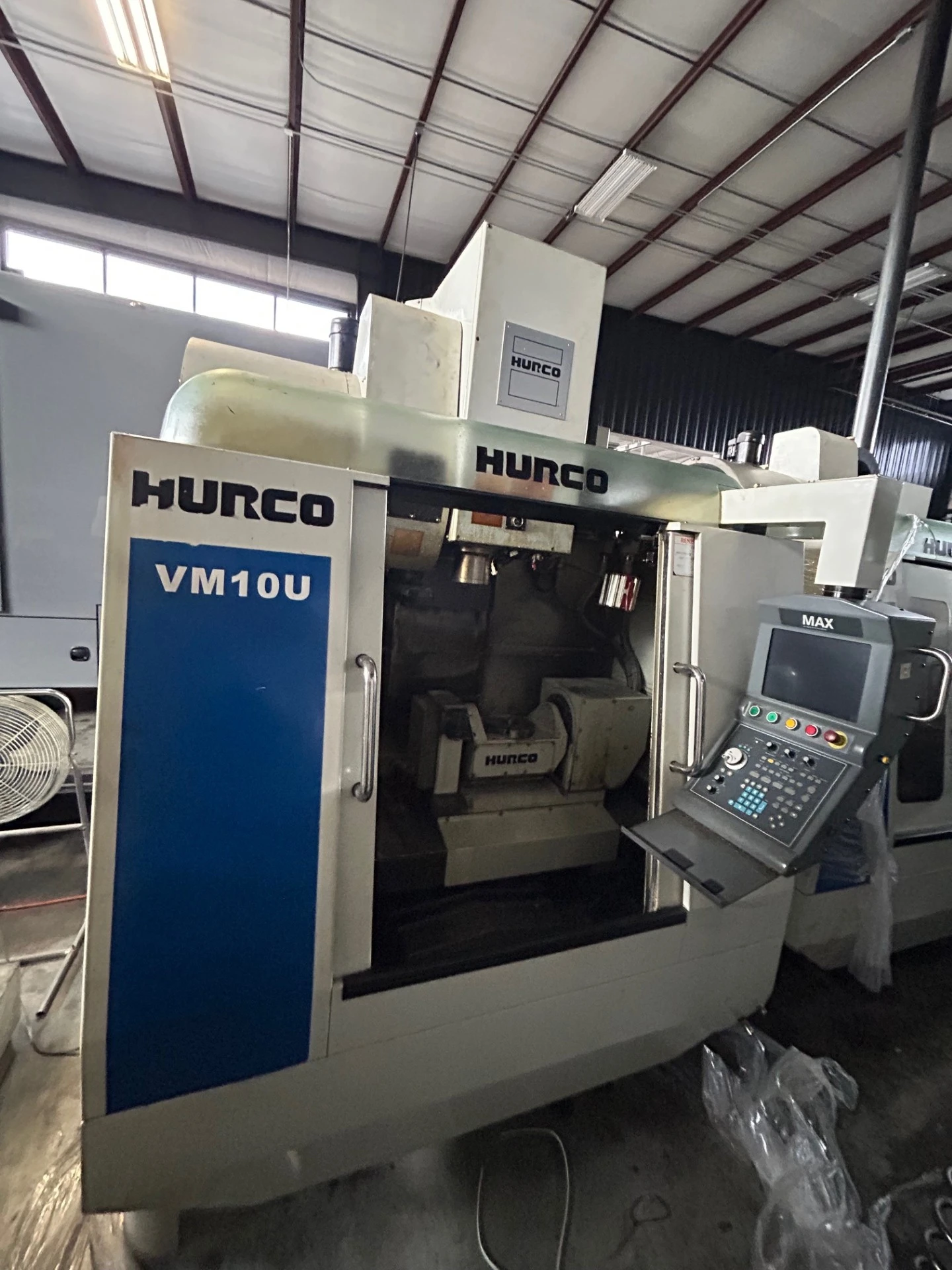

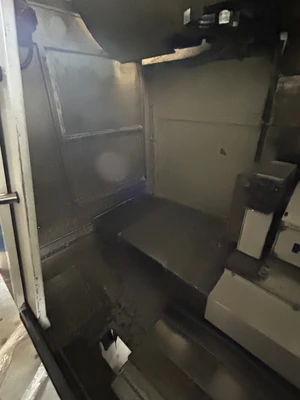

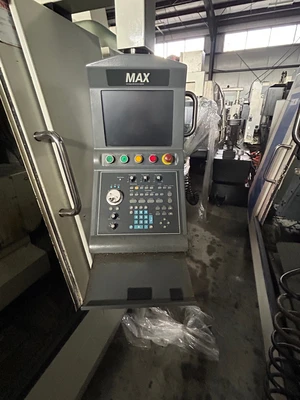

2011 Hurco VM10U 5 Axis Vertical Machining Center

Capacity: VM10U
X, Y, Z -axis Travel 21″ x 16″ x 19″
Table Working Surface 7.8″ Diameter
Maximum Table Load 330 lbs.
Spindle Nose to Table 1.4″ to 20.4″

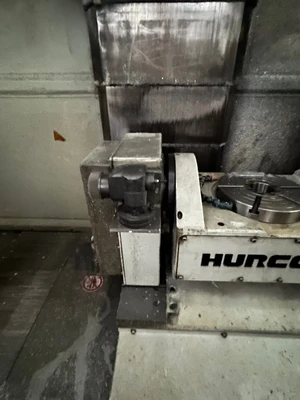

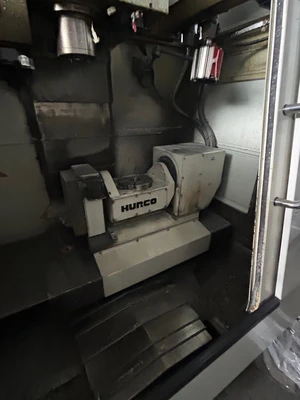

A Axis Motion in Degrees -30 / +110
C Axis Motion 360 Degrees
Maximum Part Size Ø x H 12.6” x 10”

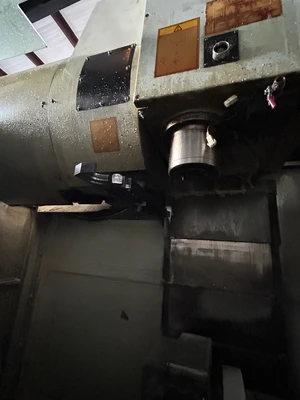

Spindle: VM10U
Spindle Taper CAT 40
Spindle Speed 10,000 RPM
Spindle Motor Horsepower (1 min.) 12 HP
Spindle Motor Torque (1 min.) 42 Ft. lbs @ 1500 RPM
Motion: VM10U
Rapid Traverse Rate X,Y / Z (ipm) 945 all axes
Cutting Feed Rate 600 ipm
Least Command Increment 0.0001”
A Axis Feedrate 25 RPM
C Axis Feedrate 25 RPM
A Axis Clamping Force 590 ft / lbs
C Axis Clamping Force 295 ft / lbs
Positioning Accuracy X,Y/ Z -/+ 0.0002”
Repeatability X,Y/Z -/+ 0.0001”
Positioning Accuracy A Axis +/- 22 Arc-seconds
Positioning Accuracy C Axis +/- 7 Arc-seconds
Repeatability Accuracy A Axis 6 Arc-seconds
Repeatability Accuracy C Axis 4 Arc-seconds
Automatic Tool Changer: VM10U
Number of Stations 20 / CAT 40
Tool to Tool ATC Time 3 Seconds
Tool Changer Type Electronic
Maximum Tool Diameter 3.5”
Maximum Tool Length 9.8”
Machine Dimensions: VM10U
Floor Space Required (W x D x H) 74.8” x 63.6” x 99.2”
Maximum Operating Dimensions
(W x D x H) 117.9” x 101.4” x 99.2”
Machine Weight 6,550 lbs
Machine Shipping Weight 6,990 lbs
Shipping Dimensions (W x D x H) 77.2” x 90.5” x 95.5”

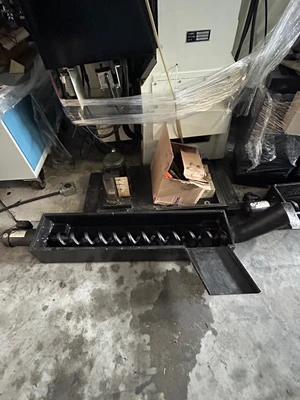

Optional Chip Conveyor Shipping Dims. 116” x 32” x 70”
Optional Chip Conveyor Shipping Weight 825 lbs
Voltage Required 208-240 VAC / 60Hz
Power Rating 22 KVA
Air Requirements 5 CFM @ 80-100 ps
