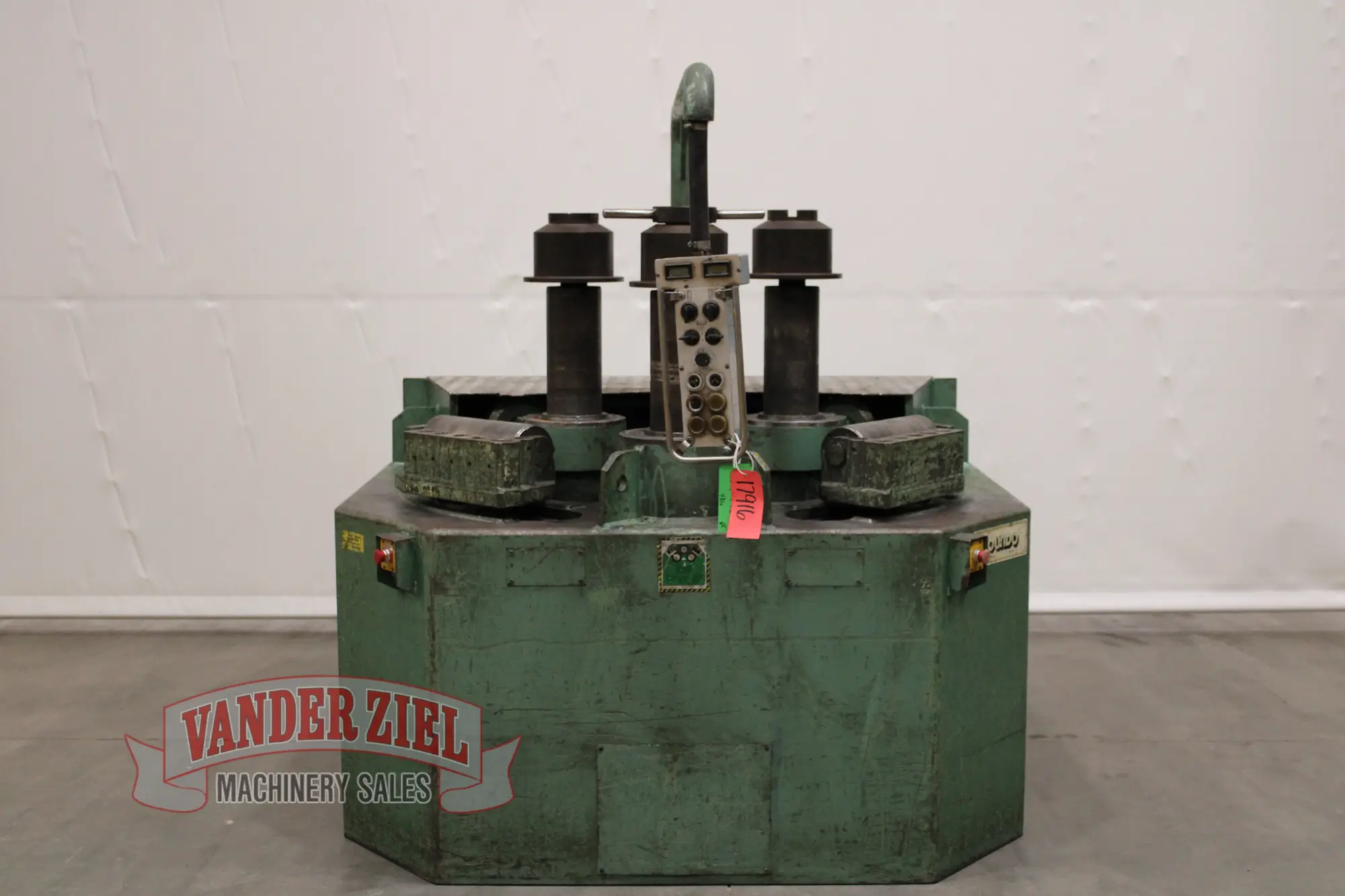

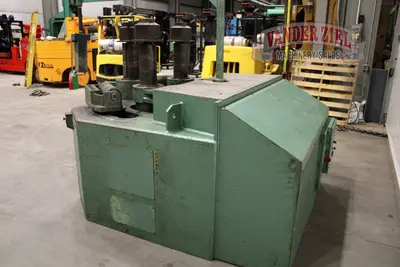

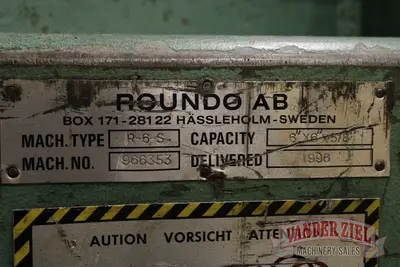

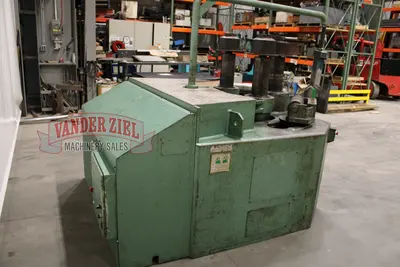

Roundo 6″ x 6″ x 5/8″ Angle Roll, Model R-6-S

Specs
Diameter of Bending Rolls: 18″
Motor at 440/480 V: 23 HP
Approx. Weight: 16,300 lbs
Floor Area (Horizontal Mode): 48″ x 100″
Floor Area (Vertical Mode): 76″ x 87″
Section Modulus: 6 – 10 in3
Included Equipment

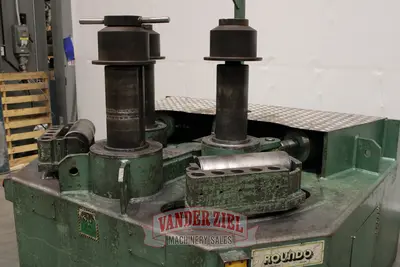

-Standard set of rolls for angle iron leg-out and leg-in, flat bar on-flat and on-edge, “T”, small rounds and squares
-Full hydraulic drive with controls, built-in braking and infinitely variable, 0 to 40″ per minute
-Hydraulically operated and powered adjustment of the lower rolls, infinitely variable, 0 to 40″ per minute
-Four-directional hydraulically powered and operated guide rolls
-Combined horizontal/vertical design
-Push button controls in a portable or swing-arm console for all powered functions
-Electronic variable speed control by potentiometer, mounted in the control console
-Electric motor and controls with emergency stop control and key-lock switch for power supply
-Dial indicators and scales for the positions of the lower rolls and guide rolls
Capacity Chart
Section
Capacity
Diameter
Angle Leg-Out
6″ x 6″ x 5/8″
1-1/2″ x 1-1/2″ x 3/16″
⌀85″
⌀26″
Angle Leg-In
5″ x 5″ x 3/4″
1-1/2″ x 1-1/2″ x 3/16″
⌀85″
⌀34″
T-Section, Leg-Out
WT 6″
Small Sections
⌀60″
⌀22″
T-Section, Leg-In
WT 5″
Small Sections
⌀65″
⌀22″
T-Section, Leg-Down
WT 6″
Small Sections
⌀60″
⌀22″
Flat Bar On-Flat
6″ x 1-1/2″
5″ x 1-3/4″
1-1/2″ x 1/4″
⌀70″
⌀45″
⌀20″
Flat Bar On-Edge
10″ x 2″
Small Sections
⌀40″
⌀20″
Square Bar
3-1/2″ x 3-1/2″
Small Sections
⌀45″
⌀20″
Round Bar
⌀ 4-3/8″
Small Sections
⌀55″
⌀16″
Pipe
6″ Sch. 40
Small Sections
⌀85″
⌀16″
Square Tube
5″ x 5″ x 5/16″
–
S & WF Beams
W 12″ x 35#
Small Sections
⌀45″
⌀20″
WF Beams
W 8″ x 31#
W 6″ x 25#
Small Sections
⌀45″
⌀30″
⌀20″
Channel Leg-Out
C 12″ x 30#
Small Sections
⌀40″
⌀20″
Channel Leg-In
C 12″ x 30#
Small Sections
⌀45″
⌀20″
Channel On X-X Axis
C 7″ x 12.25#
C 3″
⌀350″
⌀70″
Beam On X-X Axis
W 6″ x 12.25#
W 3″
⌀120″
⌀40″
Beam On X-X Axis
W 5″ x 19#
W 3″
⌀100″
⌀40″
