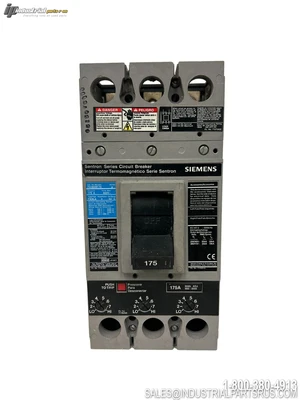

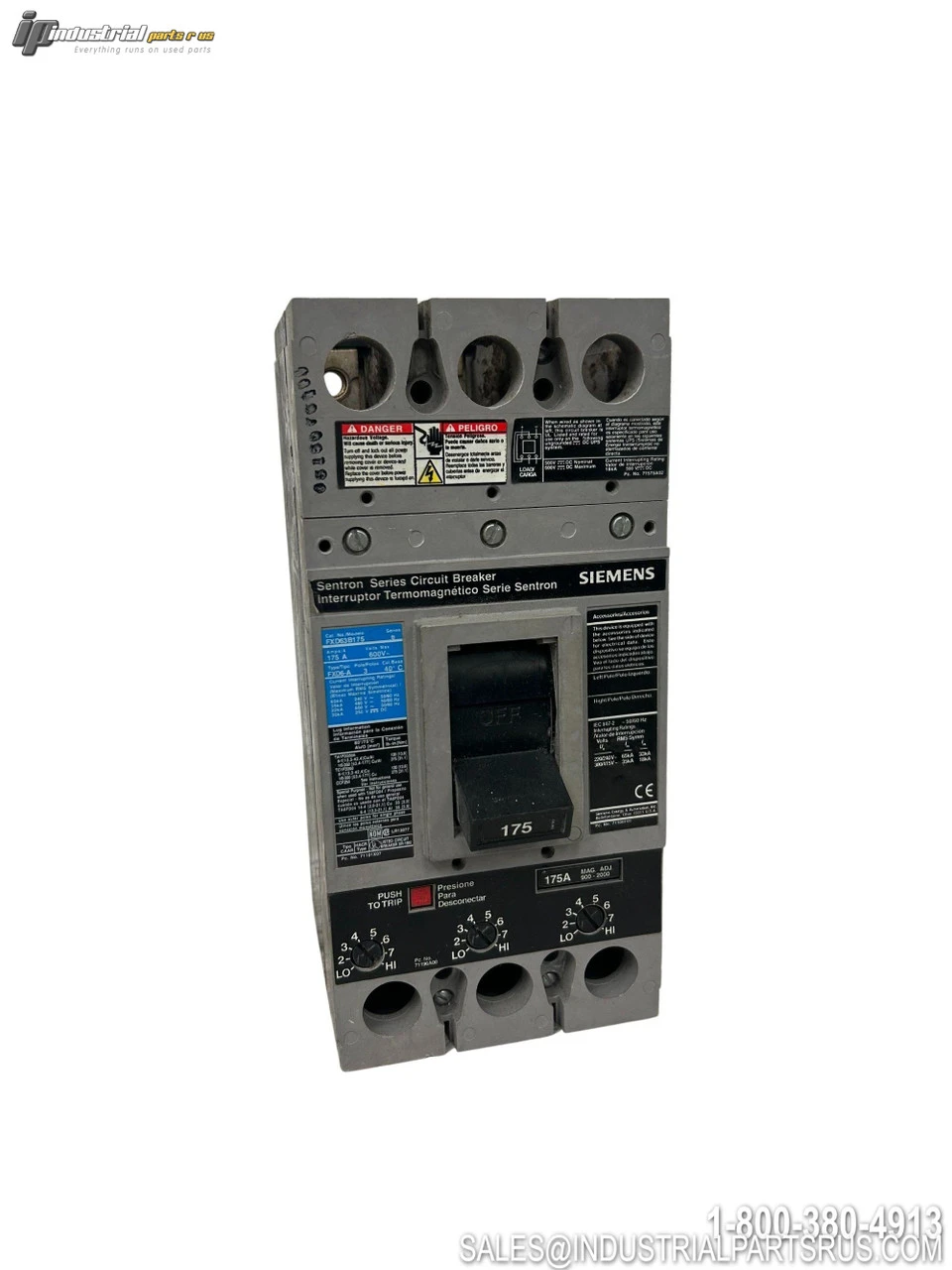

The Siemens FXD63B175 is a high-performance 3-pole molded case circuit breaker designed for industrial electrical distribution systems. This thermal magnetic circuit breaker provides reliable overcurrent protection with a 175 amp rating and 600VAC voltage capacity, featuring non-interchangeable trip units and standard 40°C operating temperature rating.
Specification
Value
Brand
Siemens
Model/Part Number
FXD63B175
Type
FXD6
Frame Type
FD
Series
Sentron
Current Rating
175 Amps
Voltage Rating
600V AC
Number of Poles
3
Phase
3
Interrupting Rating at 600V
22 kAIC
Interrupting Rating at 480V
35 kAIC
Interrupting Rating at 240V
65 kAIC
Trip Type
Thermal Magnetic
Trip Functions
LI - Long-Time and Instantaneous
Trip Unit Type
Non-Interchangeable
Trip Range
900 - 2000 A
Operating Temperature
40°C Standard
Mounting Type
Bolt-On
Frequency
50/60 Hz
Dimensions
4.5" W x 9.5" H x 4" D
Weight
8.55 lbs
HACR Rating
Yes
UL Listed
UL 489
Standards
UL 489, IEC 60947-2
Reverse Fed Applications
UL Listed
Lugs
No Lugs Installed
We warranty all items for 30 days from date of purchase.
| Weight | 5.00 LBS | 5.00 LBS |
SKU: AI0774
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Bolt-On
Current Rating: 175A
Full Load Amps: 175
Application: Industrial/Commercial Electrical Panel
Manufacturer: Siemens
Part Number: FXD63B175
Shelf: J-6
Model: FXD63B175
MPN: FXD63B175
Voltage: 600V
Type: Circuit Breaker
Material: Molded Case
