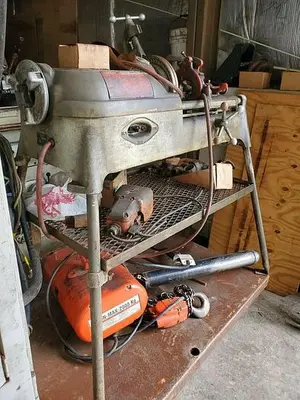

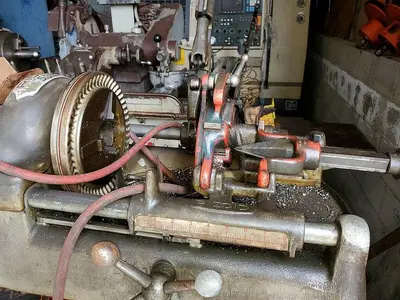

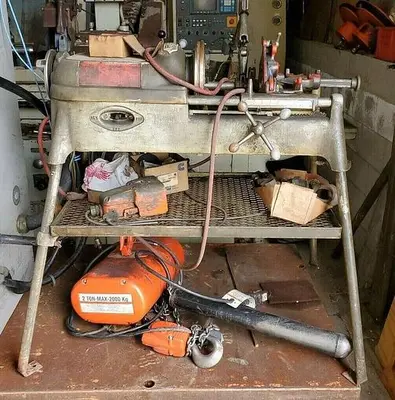

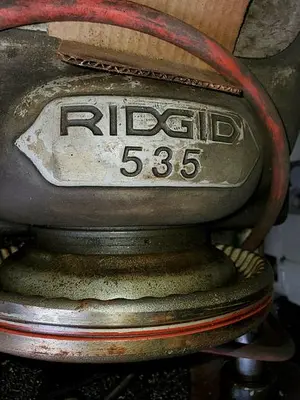

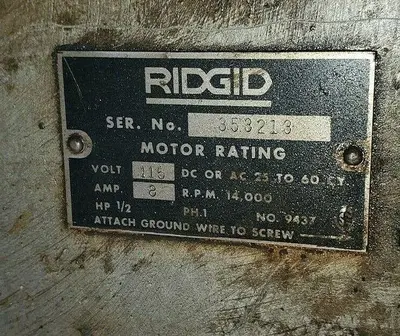

1973 RIDGID 535 Pipe Threading MachineThis vintage 1973 RIDGID 535 is a definitive shop workhorse, representing the era of all-metal industrial construction. Unlike modern portable units, this stationary platform is engineered for continuous, high-volume production with a focus on stability and cooling. Manufactured during a period known for robust motor windings and heavy-duty gear housings, this RIDGID 535 is built to provide decades of reliable service.The machine features a built-in automatic oiling system with a massive reservoir, ensuring your dies stay cool and lubricated for clean, precise threads every time. Whether you are threading black iron, galvanized, or stainless steel pipe, the high-torque 36 RPM motor delivers the consistent power required for professional-grade results.Technical SpecificationsPipe Capacity: 1/8" - 2" (3mm - 50mm) standard; up to 6" with geared threadersBolt Capacity: 1/4" - 2" (6mm - 50mm)Motor: 1/2 HP, Universal Reversible, 115VSpindle Speed: 36 RPMOil System: Integrated self-priming gerotor pump with automatic flowOil Reservoir: 1.75 Gallon capacityChuck: Hammer-type speed chuck with replaceable rocker-action jaw insertsRear Centering Device: Cam-action, turns with the chuckKey FeaturesIndustrial Durability: Authentic 1970s American-made casting provides superior rigidity and vibration dampening.Automatic Lubrication: The gerotor oil pump automatically floods the work area, extending die life and improving thread finish.Large Chip Tray: Features an integrated, high-capacity tray and scrap collection system to keep your shop floor clean.Full Serviceability: Compatible with standard RIDGID 811A universal die heads and readily available modern replacement parts.Includes Universal Die Sets Includes Die Heads (2) Mounted on Stand
Type: Machine
Tool type: Die Head
Thread standard: NPT
* Oil Reservoir: 1.75 Gallon capacity
* Spindle Speed: 36 RPM
