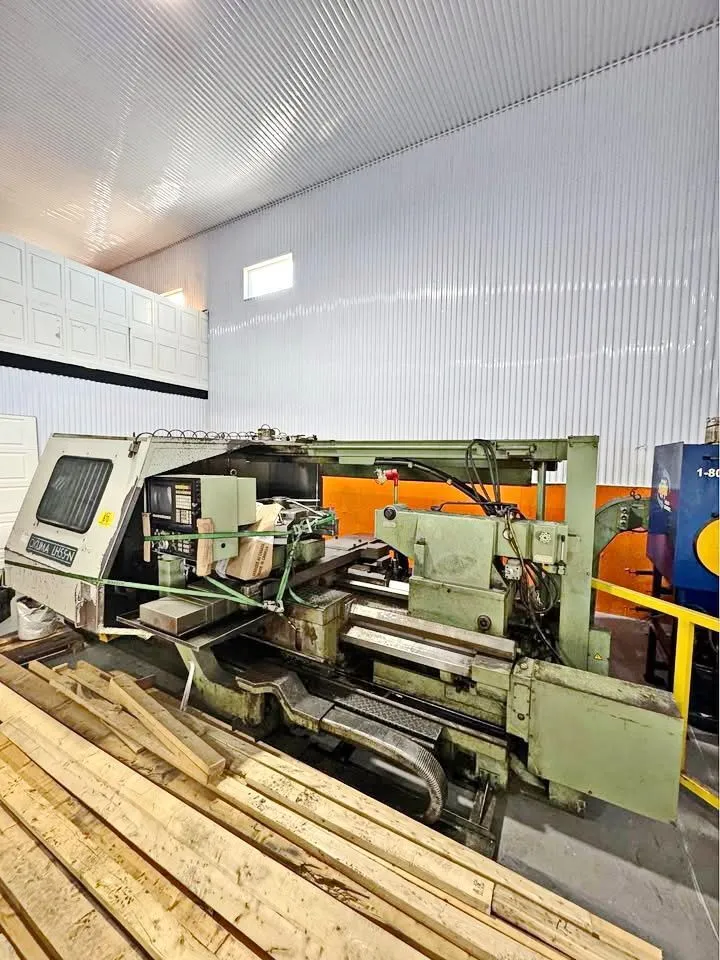

1992 Okuma LH55-N CNC Lathe, 24" 3-Jaw Hydraulic Chuck, Programmable Tailstock, Chip Conveyor, Overhead Chip Guard, Automatic Lubrication System, Backup Parameters
| Swing | 43.3" | 1,099.8 mm |
| Max Turning Dia | 26.57" | 674.88 mm |
| Center Distance | 78.7" | 1,999 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 4.1" | 104.14 mm |
| Spindle Bore | 6.7" | 17 cm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Spindle Nose | A2-11 | A2-11 |
| Tailstock | Yes | Yes |
| Tailstock Taper | MT6 | MT6 |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Turret Capacity | 8 | 8 |
| Control | CNC (Okuma OSP 5000L) | CNC (Okuma OSP 5000L) |
| Dimensions | 275" X 98" X 81" | 275" X 98" X 81" |
| Weight | 26,500 lb | 26,500 lb |
24" 3-jaw hydraulic chuck
V8 8-station turret
Hydraulic programmable tailstock
Chip conveyor
Coolant system
Overhead chip guard
Automatic lubrication system
Heavy-duty box way construction
hydraulic system
backup parameters
