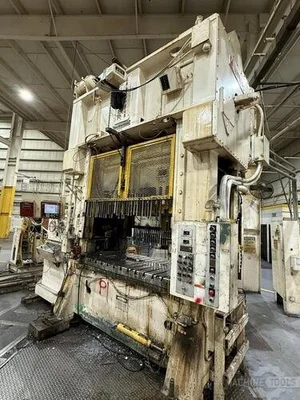

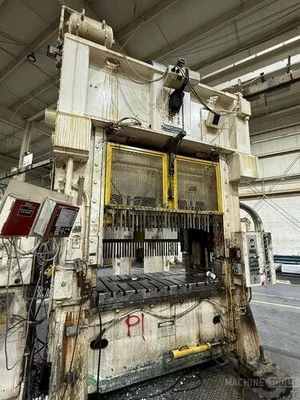

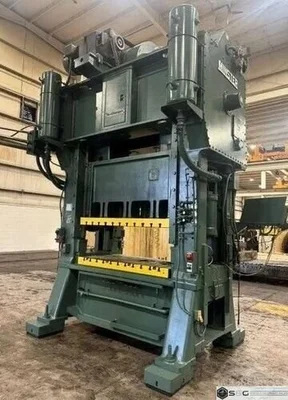

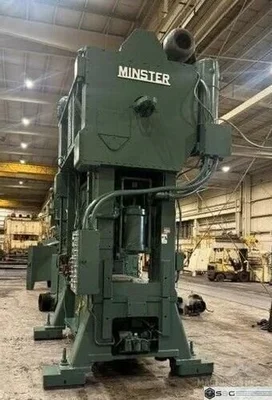

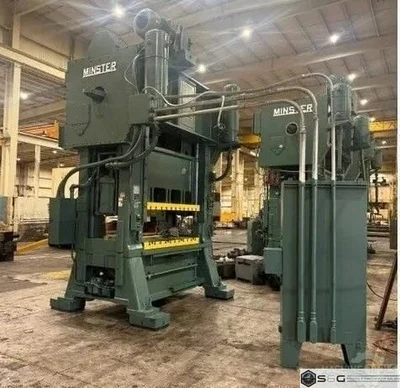

USED 1986 MINSTER E2-200-72-42

200-ton Minster E2-200-72-42 Straight Side Metal Stamping Press - Double Crank, Single Action Year 1987

Tonnage: 200
Stroke: 10 inches
Shut Height: 28 inches
Adjustment: 6 inches
Bed Size: 72" LR x 42" FB
Ram Area: 72" LR x 42" FB
SPM: 30-60 VSPM

Used 200-ton Minster Straight Side Mechanical PressModel E2-200-72-42 Hevi-Stamper200-ton Capacity8" Stroke31" Shut Height on Bed6" Adjustment72" LR x 42" FB Bed Area72" LR x 42" FB Slide Area30-60 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesMinster Monitor Flow Lubrication SystemT-Slotted Ram and BolsterFree Standing Console Controls8-Point Gibs - Brass LinedKnockouts in Slide37" Floor to Top of Bolster74" Distance Between Gibs30 HP Main Drive Motor - 1800 RPM25" Wide WindowsFloor StandingApproximate Weight 64,000 lbs.This Used 200-ton Minster Hevi-Stamper can be seen underpower in the S&G Press Warehouse.Click for more 200-ton Stamping Press Options
This used 200-ton Minster Hevi-Stamper Model E2-200-72-42 is a high-performance straight-side mechanical stamping press engineered for demanding progressive and transfer die applications. Known for its robust construction, this 200-ton Minster press delivers the precision required for high-volume metalworking.

With a highly desirable 10" stroke and a variable speed range of 30–60 VSPM, this eccentric shaft press features a 72" x 42" bed area and 8-point brass-lined gibs for maximum stability. Key technical features include an air clutch and brake, Minster Monitor Flow lubrication, and air counterbalances.
