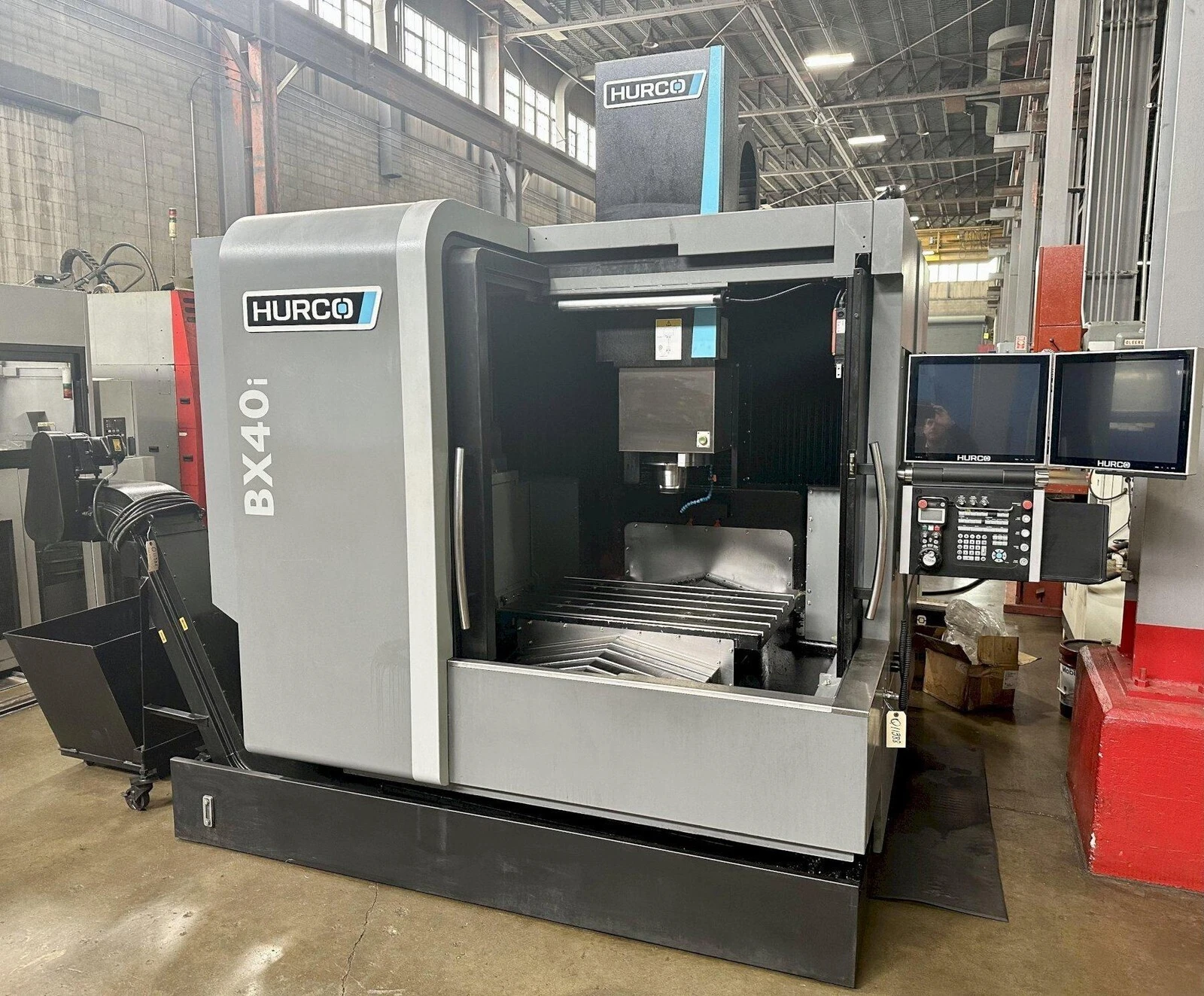

Used Vertical Machining Center offers robust performance with a 47 HP, 18,000 RPM spindle, 40.2" x-axis travel, and 2,204 lbs load capacity. Equipped with WinMax 5 CNC Control, 30 station ATC, and coolant system.
| X | 40.2" | 1,021.1 mm |
| Y | 27.6" | 701.04 mm |
| Z | 19.7" | 500.38 mm |
| Power | 47 hp | 35 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK 63 | HSK 63 |
| Table-W | 35.4" | 899.16 mm |
| Table-L | 16.1" | 408.94 mm |
| # Axis | 3 | 3 |
| Weight | 21,000 LBS | 21,000 LBS |
Table Load Capacity 2,204 LBS
T-Slot Size 6" x 0.7"
X-Axis (Longitudinal Travel) 40.2"
Y-Axis (Cross Travel) 27.6"
Z-Axis (Vertical Travel) 19.7"
Max/Min Clearance Table Top to Spindle Nose 26.7" / 7"
Rapid Traverse Rate, All Axes 1,417 IPM
Spindle Horsepower 47 HP
Max Spindle Speed 18,000 RPM
Spindle Taper HSK 63
Torque, Up To 88 FT-LBS @ 2,800 RPM
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 30
Automatic Tool Changer Style Side-Mount
Approximate Machine Dimensions 188.3" x 138.5"
Approximate Machine Height 124"
Approximate Machine Weight 21,000 LBS
WinMax 5 Double Screen CNC Control, 18,000 RPM High Speed Spindle, Advanced Verification Graphic, DXF, NC Productivity Package, Helical Ramp, 3D Mold, Swept Surface, HSK Spindle, 30 Station Automatic Tool Changer, 300 PSI Coolant Thru Spindle, Chip Conveyor, Coolant System.
