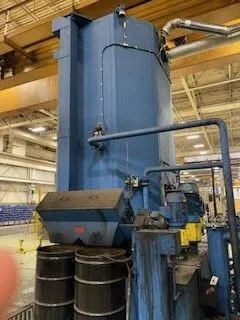

USED STINGRAY SR84112

The StingRay SR84112 is a heavy-duty aqueous parts washer engineered for industrial cleaning of oversized components. Its clamshell design and large turntable facilitate efficient loading and unloading of heavy parts using cranes or hoists. Ideal for locomotive, diesel engine, and large fabrication applications where thorough, repeatable cleaning is required.

KEY FEATURES

• Industrial clamshell enclosure with full top-opening access
• Large turntable for rotation of parts during wash cycle
• Closed-loop aqueous cleaning system with filtration
• Oscillating wash manifold for uniform spray coverage
• Safety interlocks and level control systems included
• Programmable cycle timer for repeatable results

WORK AREA

Turntable Diameter: 84 in (2134 mm)
Work Height: 112 in (2845 mm)
Overall Dimensions: ~139 in W × 132 in D × 173 in H

CAPACITY

Standard Load Rating: 15,000 lbs (6,800 kg)
Optional Heavy-Duty Rating: 30,000 lbs (13,600 kg)
Machine Weight (Approx): 26,500 lbs (12,020 kg)

WASH SYSTEM SPECIFICATIONS

Wash Medium: Aqueous cleaning solution
Spray System: High-coverage oscillating spray manifold
Nozzles: Multiple strategically placed high-impact nozzles

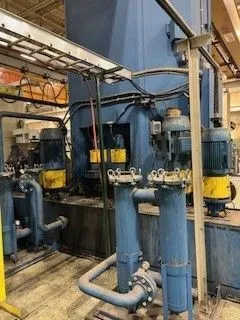

PUMP & MOTOR

Standard Pump: 70 HP industrial duty
Flow / Pressure: ~500+ GPM @ ~150+ PSI (dependent on configuration)
Optional Pump Upgrade: 140 HP (for enhanced power and throughput)

TEMPERATURE

Standard operating temperature range: up to 140–190°F (60–88°C)
Heated wash designed for heavy grease, oil, and carbon removal.

STANDARD INCLUSIONS

Filtration and recirculation system
Turntable rotation control

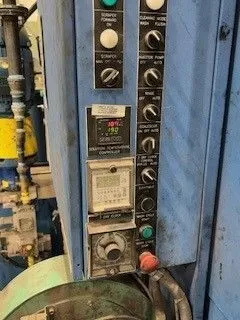

Programmable wash timer
Counterbalanced clamshell lid
Emergency stop and safety shutdown circuits

Disclaimer

Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
