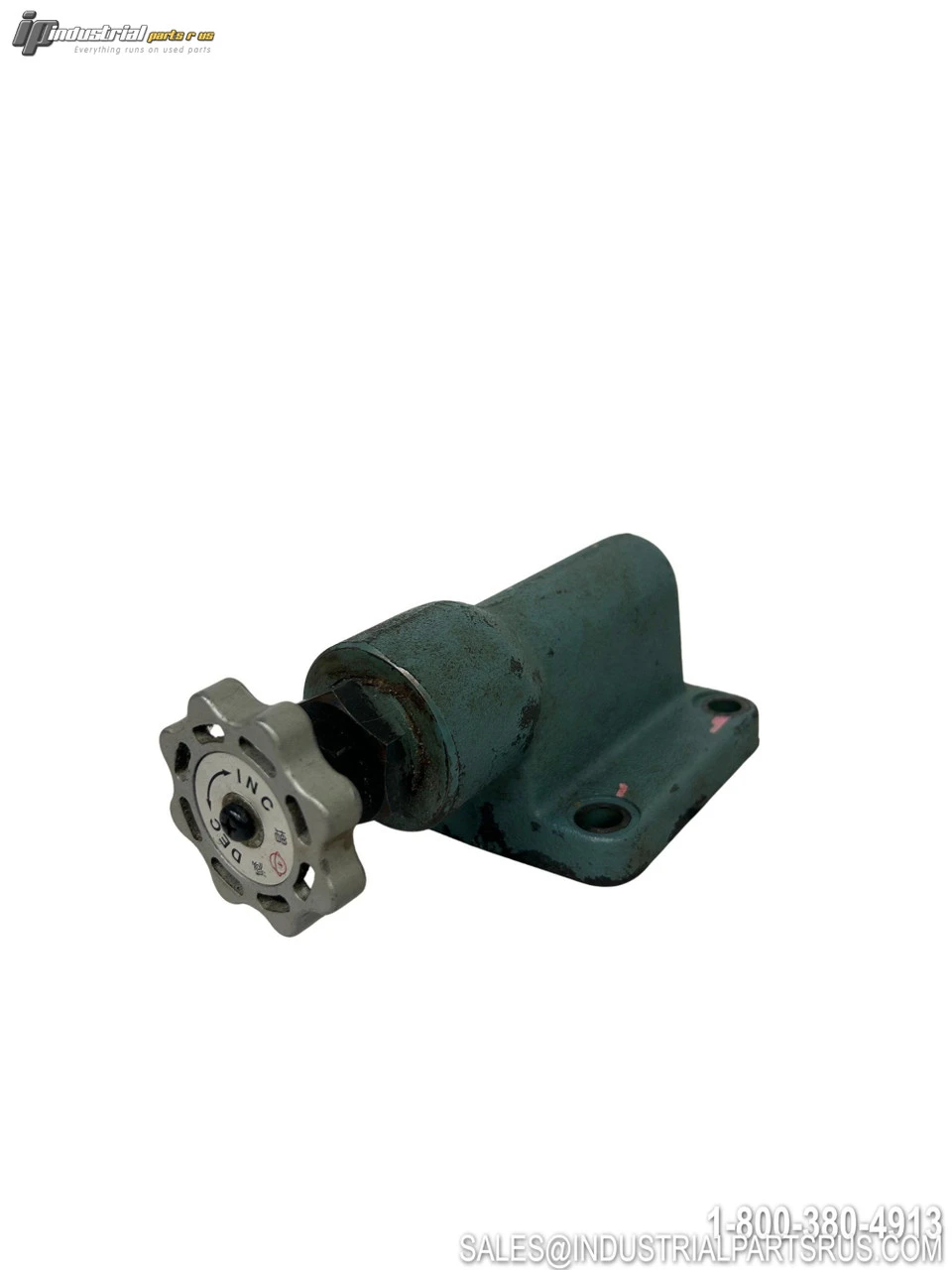

USED DAILKIN HDRIR-G02-3

The Daikin HDRIR-G02-3 is a direct-operated relief valve from Daikin's H Series hydraulic components. This valve features low override pressure design, providing almost equivalent performance to pilot-operated types, and includes vibration-proof structure to prevent chattering even in high pressure applications.
Specification
Value
Brand
Daikin
Model/Part Number
HDRIR-G02-3
Product Type
Direct Operated Relief Valve
Series
G02
Valve Size
G02 (Size 02)
Pressure Adjustment Range
0.9~7 MPa (9~70 kgf/cm²)
Connection Method
Gasket mounting type
Port Size
Rc1/4
Maximum Operating Pressure
35 MPa (350 kgf/cm²)
Flow Rate
100 L/min (G02 series)
Features
Vibration-proof structure, Anti-chattering design
We warranty all items for 30 days from date of purchase.

SKU: AI0731
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Dailkin
Part Number: HDRIR-G02-3
Shelf: B14
Model: HDRIR-G02-3
MPN: HDRIR-G02-3
Type: Relief Valve
