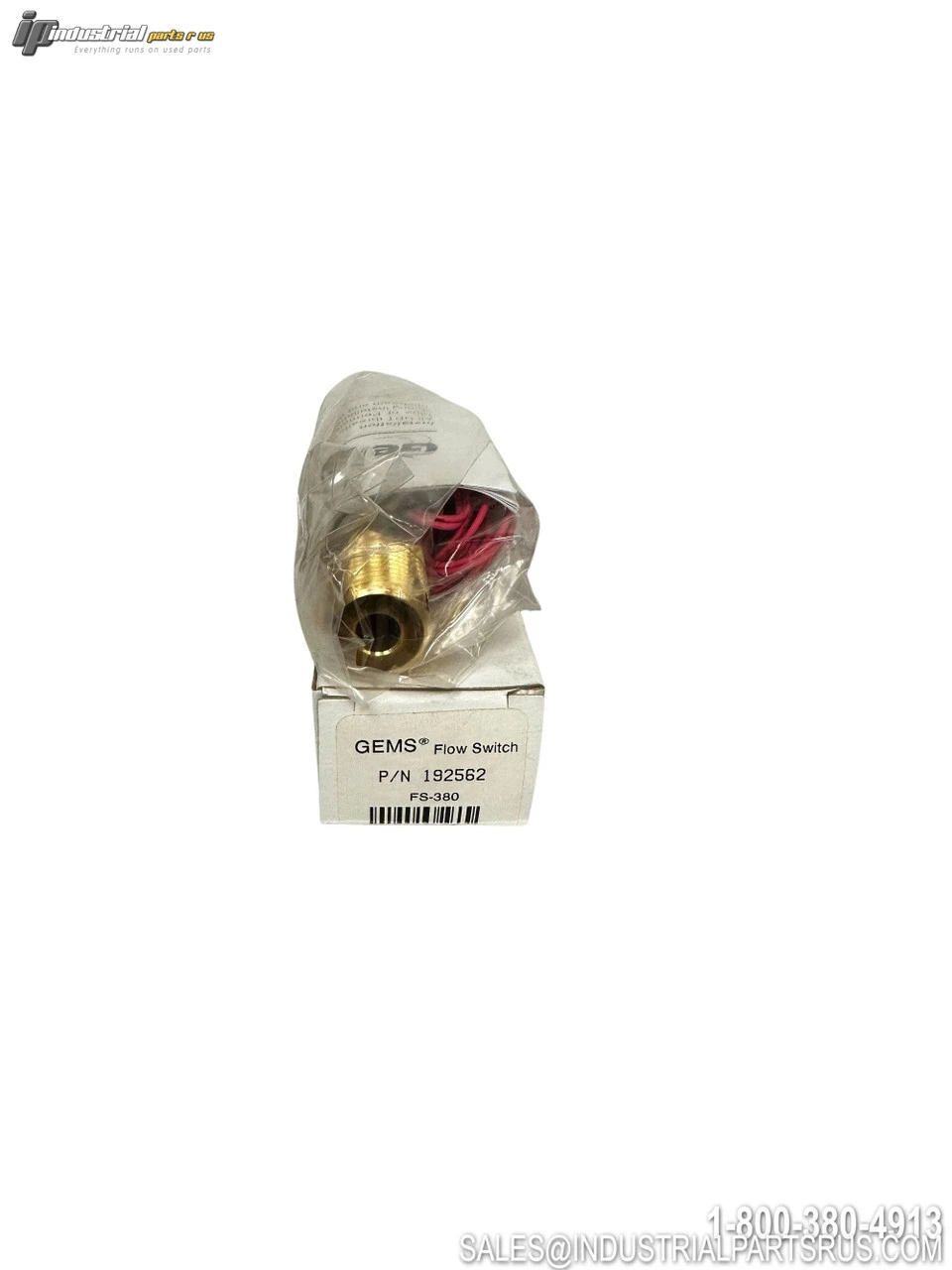

NEW GEMS 192562

The GEMS 192562 is a compact, rugged FS-380 Series inline flow switch designed for high-pressure applications requiring reliable flow detection. This piston-type flow switch features a one-piece magnetic PPS composite piston and brass construction, making it ideal for industrial cleaning equipment, semiconductor cooling, and other demanding applications. The unit requires 100 micron filtration and is less susceptible to clogging than other high-pressure inline flow switches.
Specification
Value
Brand
GEMS
Model/Part Number
192562
Series
FS-380
Flow Rate Setting
0.25 GPM
Maximum Pressure
1500 PSI @ 70°F
Maximum Temperature
275°F
Minimum Temperature
-20°F
Port Size
1/2" NPT Male
Body Material
Brass
Switch Type
SPST, N.O. (20VA)
Electrical Termination
22 AWG, 24"-26" Polymeric Leads
Set Point Accuracy
±20%
Recommended Filtration
100 micron
Sensor Type
Piston Type
Certifications
UL Recognized File No. E31926, CE

SKU: AI0653
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: SPST, N.O.
Sensor Type: Piston Type
Manufacturer: Gems
Part Number: 192562
Shelf: K-59 TUB 2
Model: 192562
MPN: 192562
Type: Flow Sensor
