USED 2014 ESAB CCAB22-VLS-TC COLUMN & BOOM
Overview

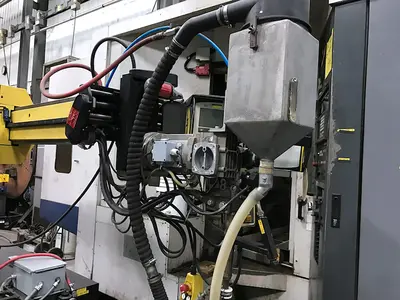

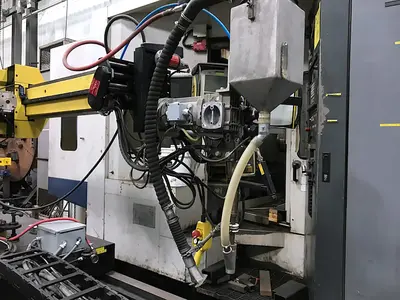

Maximize your production with this 2014 ESAB CaB22-VLS-TC Sub Arc Welding System. Engineered for high-deposition and large-scale fabrication, it is the ideal solution for heavy fabrication, pressure vessels, and thick-section welding. Perfect for turbine component manufacturing, this robust system excels at welding, cladding, and repairing large assemblies with precision and efficiency.
Specs
Boom Length: 114”
Minimum/Maximum under boom: 33.5” / 78.75”
Boom range horizontal: 78.75”
Overall Height: 124”

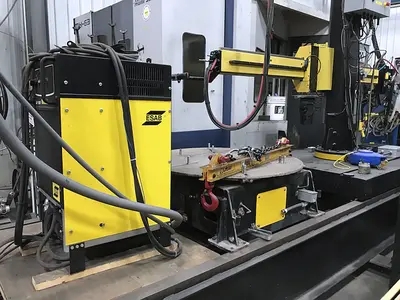

-LAF 1001 remote controlled 3-phase welding power source.

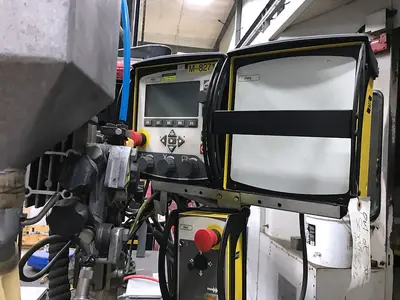

-PEK Control unit for power source for submerged arc welding

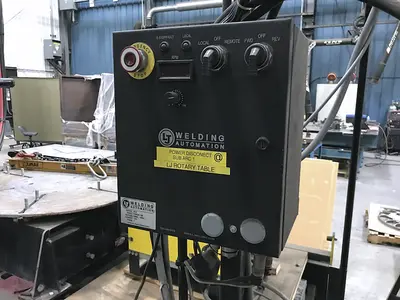

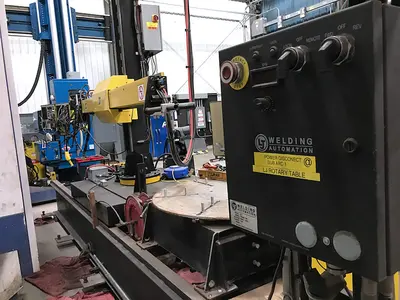

-LJ TRN20-100 Turntable
Load Capacity: 40,000 Lbs.
Table Diameter: 48”
Speed Range: 0.2 – 2 RPM
(3) Weld Engineering weld rod heaters

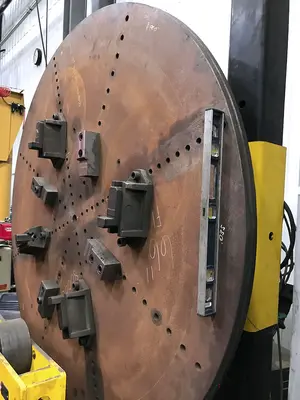

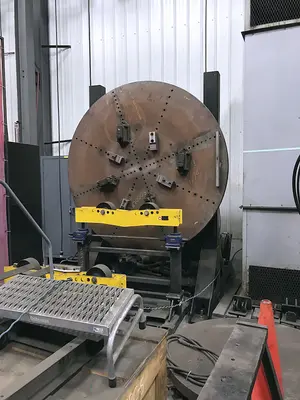

-LJ 45P Welding Positioner
Load capacity at the mounting plate: 10,000 Lbs.
Nominal turning torque: 120,000 in-Lbs.
Speed Ranges: 0.1 – 1.5 RPM
Rotation axis height range: 42” – 96” in 6” increments
Footprint: (W x D x H): 86” x 72” x 111”
Base weight: 2,100 Lbs.
Head weight: 2,900 Lbs.
UHD-200 SJ Riser Stand
Capacity: 16.000 Lbs. for 8” – 60” Pipe
Equipped With

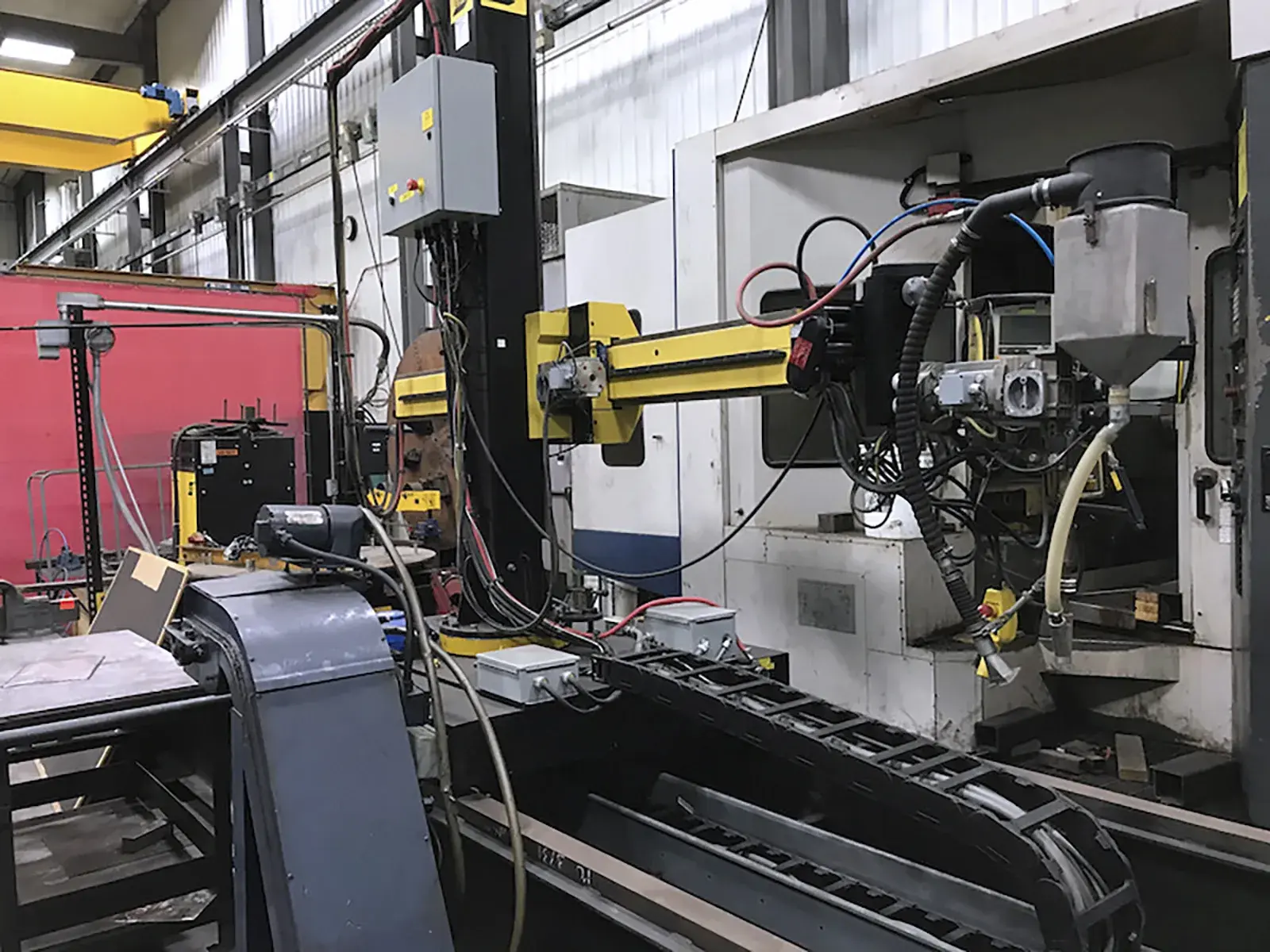

ESAB CaB22-VLS-TC Column & Boom
Rail Tracks
