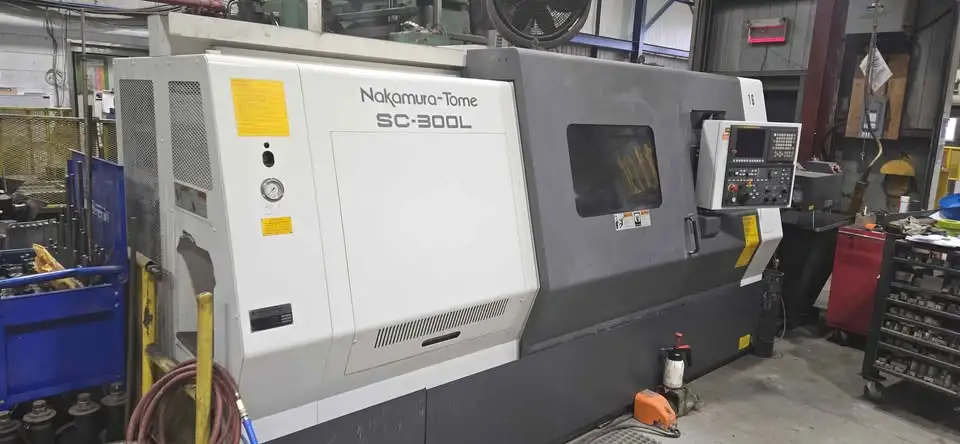

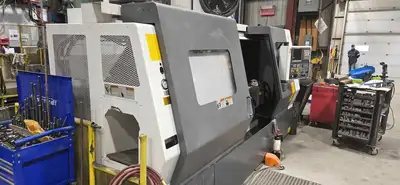

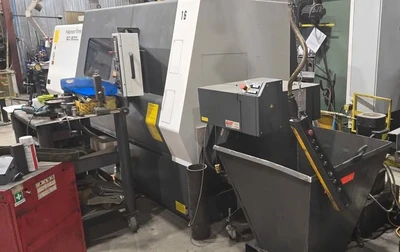

USED 2018 NAKAMURA SC300L

Manufacturer: NAKAMURA
Model: SC300L
Year: 2018
Swing: 13.7"
Turning Length: 43"
Chuck Size: 10"
Spindle Bore: 2.795"
HP: 29.5"
RPM: 3500
Control: FANUC
Price: CALL US!


NAKAMURA SC300L CNC LATHE WITH LIVE MILLING, 2018

Capacity SC-300 SC-300L

Max. turning diameter 350mm 350mm (13.77")

Max. turning length 600mm 1,100mm (43.30")

Distance between center 713.5mm 1213.5mm (47.7")

Bar capacity(mm) 71 80(op.) 89(op.) 71mm (2.795")

Chuck size 10″254mm

Axis travel SC-300 SC-300L

Slide travel X 222.5mm 222.5mm

Slide travel Z 635mm 1,135mm

Spindle SC-300 SC-300L

Spindle speed(min-1　) 3,500 2,500 3,500

spindle motor Standard 22/18.5kW

Option 30/22kW

Turret SC-300 SC-300L

Number of turrets 1

Type of turret head Dodecagonal

Number of index positions 12

Driven tools（op.） SC-300 SC-300L

Spindle speed 3,600min-1

Driven motor power 5.5/3.7kW

Rotary system Individual rotation

Number of driven-tool stations 12

Tailstock(op.） SC-300 SC-300L

Quill diameter/Quill stroke 90mm/100mm

Quill taper MT-5

（Rotating center） MT-4

（built-in center）

Sub spindle（op.） SC-300 SC-300L

Chuck size/Bar capacity 8″215mm/51mm

Spindle speed 3,500min-1

Spindle motor 11/7.5kW

Distance between spindle nose max/min max.810mm/min.310mm

General SC-300 SC-300L


Floor space （L×W×H）3,702mm×1,735mm

×1,950mm


Machine weight 5,500 kg


LOW HOURS


***VIDEO AVAILABLE***
