USED H. CEGIELSKI GRV 554

Manufacturer: H. CEGIELSKI
Model: GRV 554
Year: *
Arm Length: 82"
Drill Cap.: 3.93"
Column Dia.: 20"
Motor: *
Price: CALL US!

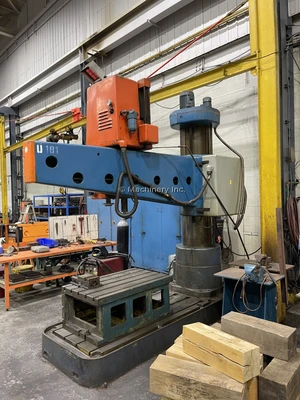

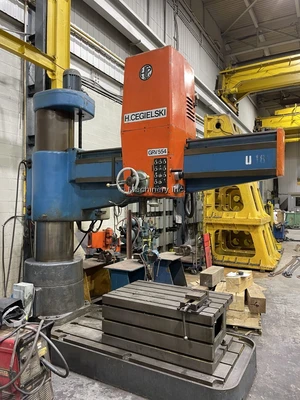

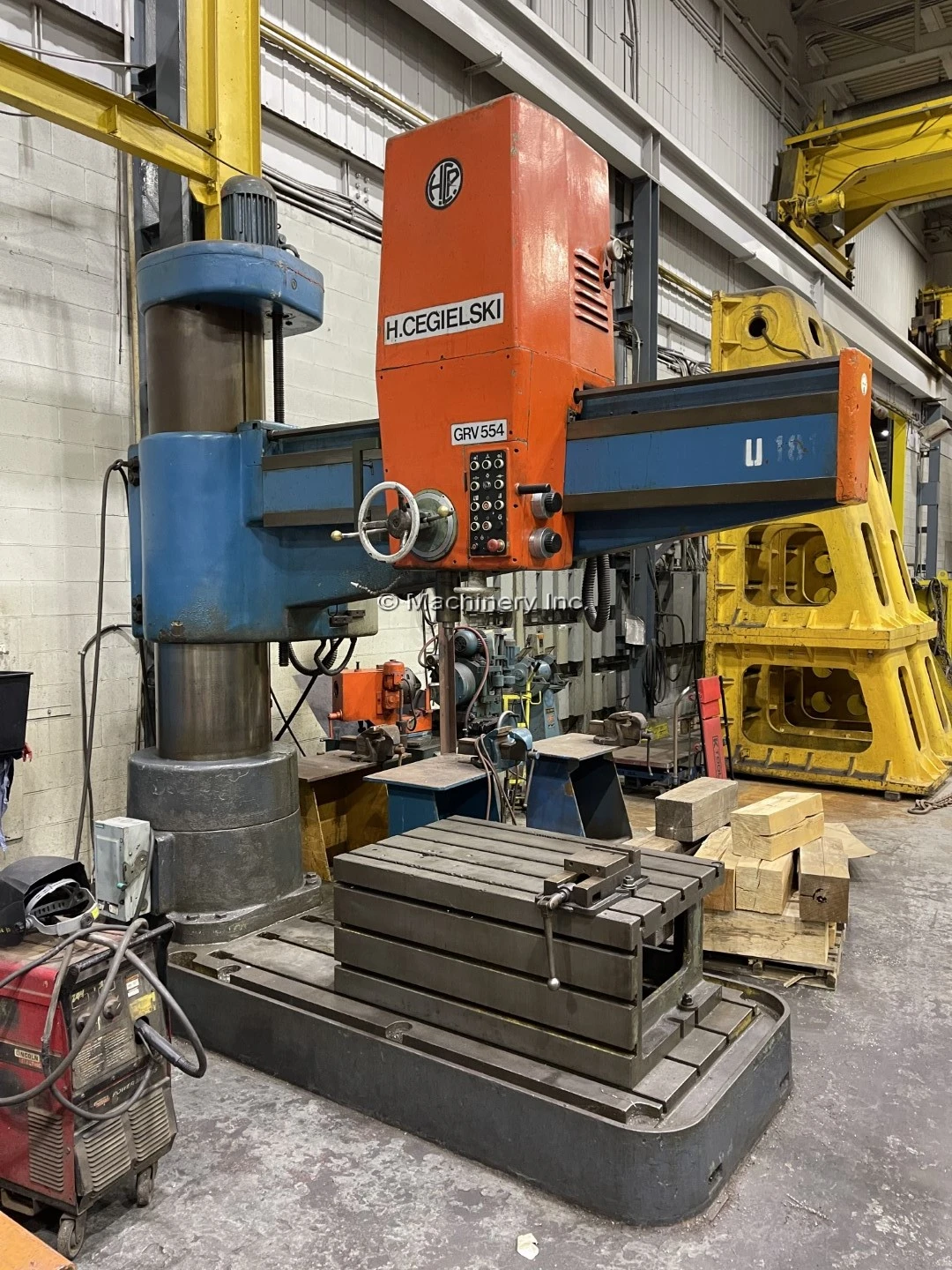

H. CEGIELSKI GRV 554 RADIAL DRILL


Bore capacity in steel (diameter) 100 mm

Arm length 400 - 2100 mm

Drilling spindle travel horizontal 1.700mm

Cantilever adjustment vertical 100 mm

Spindle taper mt 50

Drill depth 415 mm

Spindle stroke 400 (Skala) mm

Column turnable 360 °

Column diameter Ø 500 mm

Distance drilling head - clamping area min./max.: 400 / 1.800 mm

Number of spindle speeds 12,5 ... 1.600 / 15 step U/min

Feed 0,063 ... 2,5 / 15 step mm/U

Table clamping surface L x B: 2.000 x B: 950 mm

Total power requirement ca. 35 kW

Weight of the machine ca. o. Würfel = 8,0 t

Dimension machine approx.lxwxh 3,40 x 1,16 x 3,51 m
