Manufacturer: CINCINNATI GILBERT
Model: *
Year: *
Spindle Dia.: 5.375"
X-Axis: 180"
Y-Axis: 96"
Table Size: 60" x 180"
RPM: 1000
Motor: 30 HP
Control: HEIDENHAIN
Price: CALL US!

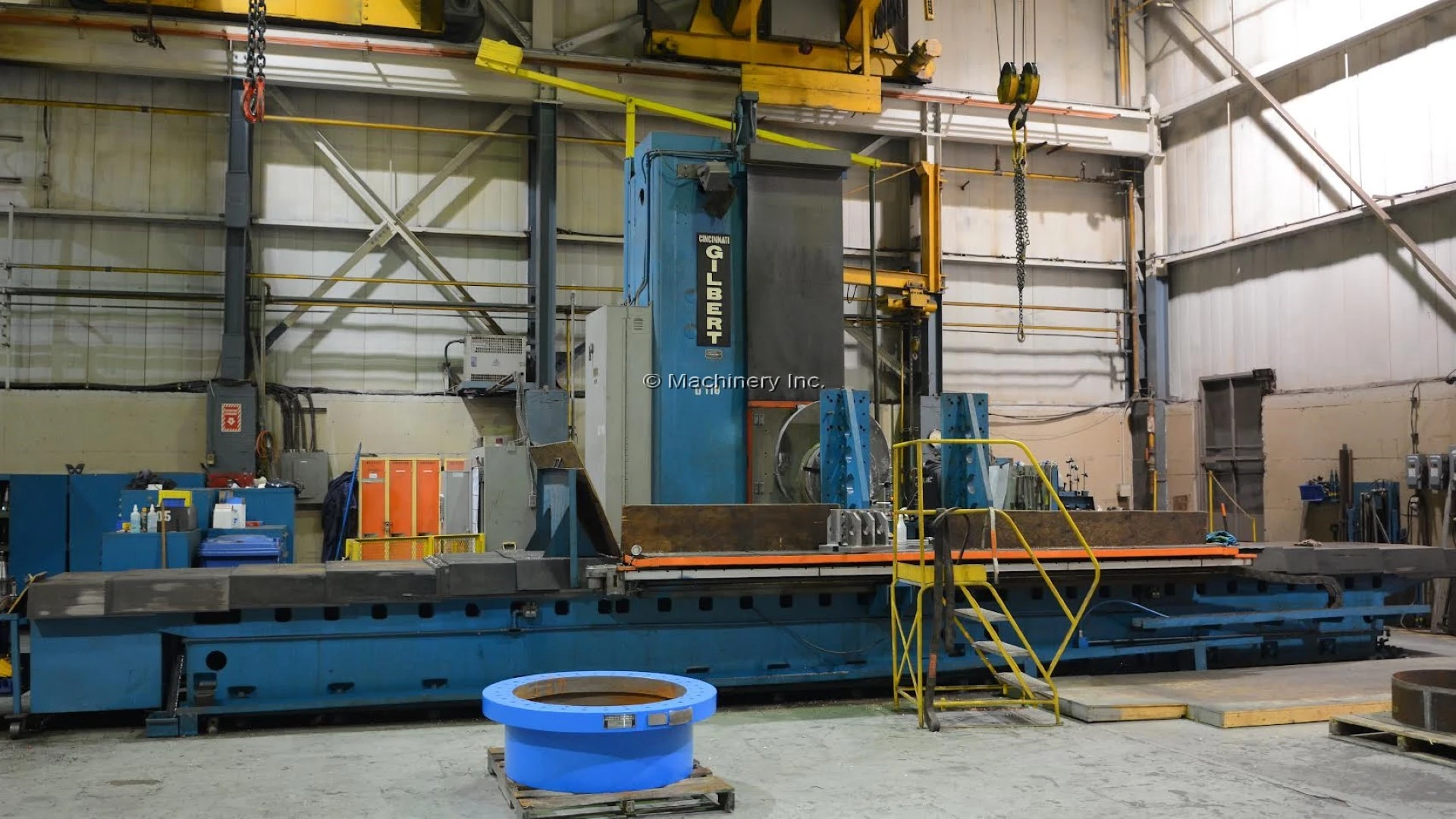

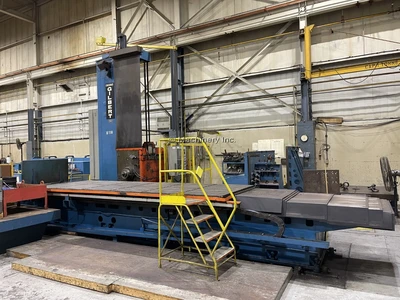

5.375" CINCINNATI GILBERT JM MACROCENTER CNC TABLE TYPE HORIZONTAL BORING MILL

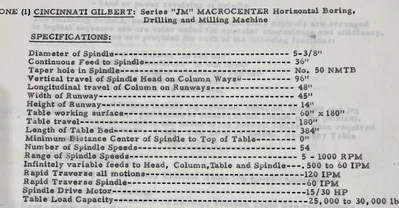

MANUFACTURER: CINCINNATI GILBERT
MODEL: JM MACROCENTER
YEAR: NEW CONTROL RETROFIT APPROX YEAR 2000

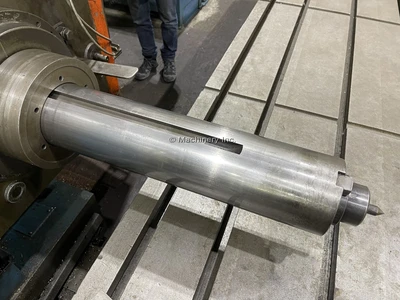

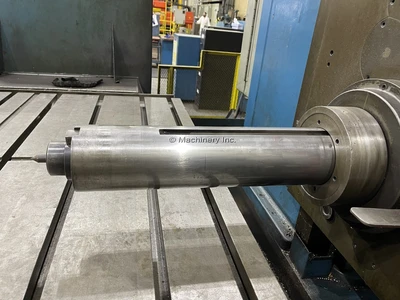

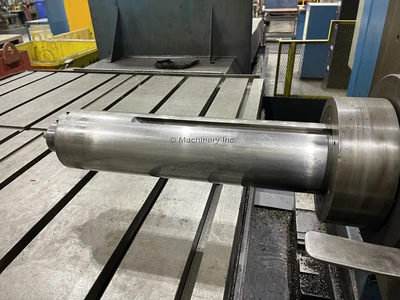

SPINDLE DIAMETER 5-3/8"
Taper hole in Spindle No. 50
Range of Spindle Speed 5 - 1000 RPM
Spindle Drive Motor 15/30 HP
Table working surface 60" x 180"
Table Load Capacity 25,000 to 30, 000 LBS
X-Table travel 180"
Length of Table Bed 384"
Z-Spindle travel: 36"

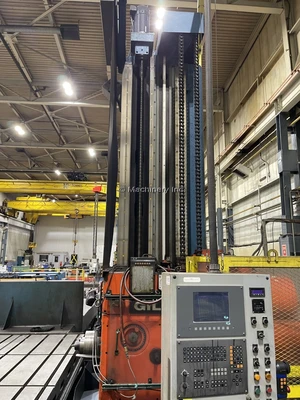

Y- Vertical travel of Spindle Head on Column Ways 96"
W-Longitudinal travel of Column on Runways 48"
EQUIPPED WITH:

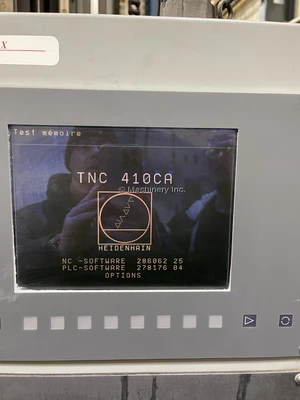

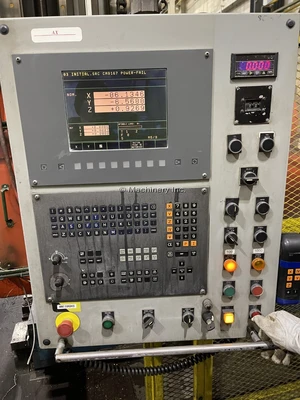

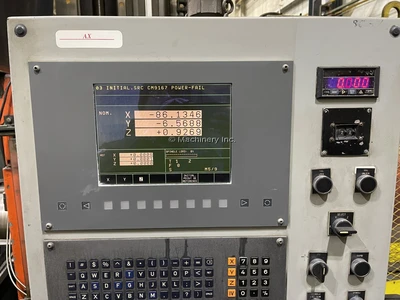

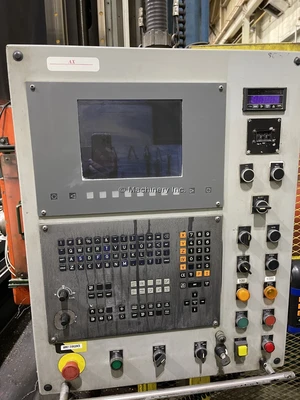

HEIDENHAIN CNC CONTROL
