USED 1977 TOSHIBSHIBAURA BT-10BR3

Manufacturer: TOSHIBA SHIBAURA
Model: BT-10BR3
Year: 1977
Spindle Dia.: 3.94"
X-Axis: 70"
Y-Axis: 57"
Table Size: 55.1" x 63"
RPM: 1000
Motor: 14.75 HP
Includes: RIGHT ANGLE HEAD
Price: CALL US!

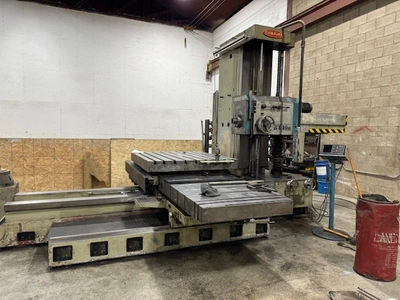

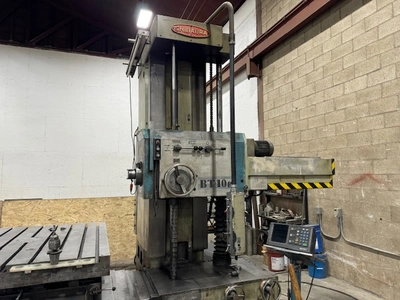

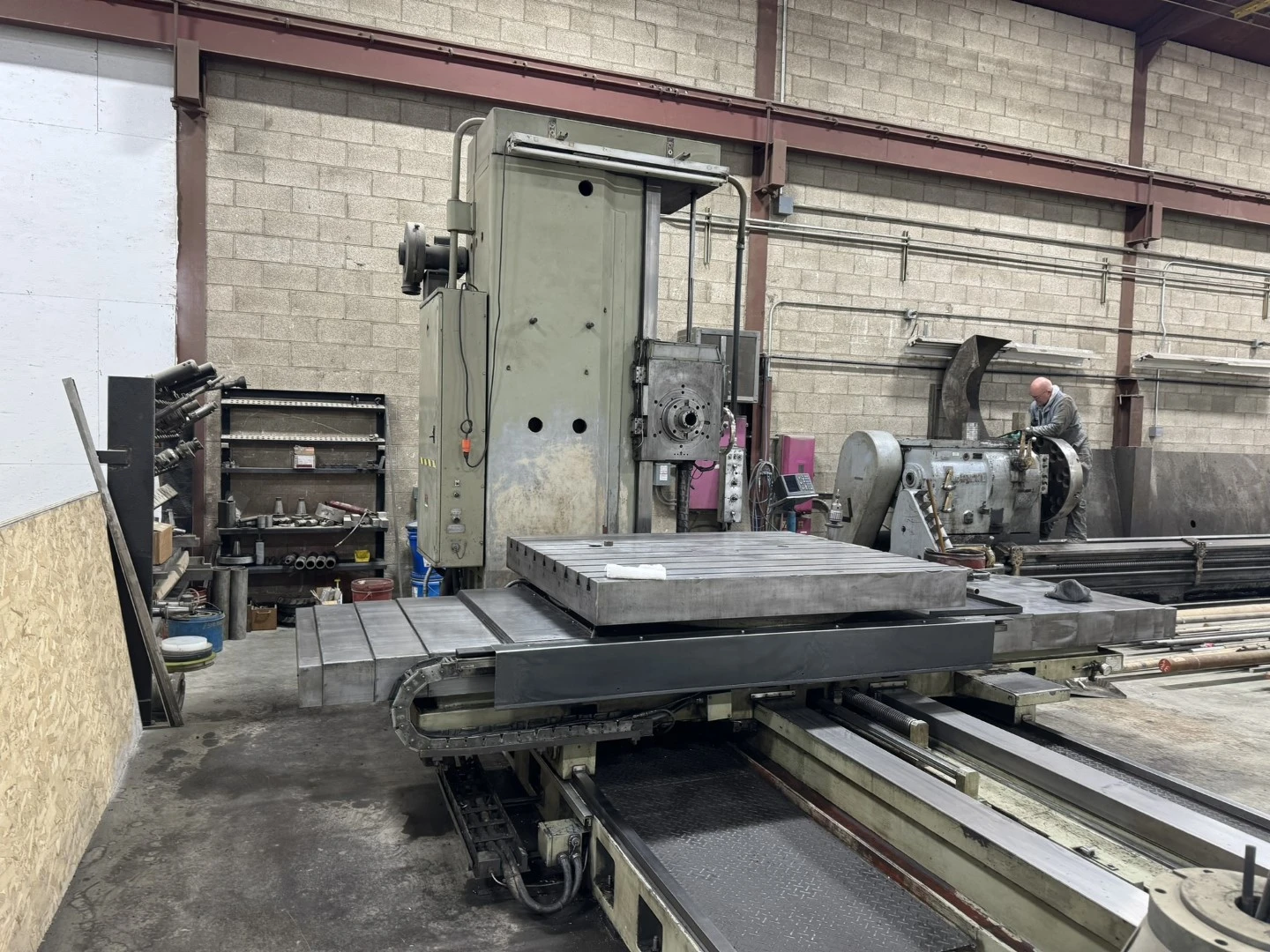

TOSHIBA SHIBAURA BT-10BR3 TABLE TYPE HORIZONTAL BORING MILL, 1977

MANUFACTURER: TOSHIBA SHIBAURA

MODEL: BT-10BR3

YEAR: 1977

Diameter of spindle: 3.94"

Taper in spindle: #50

Diameter of milling quill: 8.86"

Spindle longitudinal travel: 28"

Headstock vertical travel: 57"

Rotary table working surface: 55.1" X 63"

Table cross travel: 70.9"

Table load: 13,890 LBS.

Table longitudinal travel: 57.1"

Rapid traverse rate: 126 IPM

Spindle speeds (16): 20 TO 1000 RPM

High spindle speed range: .0009 - .15 IPR

Low spindle speed range: .0040 - .67 IPR

Approx. weight: 40,800 LBS

Dimensions: 213"F-B x 157"W X 130"H


EQUIPPED WITH:

POWER DRAW BAR

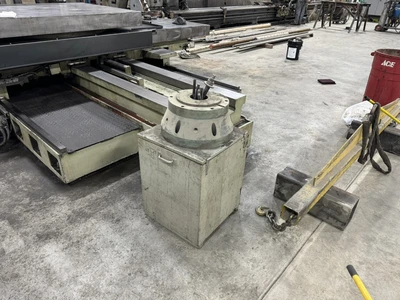

RIGHT ANGLE HEAD

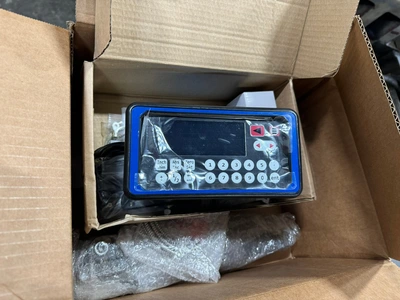

NEW DRO FOR SPINDLE

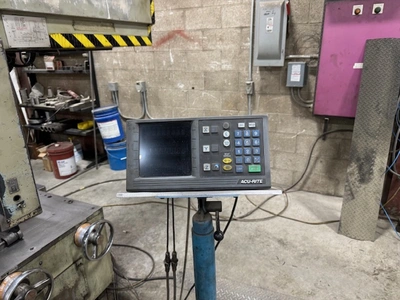

XYZ ACU-RITE DRO



11 kw 230/460 Volt Electrics


INSPECT UNDER POWER!
