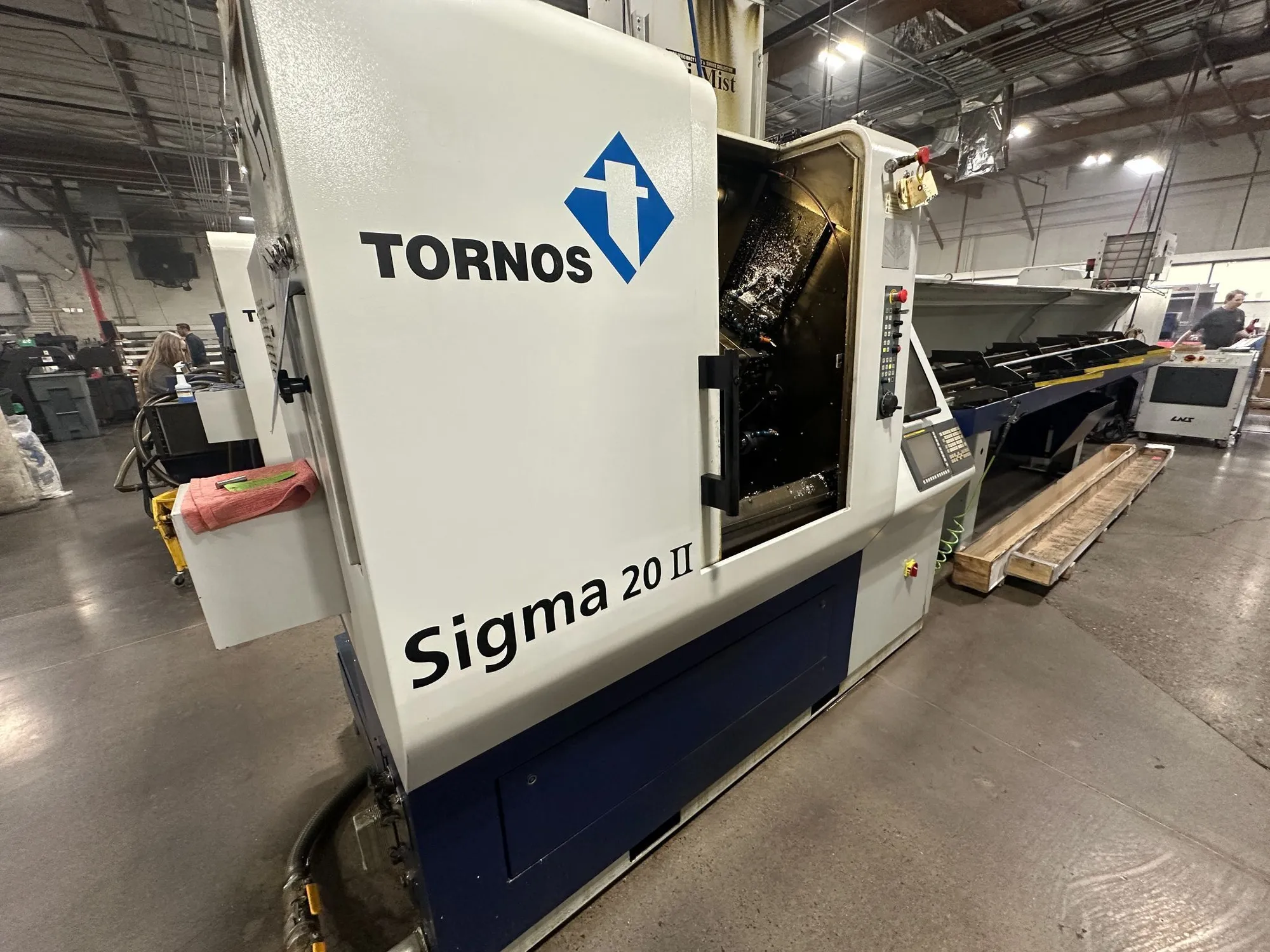

Tornos Deco Sigma 20 II CNC Swiss Lathe, New in 2011
| Capacity | 1" | 25.4 mm |
| Power | 7.3 hp | 5.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 6 | 6 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Fanuc 31iA) | CNC (Fanuc 31iA) |
| Dimensions | 94.5" x 54.5" x 80.8" | 94.5" x 54.5" x 80.8" |
| Weight | 6,613 lbs | 6,613 lbs |
General Specifications:
Number of Axes: 6
Z1-Axis Travel: 9.06"
Bar Capacity: 1"
Main Spindle Speed: 10,000 RPM
Main Spindle Power: 7.3 HP
Clamping Collets: F20, F25, F30
Number of Tools for Main Operation: 14
Speed of S11 Rotating Tools: 10,000 RPM
Number of Radial Rotating Tools: 4
Number of Axial Rotating Tools: 4
Clamping Range of the Sub-Spindle: 1"
Sub-Spindle Speed: 10,000 RPM
Sub-Spindle Power: 7.3 HP
Clamping Collets: F20, F25, F30
Number of Tools for Sub-Spindle Operations: 8
Speed of S41 Rotating Tools (Optional): 10,000 RPM
Rotating Tool Section: 0.63" x 0.63"
Number of Radial Rotating Tools: 4
Number of Axial Rotating Tools: 4
Rapid Traverse Rate (All Axes): 1,181 IPM
Machine Dimensions: 94.5" x 54.5" x 80.8"
Machine Weight: 6,613 lbs
Fanuc 31iA CNC Control
2012 Robobar SBF-532 Magazine Barfeed
LNS Turbo HB Chip Conveyor
LNS High Pressure Coolant System
Tri-Mist 1000 Mist Collector
Thread Whirling
Fire Suppression
Parts Catcher
