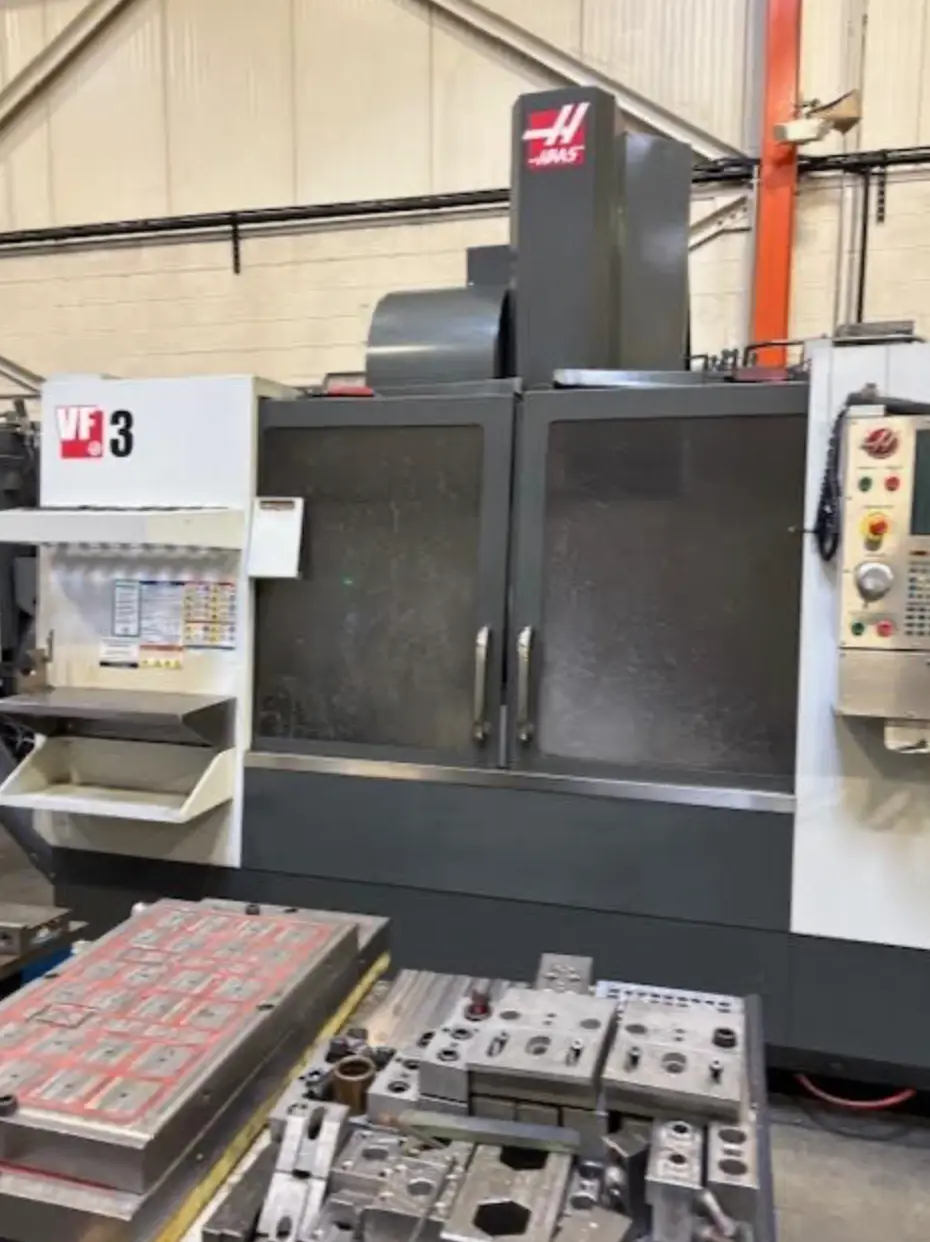

Used Vertical Machining Center. Features 40"x20"x25" travel, 20 hp, 15,000 RPM, CAT 40, 24+1 ATC. Includes HAAS CNC control, high-speed machining, rigid tapping, and more.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Table Size 48″ X 18″
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4″ – 29″
X – Axis Travel 40″
Y – Axis Travel 20″
Z – Axis Travel 25″
Spindle Nose CAT # 40
Spindle Speed 15,000 RPM
Main Motor 20 HP
Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 24 + 1 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5″
Machine Weight 12,500 LBS.
1MB MEMORY
HAAS CNC 32-BIT CONTROL
HAAS INTUITIVE PROGRAMMING SYSTEM
HIGH SPEED MACHINING
MACROS
RIGID TAPPING
ROTATIONAL & SCALING
SOFTWARE VERSION M17.03A
TOOL LIFE MANAGEMENT
CHIP AUGER WITH CHIP CHUTE
